LNBP8-LNBP9

Pin configuration

3/13

1

Pin configuration

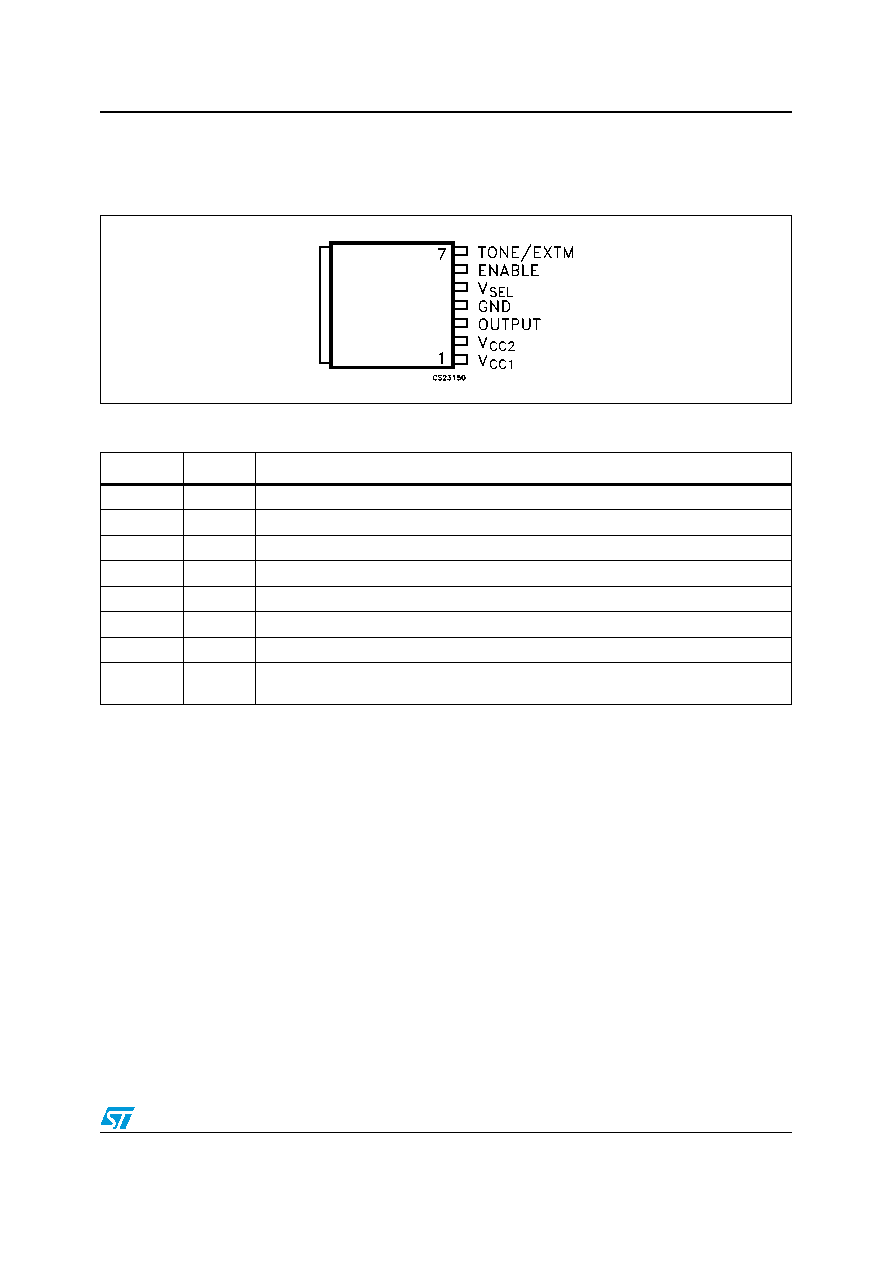

Figure 1.

Pin connections (top view)

Table 1.

Pin descriptions

Pin N°

Name

function

3

OUTPUT

4

GND

GROUND

6

ENABLE

Logic Control Input; force LOW to put the IC in shutdown

7 (LNBP9)

TONE

Logic Control Input; force HIGH to activate the internal 22KHz tone

7 (LNBP8)

EXTM

External Modulation: Needs DC decoupling to the AC source. If not used can be left

floating
