BU508AW_0708 datasheet(1/11 Pages) STMICROELECTRONICS

부품명	BU508AW_0708

상세설명	High voltage NPN power transistor for standard definition CRT display

PDF	11 Pages

Scroll/Zoom	100%

제조업체	STMICROELECTRONICS [STMicroelectronics]

홈페이지	http://www.st.com

Logo

1 / 11 page

August 2007

Rev 2

1/11

11

BU508AW

High voltage NPN power transistor for standard

definition CRT display

Features

■ State-of-the-art technology:

– Diffused collector “Enhanced generation”

■ Stable performances versus operating

temperature variation

■ Low base-drive requirement

■ Tight hFE range at operating collector current

■ High ruggedness

■ TO-247 semi-insulated power package

Applications

■ Horizontal deflection output for CRT TV

■ Switch mode power supplies for CRT TV

Description

The BU508AW is manufactured using diffused

collector in planar technology adopting new and

enhanced high voltage structure for updated

performance to the horizontal deflection stage.

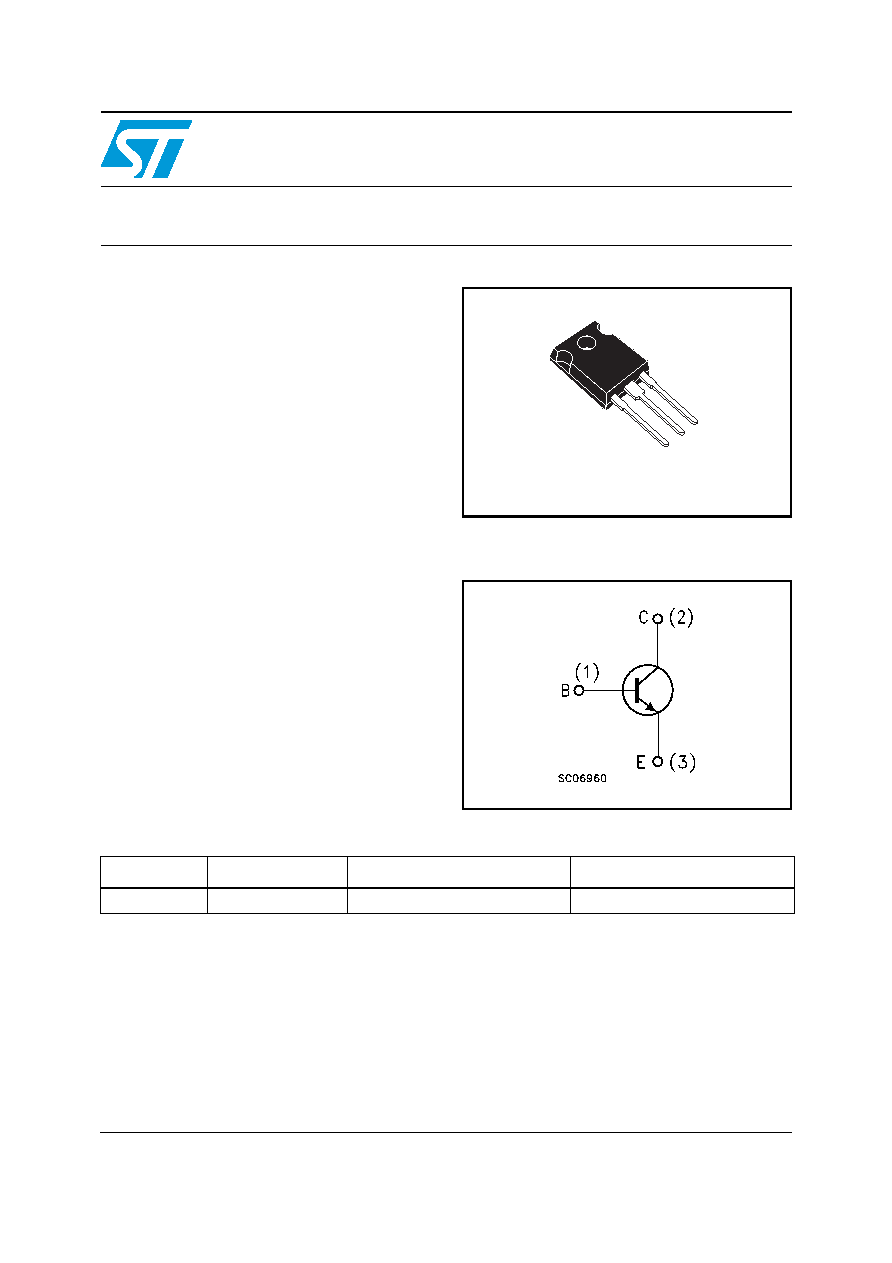

Figure 1.

Internal schematic diagram

TO-247

1

2

3

Table 1.

Device summary

Order code

Marking

Package

Packaging

BU508AW

TO-247

Tube
