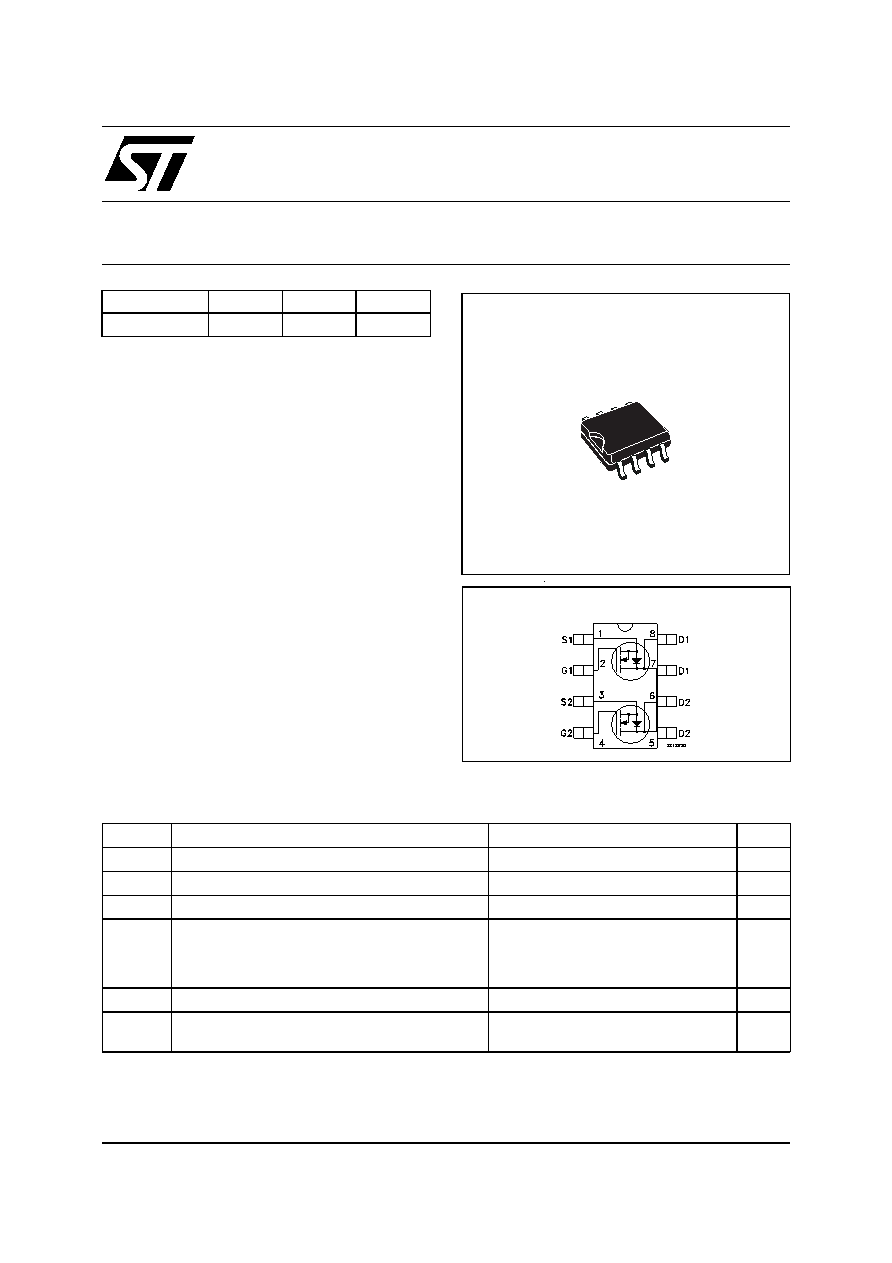

STS5DNE30L

N - CHANNEL 30V - 0.039

Ω - 5A SO-8

STripFET

™ POWER MOSFET

PRELIMINARY DATA

s

TYPICAL RDS(on) = 0.039

Ω

s

STANDARD OUTLINE FOR EASY

AUTOMATED SURFACE MOUNT ASSEMBLY

s

LOW THRESHOLD DRIVE

DESCRIPTION

This Power MOSFET is the latest development of

STMicroelectronics

unique

"

Single

Feature

Size

™ " strip-based process. The resulting

transistor shows extremely high packing density

for

low

on-resistance,

rugged

avalanche

characteristics and less critical alignment steps

therefore

a

remarkable

manufacturing

reproducibility.

APPLICATIONS

s

DC MOTOR DRIVE

s

DC-DC CONVERTERS

s

BATTERY MANAGMENT IN NOMADIC

EQUIPMENT

s

POWER MANAGEMENT IN

PORTABLE/DESKTOP PCs

®

INTERNAL SCHEMATIC DIAGRAM

December 1998

SO-8

ABSOLUTE MAXIMUM RATINGS

Symbol

Parameter

Value

Unit

VDS

Drain-source Voltage (VGS = 0)

30

V

VDGR

Drain- gate Voltage (RGS = 20 k

Ω)

30

V

VGS

Gate-source Voltage

± 20

V

ID

Drain Current (continuous) at Tc = 25

oC

Single Operation

Drain Current (continuous) at Tc = 100

oC

Single Operation

5

3.1

A

IDM(

•)

Drain Current (pulsed)

20

A

Ptot

Total Dissipation at Tc = 25

oC Dual Operation

Total Dissipation at Tc = 25

oC Sinlge Operation

2

1.6

W

(

•) Pulse width limited by safe operating area

TYPE

VDSS

RDS(on)

ID

STS5DNE30L

30 V

< 0.045

Ω

5 A

1/5
