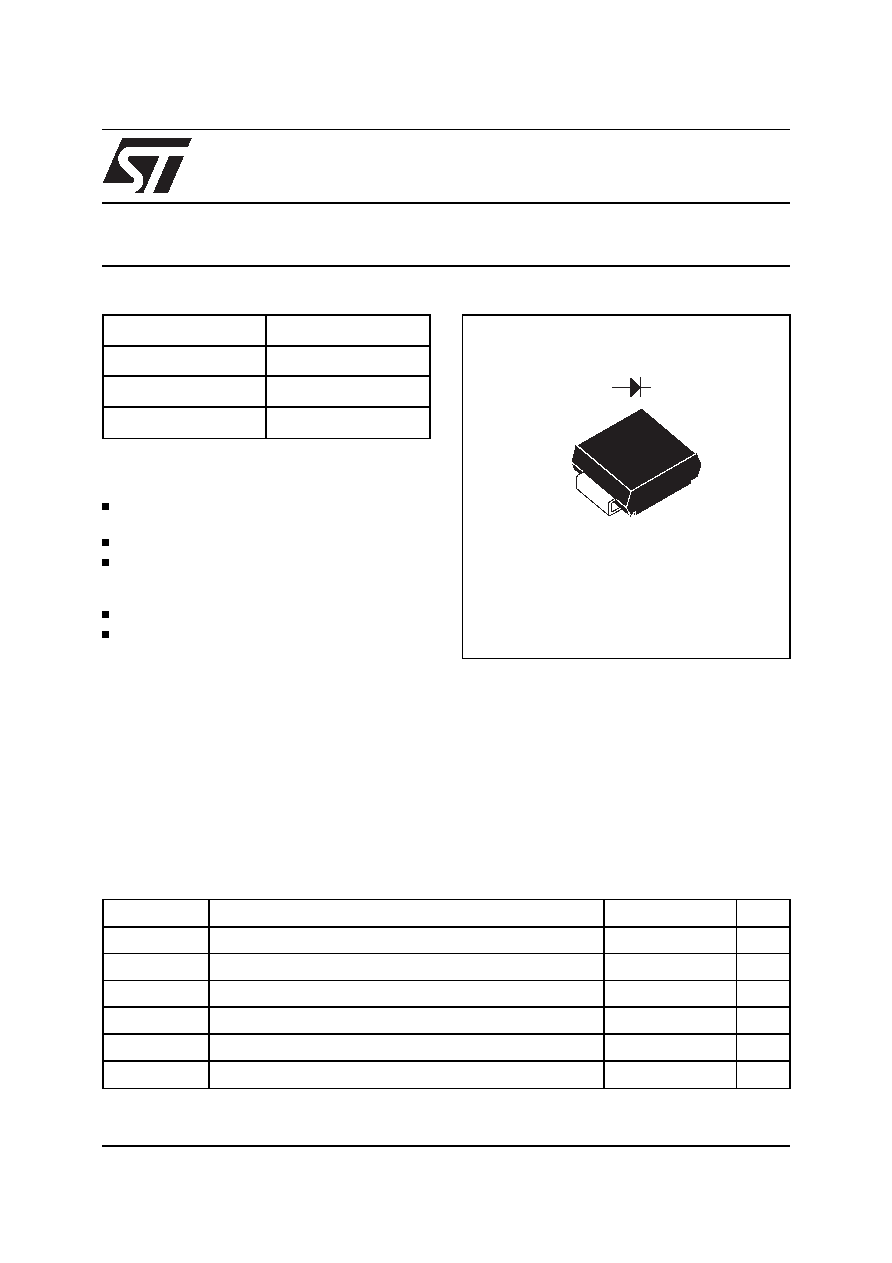

TM : TURBOSWITCH is a trademark of STMicroelectronics

November 1999 - Ed: 2D

SPECIFIC TO "FREEWHEEL MODE" OPERA-

TIONS : FREEWHEEL OR BOOSTER DIODE

ULTRA-FAST AND SOFT RECOVERY

VERY LOW OVERALL POWER LOSSES IN

BOTH THE DIODE AND THE COMPANION

TRANSISTOR

HIGH FREQUENCY OPERATIONS

SURFACE MOUNT DEVICE

FEATURES AND BENEFITS

The TURBOSWITCH is a very high performance

series of ultra-fast high voltage power diodes from

600V to 1200V.

TURBOSWITCH "A" family drastically cuts losses

in both the diode and the associated switching

IGBT or MOSFET in all "Freewheel Mode"

operations and is particulary suitable and efficient

in Motor Control Freewheel applications and in

Booster diode applications in Power Factor Control

circuitries.

Packaged in SMC surface mount envelope, these

600V devices are particularly intended for use on

240V domestic mains.

DESCRIPTION

2A

600V

20ns

1.5V

MAIN PRODUCTS CHARACTERISTICS

Symbol

Parameter

Value

Unit

Repetitive peak reverse voltage

600

V

Non repetitive peak reverse voltage

600

V

RMS forward current

8

A

Repetitive peak forward current (tp = 5

µs, f = 5kHz)

50

A

Maximum operating junction temperature

125

°C

Storage temperature range

- 65 to + 150

°C

ABSOLUTE MAXIMUM RATINGS

STTA206S

®

TURBOSWITCH

™ "A". ULTRA-FAST HIGH VOLTAGE DIODE

AK

SMC

1/8
