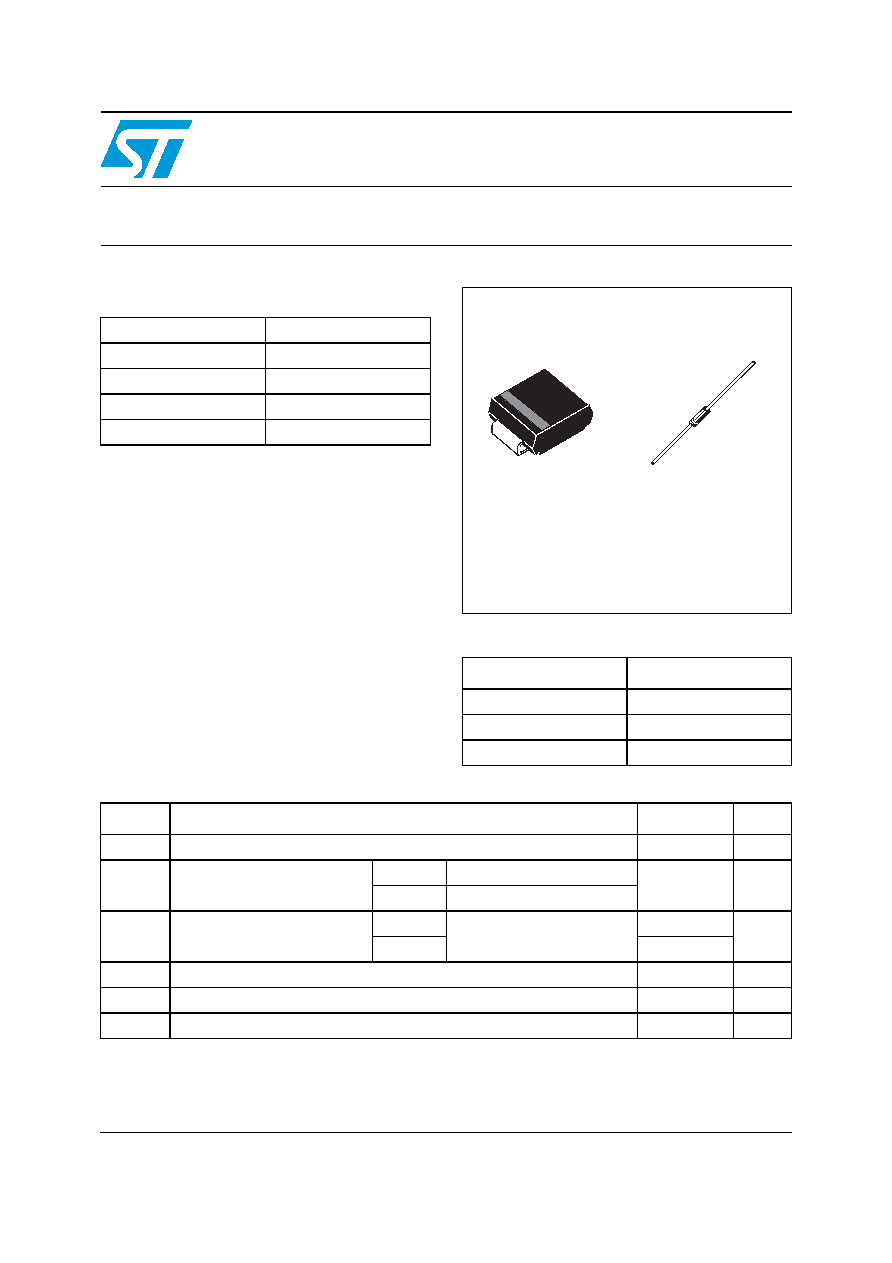

1 / 7 page

November 2006

Rev 5

1/7

7

STTH102

High efficiency ultrafast diode

Main product characteristics

Features and benefits

■ Very low conduction losses

■ Negligible switching losses

■ Low forward and reverse recovery times

■ High junction temperature

Description

The STTH102, which is using ST’s new 200 V

planar technology, is specially suited for switching

mode base drive and transistor circuits. The

device is also intended for use as a free wheeling

diode in power supplies and other power

switching applications.

Order codes

IF(AV)

1 A

VRRM

200 V

Tj (max)

175° C

VF(max)

0.78 V

trr (max)

20 ns

Part Number

Marking

STTH102A

U12

STTH102

STTH102RL

STTH102

K

A

K

A

SMA

(JEDEC DO-214AC)

STTH102A

DO-41

STTH102

Table 1.

Absolute ratings (limiting values)

Symbol

Parameter

Value

Unit

VRRM

Repetitive peak reverse voltage

200

V

IF(AV)

Average forward current

SMA

TL = 148° C δ = 0.5

1A

DO-41

TL = 130° C δ = 0.5

IFSM

Surge non repetitive forward

current

SMA

tp = 10 ms Sinusoidal

40

A

DO-41

50

Tstg

Storage temperature range

-65 to + 175

°C

Tj

Maximum operating junction temperature

175

°C

dV/dt

Critical rate of rise of reverse voltage

10000

V/µs

www.st.com
