Section 11 Programmable Pulse Generator (PPG)
Rev.1.00 Jun. 07, 2006 Page 603 of 1102
REJ09B0294-0100
11.4.8
Pulse Output Triggered by Input Capture
Pulse output can be triggered by TPU input capture as well as by compare match. If TGRA
functions as an input capture register in the TPU channel selected by PCR, pulse output will be
triggered by the input capture signal.

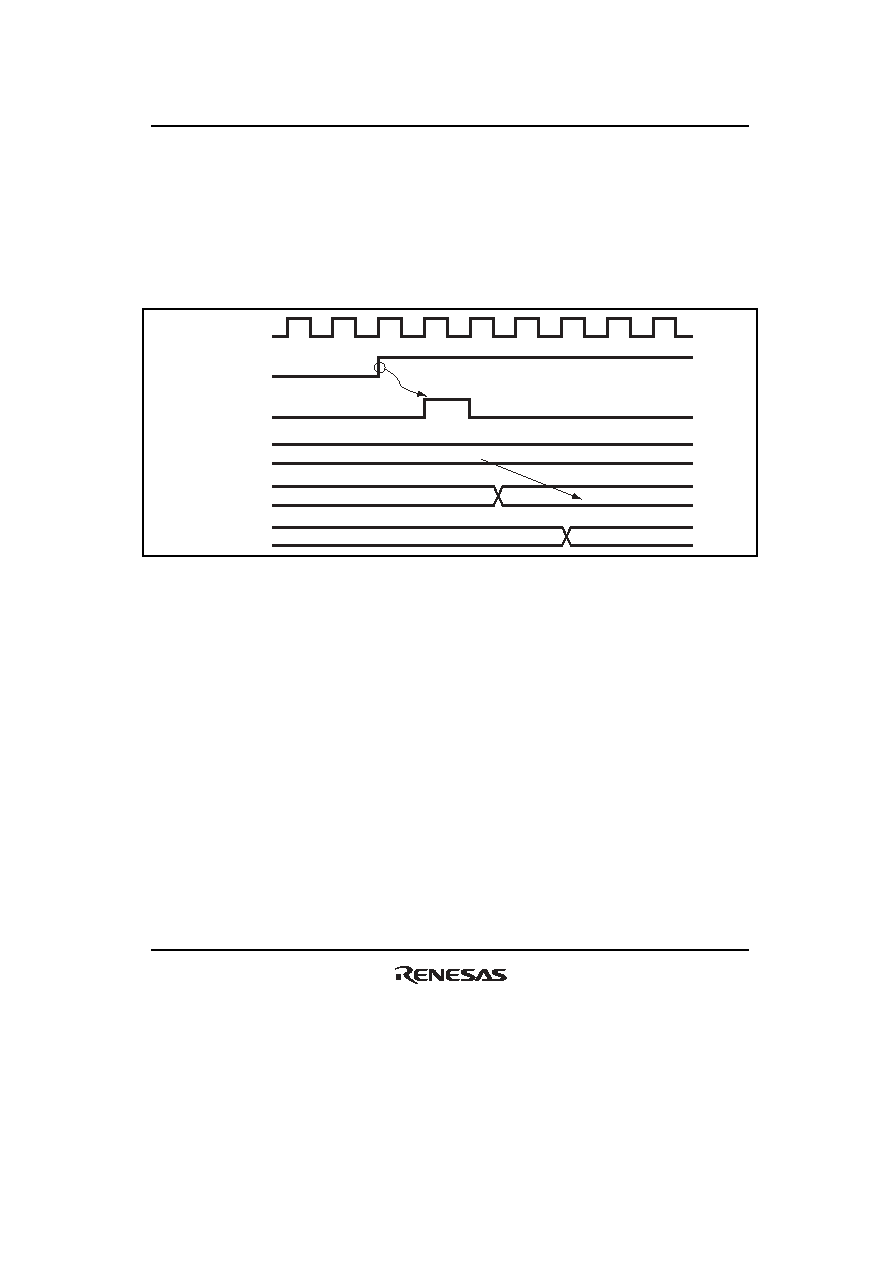

Figure 11.11 shows the timing of this output.
P
φ
N
MN
TIOC pin
Input capture
signal
NDR
PODR
MN
PO
Figure 11.11 Pulse Output Triggered by Input Capture (Example)
