Section 14 Watchdog Timer (WDT)

Rev.1.00 Jun. 07, 2006 Page 651 of 1102

REJ09B0294-0100

14.6.5

Internal Reset in Watchdog Timer Mode

This LSI is not reset internally if TCNT overflows while the RSTE bit is cleared to 0 during

watchdog timer mode operation, but TCNT and TCSR of the WDT are reset.

TCNT, TCSR, and RSTCR cannot be written to while the

WDTOVF signal is low. Also note that

a read of the WOVF flag is not recognized during this period. To clear the WOVF flag, therefore,

read TCSR after the

WDTOVF signal goes high, then write 0 to the WOVF flag.

14.6.6

System Reset by

WDTOVF Signal

If the

WDTOVF signal is input to the RES pin, this LSI will not be initialized correctly. Make

sure that the

WDTOVF signal is not input logically to the RES pin. To reset the entire system by

means of the

WDTOVF signal, use a circuit like that shown in figure 14.6.

Reset input

Reset signal to entire system

This LSI

RES

WDTOVF

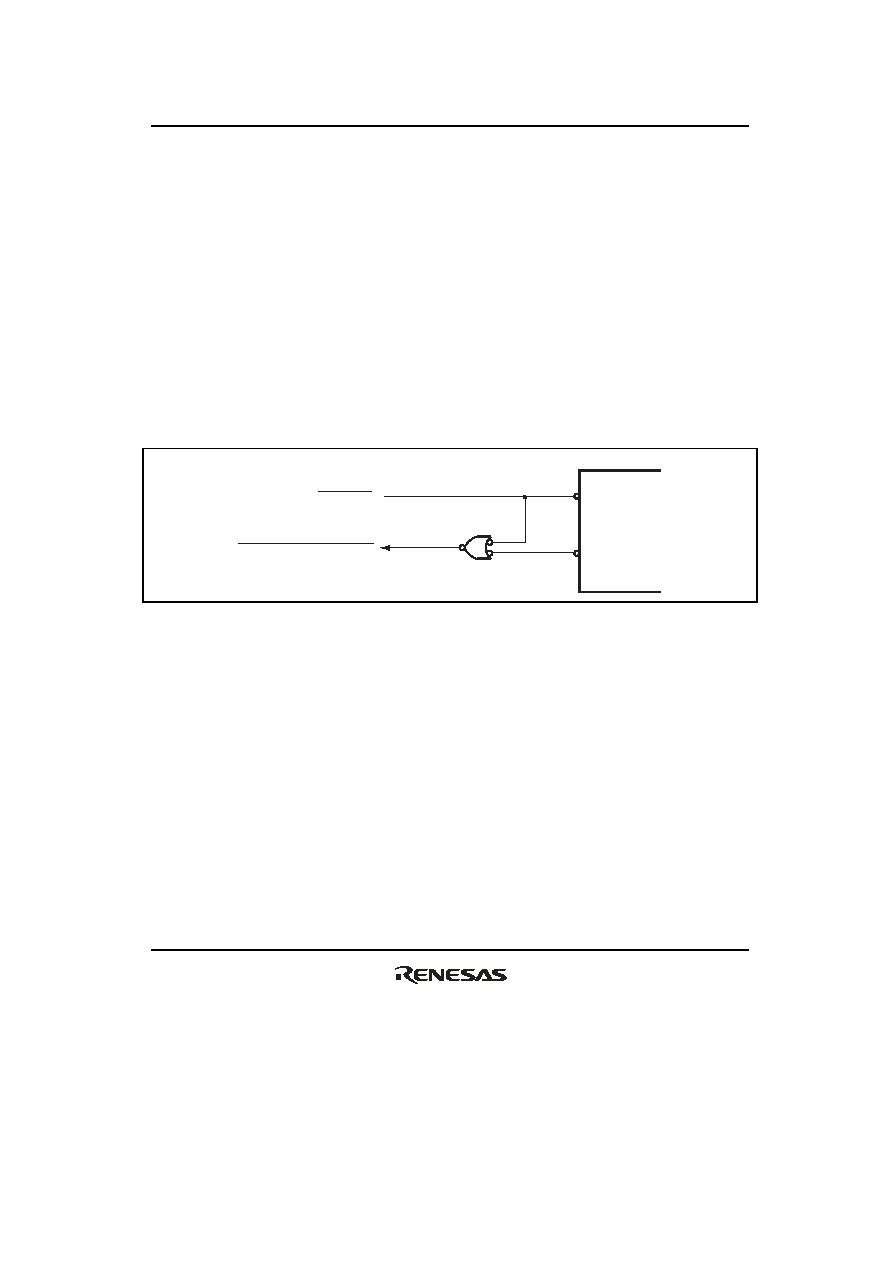

Figure 14.6 Circuit for System Reset by

WDTOVF Signal (Example)

14.6.7

Transition to Watchdog Timer Mode or Software Standby Mode

When the WDT operates in watchdog timer mode, a transition to software standby mode is not

made even when the SLEEP instruction is executed when the SSBY bit in SBYCR is set to 1.

Instead, a transition to sleep mode is made.

To transit to software standby mode, the SLEEP instruction must be executed after halting the

WDT (clearing the TME bit to 0).

When the WDT operates in interval timer mode, a transition to software standby mode is made

through execution of the SLEEP instruction when the SSBY bit in SBYCR is set to 1.
