Section 18 A/D Converter
Rev.1.00 Jun. 07, 2006 Page 862 of 1102
REJ09B0294-0100
111
110
101
100
011
010
001
000
1
1024
2
1024
1022
1024
1023
1024
FS
Quantization error
Digital output
Ideal A/D conversion
characteristic
Analog
input voltage

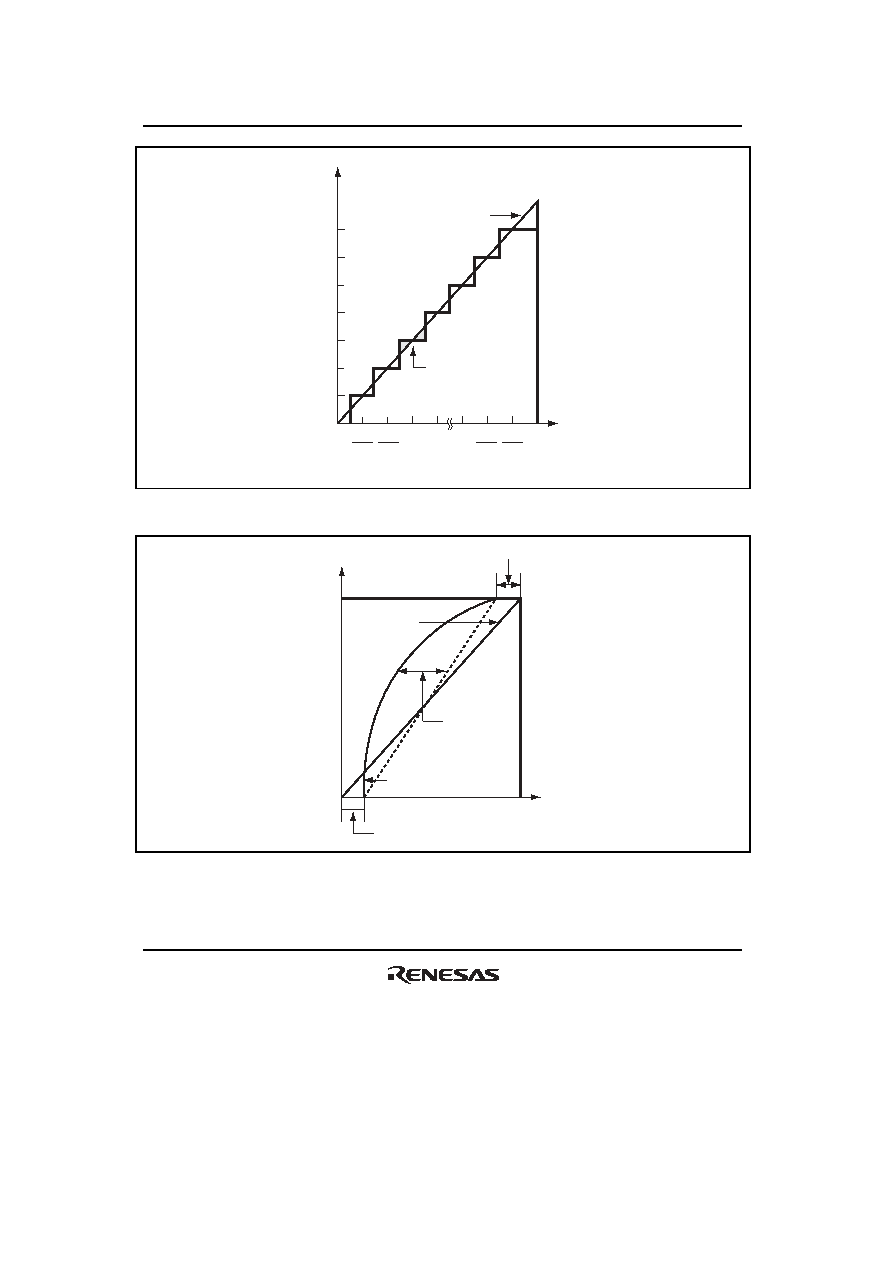

Figure 18.6 A/D Conversion Accuracy Definitions
FS
Digital output
Ideal A/D conversion
characteristic
Nonlinearity
error
Analog
input voltage
Offset error
Actual A/D conversion
characteristic
Full-scale error
Figure 18.7 A/D Conversion Accuracy Definitions
