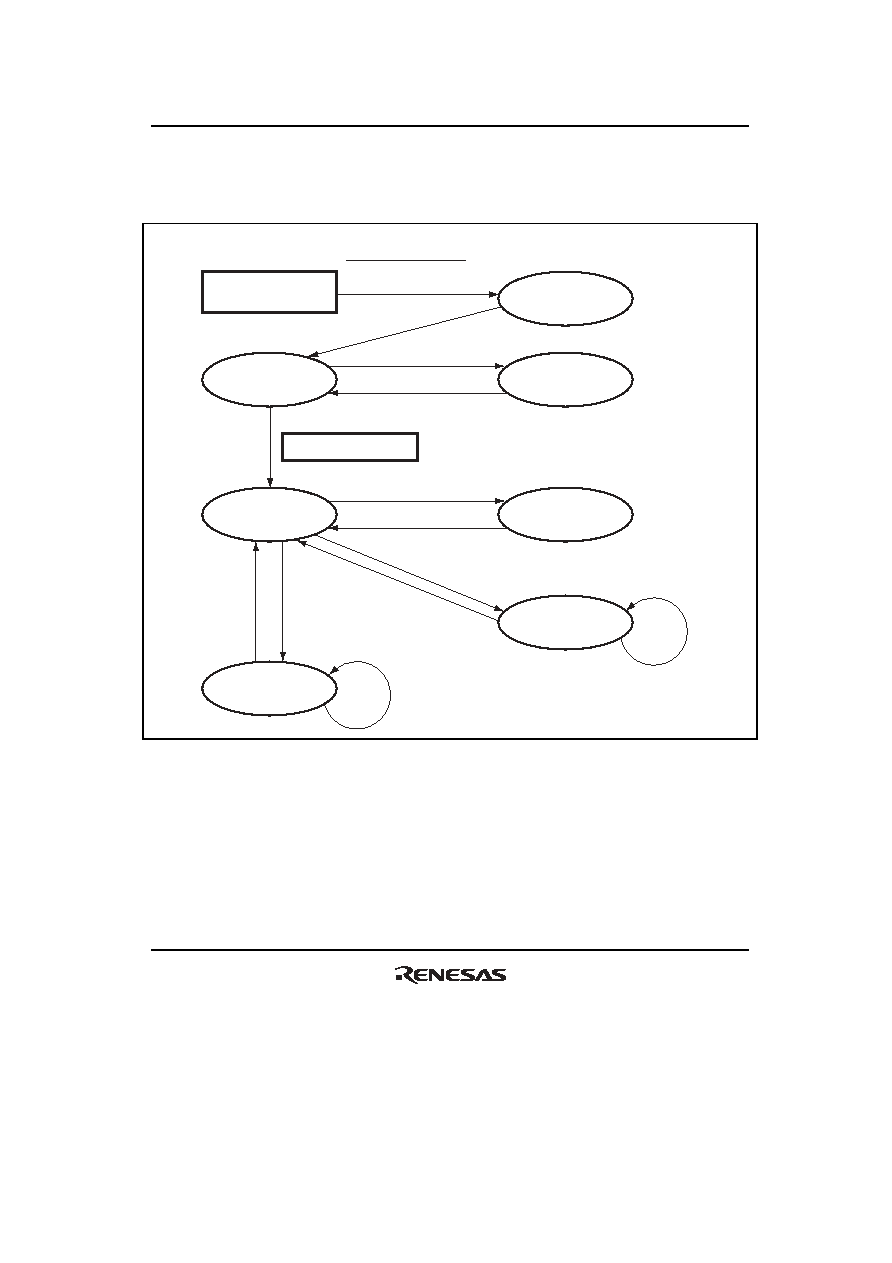

957 / 1158 page  Section 21 Flash Memory (0.18- µm F-ZTAT Version) Rev.1.00 Jun. 07, 2006 Page 905 of 1102 REJ09B0294-0100 (2) State Transition Diagram The state transition after SCI boot mode is initiated is shown in figure 21.8. Bit rate adjustment H'00, ..., H'00 reception H'00 transmission (adjustment completed) (Bit rate adjustment) Boot mode initiation (reset by boot mode) All user MAT erasure Inquiry command reception Inquiry command response H'55 reception Processing of inquiry setting command Wait for inquiry setting command Read/check command reception Command response (Programming completion) (Program selection command reception) (Erasure completi on) (Erasure se lec tion command recepti on) (Program data transmission) Processing of read/check command Wait for inquiry programming/erasing command Wait for inquiry programming/erasing command Wait for inquiry programming/erasing command 1. 2. 3. 4. (Erase-block specification) Figure 21.8 SCI Boot Mode State Transition Diagram |
|
