H8SX/1663 데이터시트(PDF) 1015 Page - Renesas Technology Corp |
|
|
|||||||||||||||||||||||||||||
H8SX/1663 데이터시트(HTML) 1015 Page - Renesas Technology Corp |
|
|

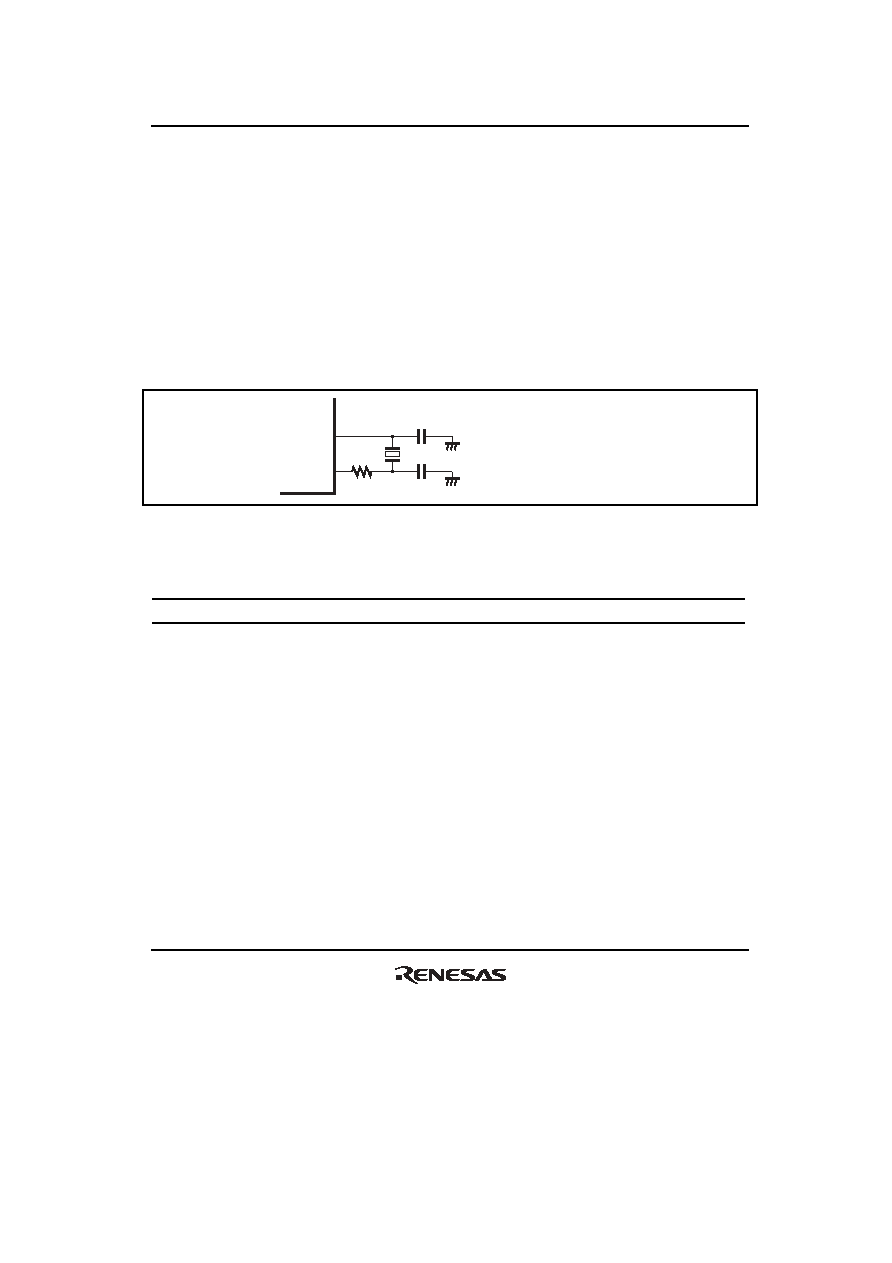

1015 / 1158 page  Section 22 Clock Pulse Generator Rev.1.00 Jun. 07, 2006 Page 963 of 1102 REJ09B0294-0100 22.2 Oscillator Clock pulses can be supplied by connecting a crystal resonator, or by input of an external clock. 22.2.1 Connecting Crystal Resonator A crystal resonator can be connected as the example in figure 22.2. Select the damping resistance R d according to table 22.2. An AT-cut parallel-resonance type should be used. When providing the clock from the crystal resonator, the frequency should be in the range of 8 to 18 MHz. EXTAL XTAL Rd CL2 CL1 CL1 = CL2 = 10 pF to 22 pF Figure 22.2 Connection of Crystal Resonator (Example) Table 22.2 Damping Resistance Value Frequency (MHz) 8 12 16 18 R d (Ω) 200 0 0 0 |
|
