Section 6 Bus Controller (BSC)
Rev.1.00 Jun. 07, 2006 Page 220 of 1102
REJ09B0294-0100
6.9.5
Basic Timing
The bus cycle in the address/data multiplexed I/O interface consists of an address cycle and a data
cycle. The data cycle is based on the basic bus interface timing specified by the ABWCR,
ASTCR, WTCRA, WTCRB, RDNCR, and CSACR.
Figures 6.31 and 6.32 show the basic access timings.
T
ma1
T
ma2
T
2
T
1
B
φ
Address bus
D7 to D0
D7 to D0
Address cycle
Data cycle
CSn
LLWR
AH
RD
DACK
BS
RD/
WR
Note: n = 3 to 7
Address
Read data
Address
Write data
Read
Write

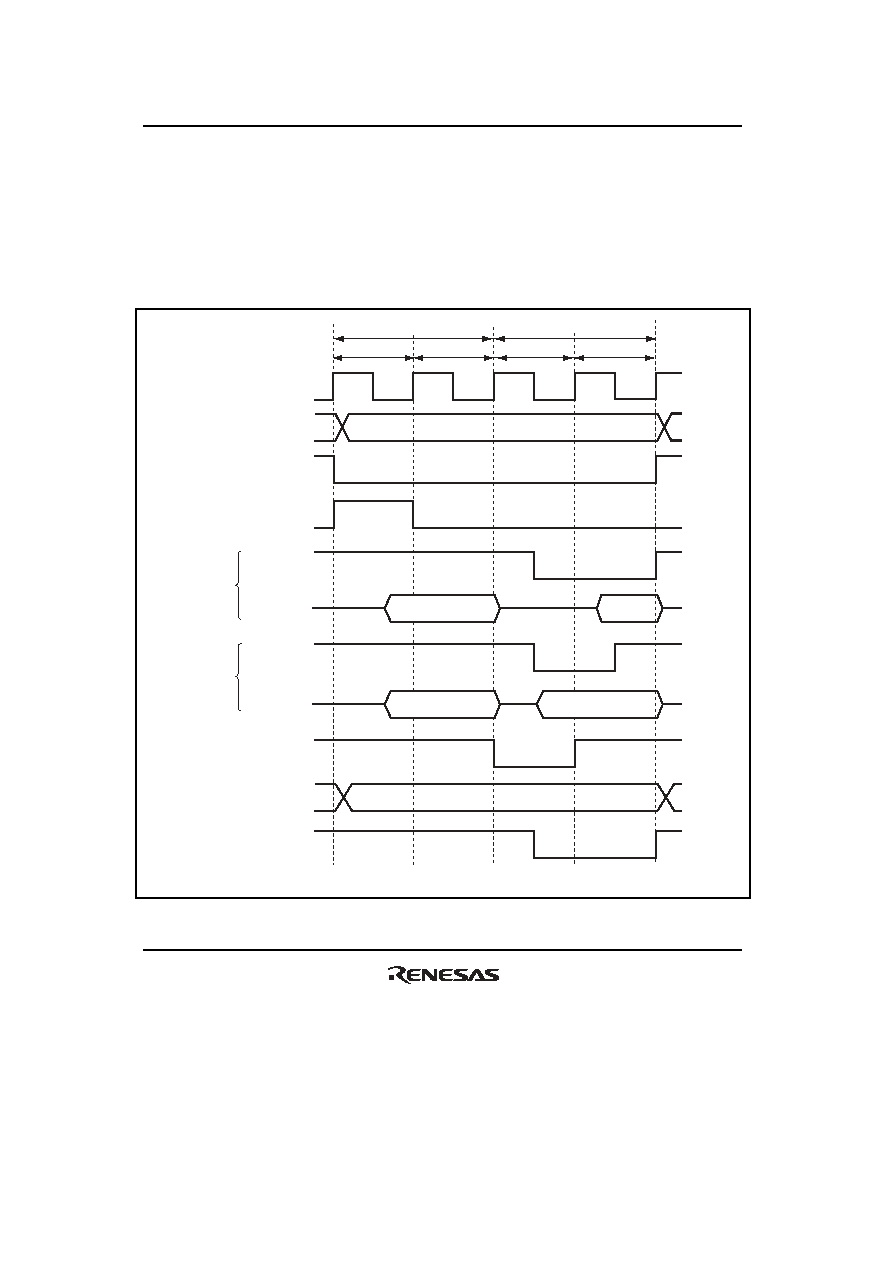

Figure 6.31 8-Bit Access Space Access Timing (ABWHn = 1, ABWLn = 1)
