TDA7300

DIGITAL CONTROLLED STEREO AUDIO PROCESSOR

SINGLE SUPPLY OPERATION

FOUR STEREO INPUT SOURCE SELEC-

TION

MONO INPUT

TREBLE, BASS, VOLUME, AND BALANCE

CONTROL

FOUR INDEPENDENT SPEAKER CONTROL

(FRONT/REAR)

SINGLE SUPPLY OPERATION

ALL FUNCTIONS PROGRAMMABLE VIA SE-

RIAL BUS

VERY LOW NOISE AND VERY LOW DIS-

TORTION

POP FREE SWITCHING

DESCRIPTION

The TDA7300 is a volume, tone (bass and treble),

balance (left/right) and fader (front/rear) proces-

sor for high quality audio applications in car radio

and Hi-Fi systems.

Control is accomplished by serial bus microproc-

essor interface.

The AC signal setting is obtained by resistor net-

works and analog switches combined with opera-

tional amplifiers.

The results are: low noise, low distortion and high

dynamic range.

This is advanced information on a new product now in development or undergoing evaluation. Details are subject to change without notice.

May 1991

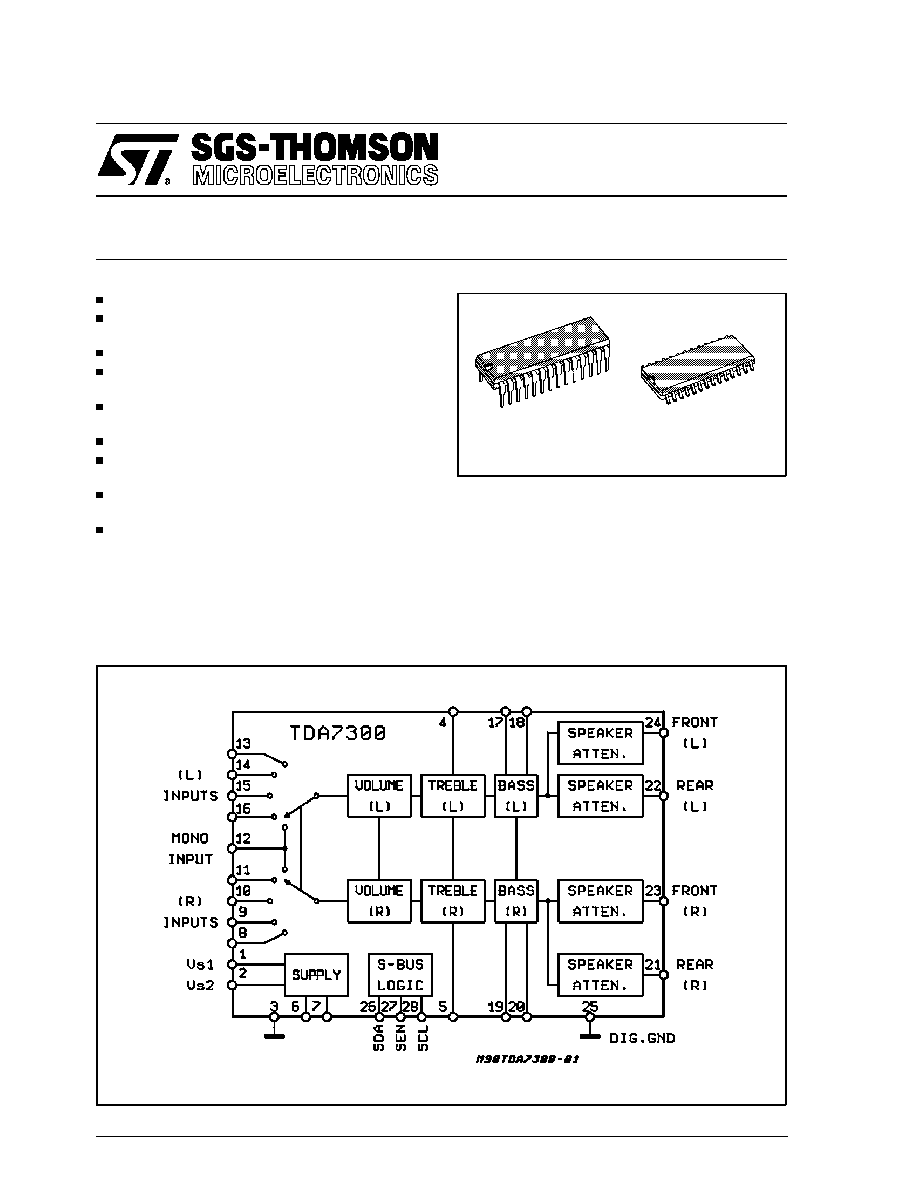

BLOCK DIAGRAM

DIP28

SO28

ORDERING NUMBERS:

TDA7300

TDA7300D

1/16
