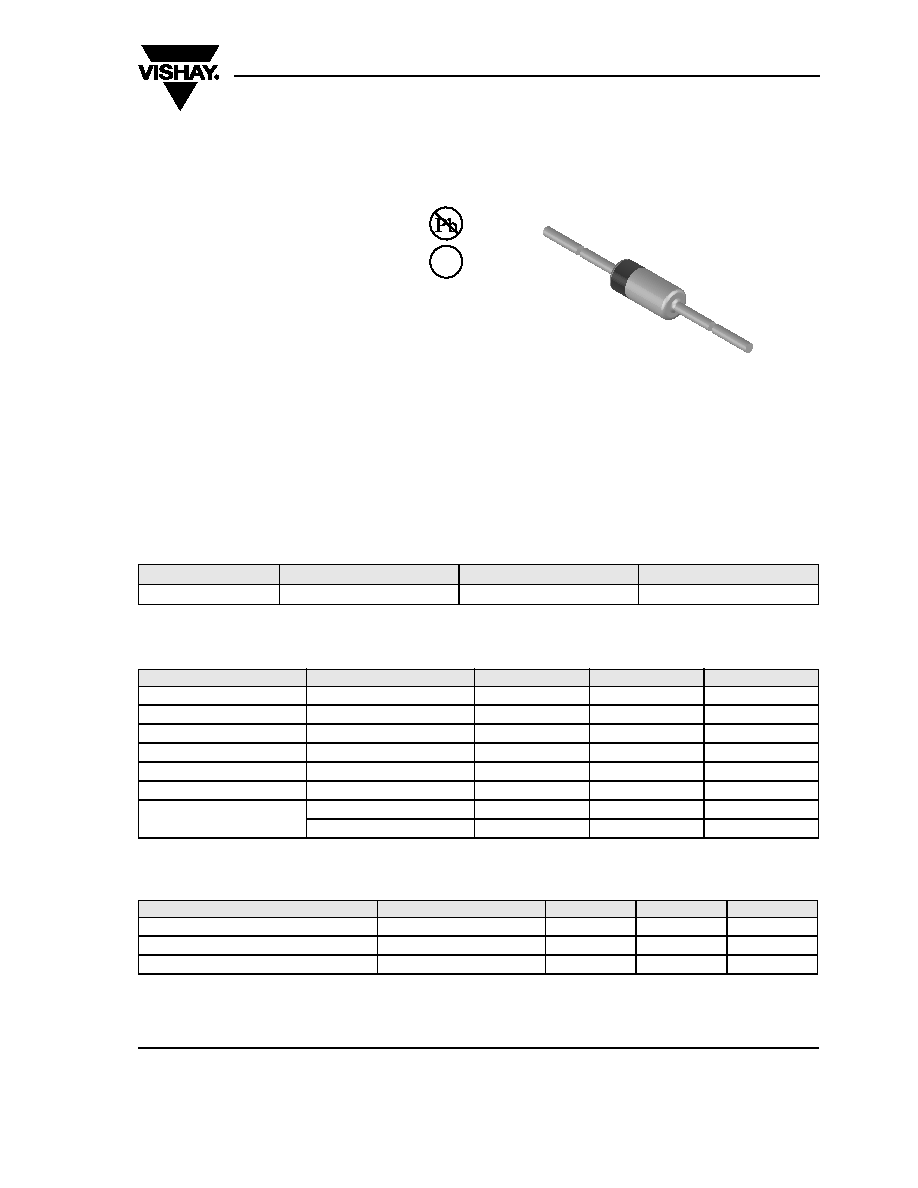

1 / 4 page  BAW75 Document Number 85550 Rev. 1.6, 19-Feb-07 Vishay Semiconductors www.vishay.com 1 94 9367 Small Signal Switching Diode Features • Silicon Epitaxial Planar Diode • Lead (Pb)-free component • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Applications • Extreme fast switches Mechanical Data Case: DO35 Glass case Weight: approx. 125 mg Cathode Band Color: black Packaging Codes/Options: TR/10 k per 13" reel (52 mm tape), 50 k/box TAP/10 k per Ammopack (52 mm tape), 50 k/box Parts Table Absolute Maximum Ratings Tamb = 25 °C, unless otherwise specified Thermal Characteristics Tamb = 25 °C, unless otherwise specified Part Ordering code Type Marking Remarks BAW75 BAW75-TR or BAW75-TAP BAW75 Tape and Reel/Ammopack Parameter Test condition Symbol Value Unit Repetitive peak reverse voltage VRRM 35 V Reverse voltage VR 25 V Peak forward surge current tp = 1 µs IFSM 2000 mA Repetitive peak forward current IFRM 450 mA Forward continuous current IF 300 mA Average forward current VR = 0 IFAV 150 mA Power dissipation l = 4 mm, TL = 45 °C Ptot 440 mW l = 4 mm, TL ≤ 25 °C Ptot 500 mW Parameter Test condition Symbol Value Unit Thermal resistance junction to ambient air l = 4 mm, TL = constant RthJA 350 K/W Junction temperature Tj 175 °C Storage temperature range Tstg - 65 to + 175 °C e2 |
