TYPICAL APPLICATION

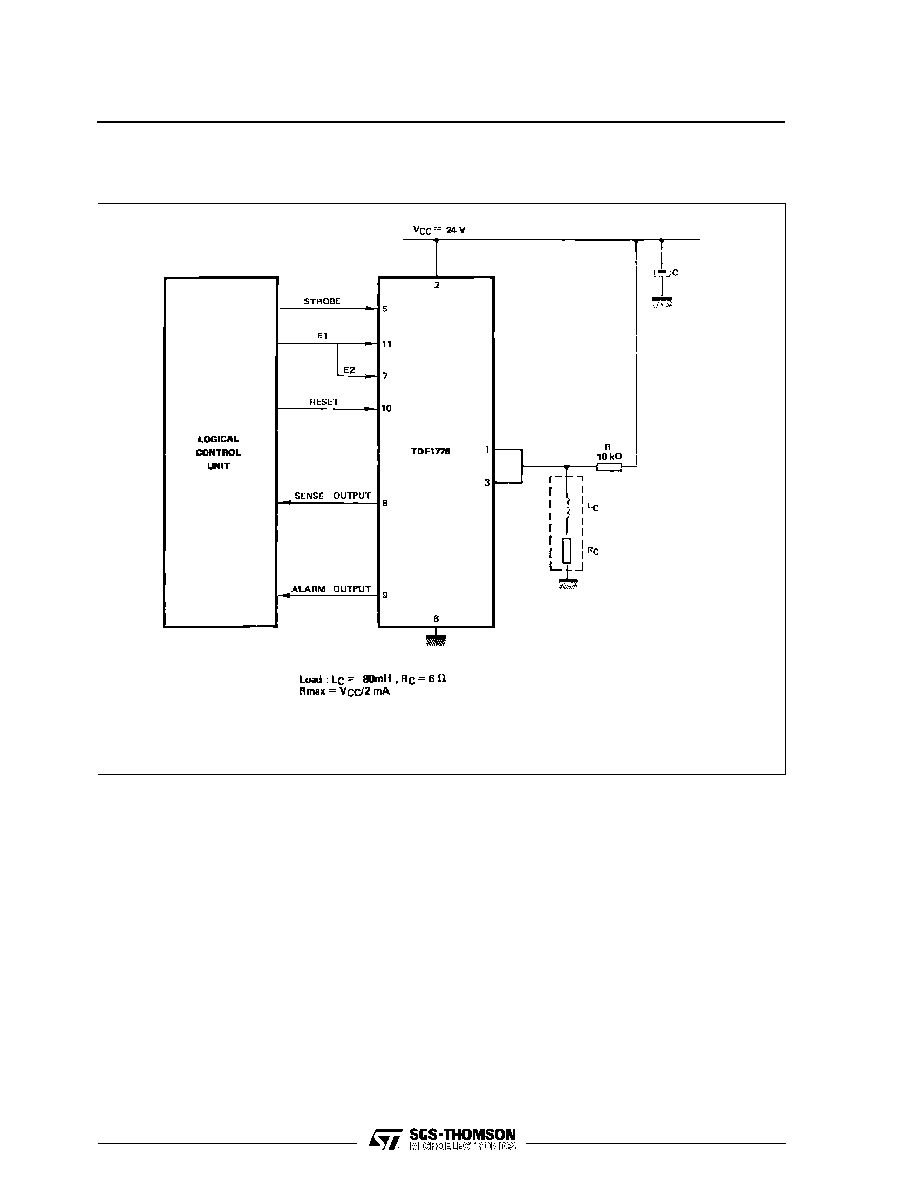

TYPICAL APPLICATION WITH TDF1778 TWO INDUCTIVE LOADS 2 A - 24 V

Ω

MAIN FEATURES

This application protected against short circuits.

The load disconnection is detected when inputs E1

and E2 are low and the sense output is high.

When thermal protectionis activatedthe pin 9 is low.

Inputs and outputs are TTL comptable.

TDF1778

7/10
