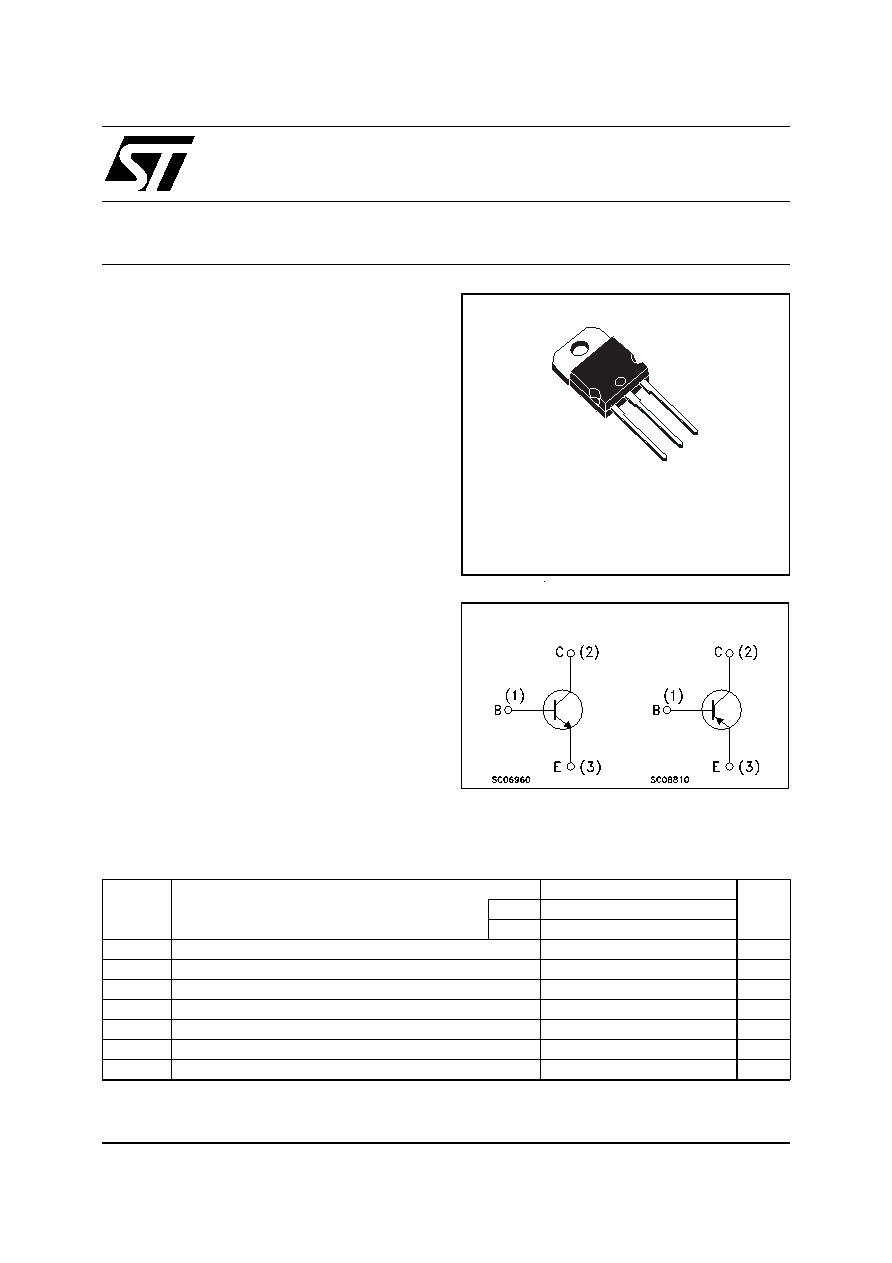

TIP2955

TIP3055

COMPLEMENTARY SILICON POWER TRANSISTORS

s

STMicroelectronics PREFERRED

SALESTYPES

s

COMPLEMENTARY PNP - NPN DEVICES

DESCRIPTION

The TIP3055 is a silicon Epitaxial-Base Planar

NPN

transistor mountend in TO-218 plastic

package. It is intented for power switching

circuits, series and shunt regulators, output

stages and hi-fi amplifiers.

The complementary PNP type is the TIP2955.

INTERNAL SCHEMATIC DIAGRAM

August 1999

ABSOLUTE MAXIMUM RATINGS

Symbol

Parameter

Value

Unit

PNP

TIP2955

NPN

TIP3055

VCBO

Collector-Base Voltage (IE = 0)

100

V

VCEO

Collector-Emitter Voltage (IB = 0)

60

V

IC

Collector Current

15

A

IB

Base Current

7

A

Ptot

Total Dissipation at Tc

≤ 25 oC

90

W

Tstg

Storage Temperature

-65 to 150

o C

Tj

Max. Operating Junction Temperature

150

o C

For PNP types voltage and current are negative.

1

2

3

TO-218

®

1/4
