AD8275
Rev. 0 | Page 9 of 16
40
35
30
25
20
15
10
5
0
–40
–20
0
20
40
60
80
100
120
0
10
20
30
40
50
60
0
20
40
60
80
100
120
140
160
CAPACITANCE (pF)
TEMPERATURE (°C)
+SR
–SR
3.3V
5V

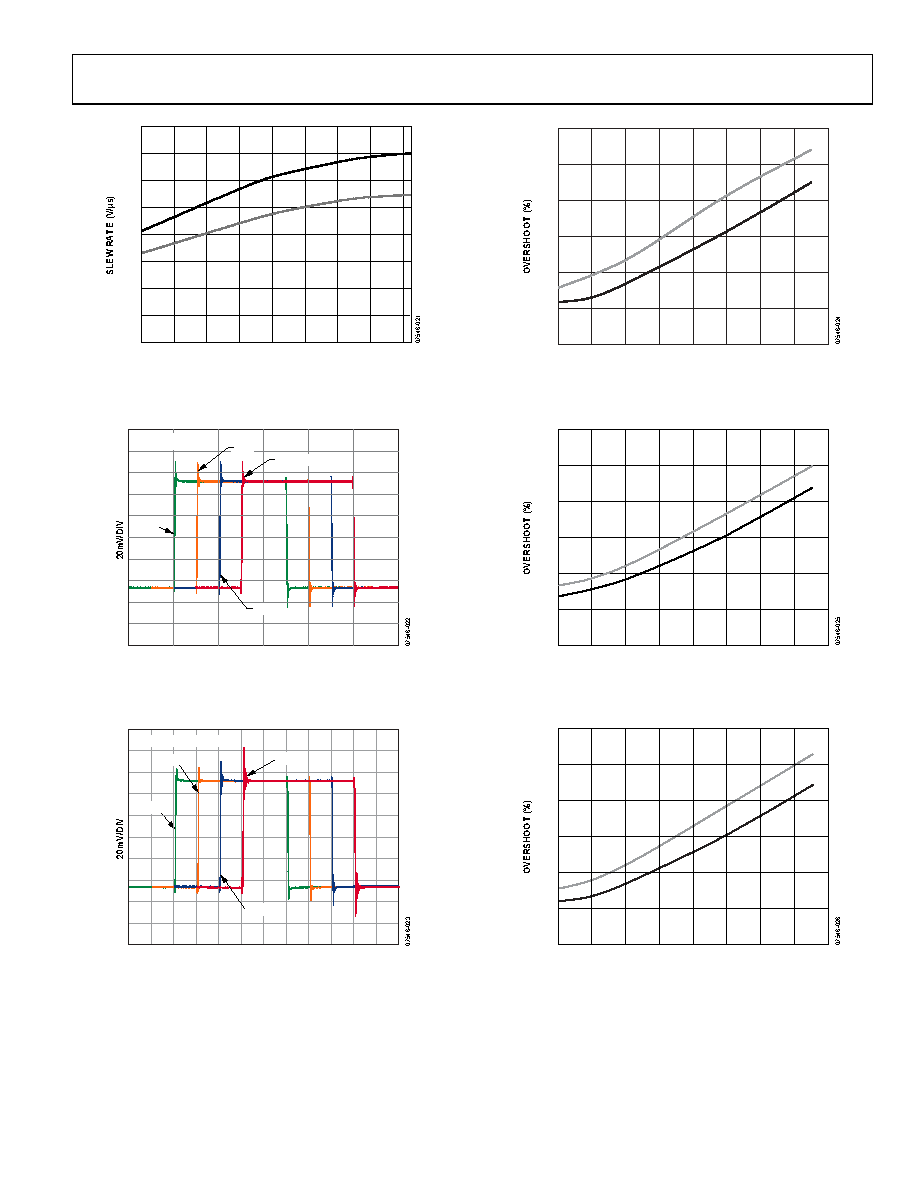

Figure 23. Slew Rate vs. Temperature
Figure 26. Small Signal Overshoot vs. Capacitive Load,
No Resistive Load
0
10
20
30
40
50
60
0
20
40
60
80
100
120
140
160
CAPACITANCE (pF)
1µs/DIV
CLOAD = 47pF
600Ω
2kΩ
10kΩ
1µs/DIV
NO LOAD
Figure 24. Small Signal Step Response for Various Resistive Loads
(Step Responses Staggered for Clarity)
NO RESISTIVE LOAD
20pF
3.3V
5V
Figure 27. Small Signal Overshoot vs. Capacitive Load,
600 Ω in Parallel with Capacitive Load
0
10
20
30
40
50
60
47pF
NO CAP
100pF
Figure 25. Small Signal Pulse Response for Various Capacitive Loads
(Step Responses Staggered for Clarity)
3.3V
5V
0
20
40
60
80
100
120
140
160
CAPACITANCE (pF)
Figure 28. Small Signal Overshoot vs. Capacitive Load,
2 kΩ in Parallel with Capacitive Load
