ADA4856-3
Rev. 0 | Page 8 of 20
–50
–60
–70
–80
–90
–100
–110
–120
–130
–140
0.1110
HD2
HD3
100
FREQUENCY (MHz)
RL = 1kΩ
VOUT = 2V p-p

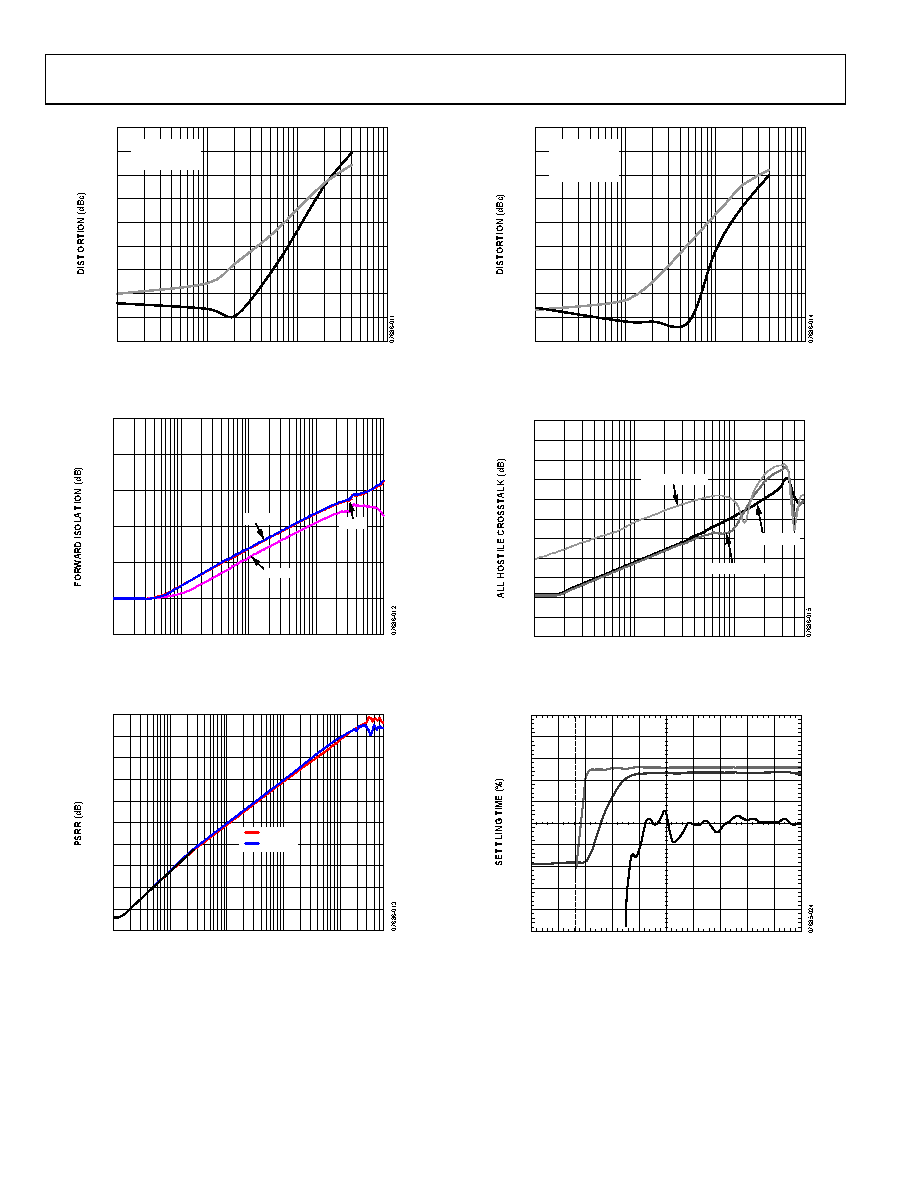

Figure 11. Harmonic Distortion vs. Frequency
0
–20
–40
–60
–80
–100
–120
0.1
1
10
100
1000
FREQUENCY (MHz)
OUT2
OUT3
OUT1
Figure 12. Forward Isolation vs. Frequency
0
–10
–20
–30
–40
–50
–60
–70
–80
–90
–100
0.01
100
10
1
0.1
FREQUENCY (MHz)
+PSRR
–PSRR
Figure 13. Power Supply Rejection Ratio (PSRR) vs. Frequency
–50
–60
–70
–80
–90
–100
–110
–120
–130
–140
0.1
1
HD2
HD3
10
100
FREQUENCY (MHz)
RL = 1kΩ
VOUT = 1V p-p
VS = 3.3V
Figure 14. Harmonic Distortion vs. Frequency
–120
–110
–100
–90
–80
–70
–60
–50
–40
–30
–20
–10
1M
10M
100M
FREQUENCY (Hz)
IN1, IN2, OUT3
IN2, IN3, OUT1
IN1, IN3, OUT2
Figure 15. Crosstalk vs. Frequency
TIME (2ns/DIV)
0.5
0.4
0.3
0.2
0.1
0
–0.1
–0.2
–0.3
–0.4
–0.5
Figure 16. Settling Time
