PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

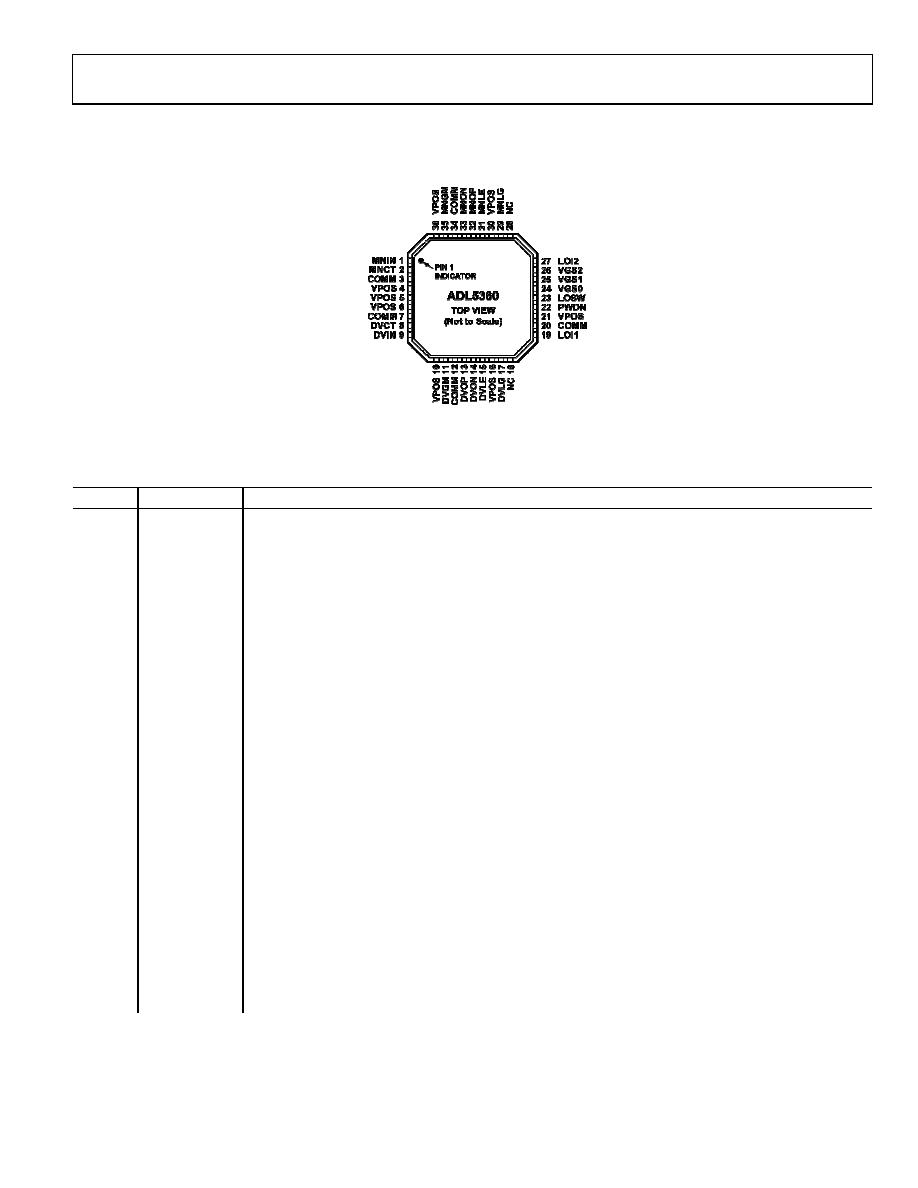

Figure 2. Pin Configuration

Table 3. Pin Function Descriptions

Pin No.

Mnemonic

Function

1

MNIN

RF Input for Main Channel. Internally matched to 50

Ω. Must be ac-coupled.

2

MNCT

Center Tap for Main Channel Input Balun. Should be bypassed to ground using low inductance capacitor.

3, 5, 7,

12, 20,

34

COMM

Device Common (DC Ground).

4,, 6, 10,

16, 21,

30, 36

VPOS

Positive Supply Voltage.

8

DVCT

Center Tap for Diversity Channel Input Balun. Should be bypassed to ground using low inductance capacitor.

9

DVIN

RF Input for Diversity Channel. Internally matched to 50

Ω. Must be ac-coupled.

11

DVGM

Diverstiy Amplifier Bias Setting. Connect 1.2k

Ω resistor to ground for typical operation.

13, 14

DVOP, DVON

Diversity Channel Differential Open-Collector Outputs. DVOP and DVON should be pulled-up to VCC using

pull-up choke inductors.

15

DVLE

Diversity Channel External Inductor. Connect 10nH inductor to ground for typical operation.

17

DVLG

Diverstiy Channel LO Buffer Bias Setting. Connect 390

Ω resistor to ground for typical operation.

18, 28

NC

No Connect.

19,

L0I1

Local Oscillator Input 1. Internally matched to 50

Ω. Must be ac-coupled.

22

PWDN

Connect to Ground for Normal Operation. Connect pin to 3.3V for disable mode.

23

LOSW

Local Oscillator Input Selection Switch. Set LOSW high to select LOI1, and set low to select LOI2.

24, 25,

26

VGS0, VGS1,

VGS2

Gate to Source Control Voltages. For typical operation set VGS2 high and VGS0 and VGS1 to low logic level.

27

LOI2

Local Oscillator Input 2. Internally matched to 50

Ω. Must be ac-coupled.

29

MNLG

Main Channel LO Buffer Bias Setting. Connect 390

Ω resistor to ground for typical operation.

31

MNLE

Main Channel External Inductor. Connect 10nH inductor to ground for typical operation.

32, 33

MNOP, MNON

Main Channel Differential Open-Collector Outputs. MNOP and MNON should be pulled-up to VCC using pull-

up choke inductors.

35

MNGM

Main Amplifier Bias Setting. Connect 1.2k

Ω resistor to ground for typical operation.
