TS512AI 데이터시트(PDF) 2 Page - STMicroelectronics

부품명 TS512AI
상세설명  HIGH SPEED PRECISION DUAL OPERATIONAL AMPLIFIERS
PDF  7 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  STMICROELECTRONICS [STMicroelectronics]
홈페이지  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

TS512AI 데이터시트(HTML) 2 Page - STMicroelectronics

  TS512AI Datasheet HTML 1Page - STMicroelectronics TS512AI Datasheet HTML 2Page - STMicroelectronics TS512AI Datasheet HTML 3Page - STMicroelectronics TS512AI Datasheet HTML 4Page - STMicroelectronics TS512AI Datasheet HTML 5Page - STMicroelectronics TS512AI Datasheet HTML 6Page - STMicroelectronics TS512AI Datasheet HTML 7Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out

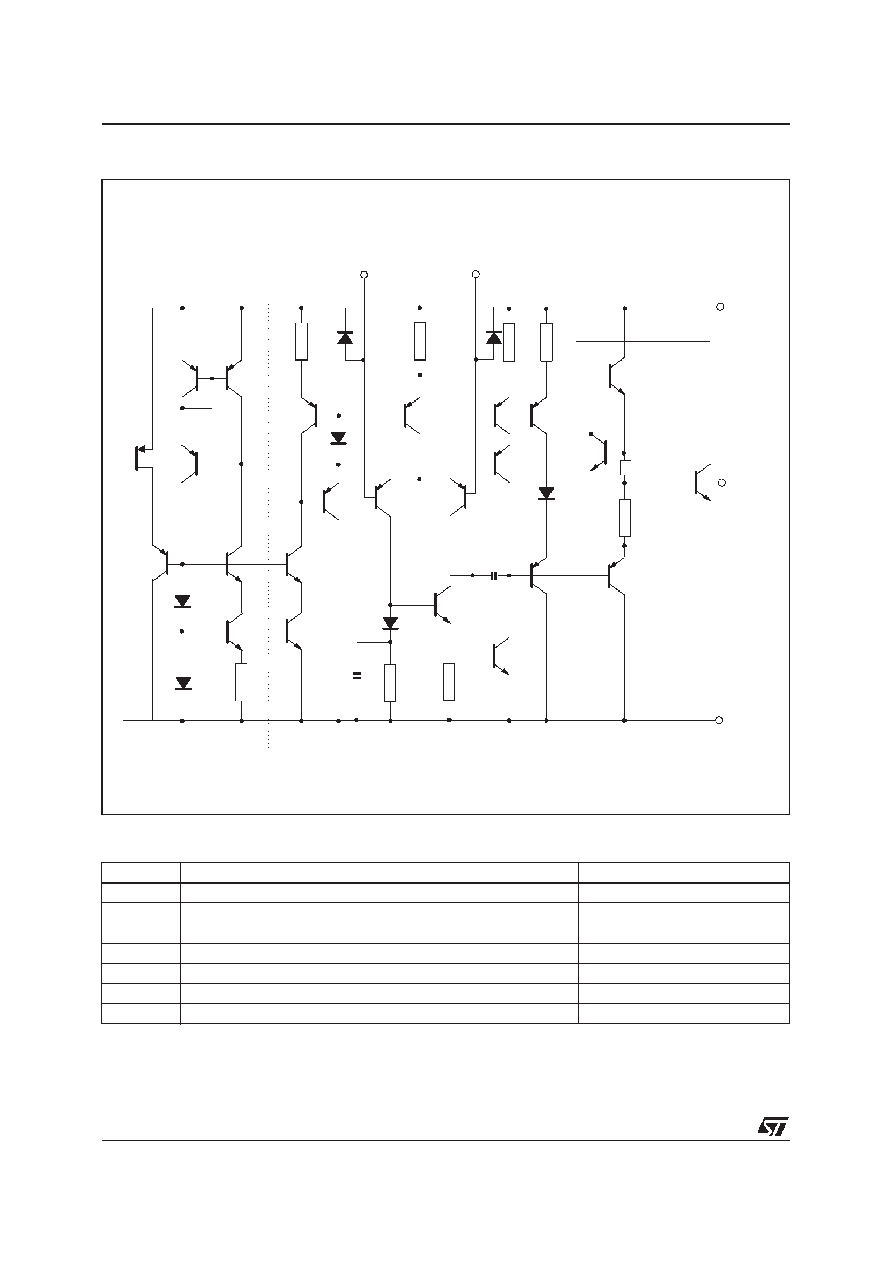

 2 / 7 page
background image
Inverting
input
Non-inverting
input
R1
R2
R3
R4
8
Output
4
Q1
Q2
Q3
D1
Q4
Q5
Q6
Q13
R6
Q12
R7
Q9
D2
Q14
Q16
Q15
Q20
R10
C1
Q23
Q10
Q11
R9
D5
C2
Q8
Q7
Q18
R5
D4
D3
Q21
Q22
Q19
Q17
R8
D6
D7
SCHEMATIC DIAGRAM (1/2 TS512)
ABSOLUTE MAXIMUM RATINGS
Symbol
Parameter
Value
Unit
VCC
Supply Voltage
±18
V
Vi
Input Voltage
±VCC
Vid
Differential Input Voltage
± (VCC -1)
Toper
Operating Free Air Temperature Range
-40 to +125
oC
Ptot
Power Dissipation at Tamb =70
oC
500
mW
Tj
Junction Temperature
150
oC
Tstg
Storage Temperature Range
-65 to +150
oC
TS512,A
2/7
