VB024 데이터시트(PDF) 7 Page - STMicroelectronics

부품명 VB024
상세설명  HIGH VOLTAGE IGNITION COIL DRIVER POWER IC
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  STMICROELECTRONICS [STMicroelectronics]
홈페이지  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

VB024 데이터시트(HTML) 7 Page - STMicroelectronics

  VB024 Datasheet HTML 1Page - STMicroelectronics VB024 Datasheet HTML 2Page - STMicroelectronics VB024 Datasheet HTML 3Page - STMicroelectronics VB024 Datasheet HTML 4Page - STMicroelectronics VB024 Datasheet HTML 5Page - STMicroelectronics VB024 Datasheet HTML 6Page - STMicroelectronics VB024 Datasheet HTML 7Page - STMicroelectronics VB024 Datasheet HTML 8Page - STMicroelectronics
Zoom Inzoom in Zoom Outzoom out
 7 / 8 page
background image
DIM.
mm
inch
MIN.
TYP.
MAX.
MIN.
TYP.
MAX.
A
5.35
5.65
0.210
0.222
B
3.4
3.7
0.133
0.145
C
0.8
1.28
0.031
0.050
D
2.95
3.1
0.116
0.122
D1
1.95
2.15
0.076
0.084
E
0.5
0.6
0.019
0.023
F
1.1
0.043
F1
0.7
0.8
0.027
0.031
F2
1.4
0.055
G
4.88
5.28
0.192
0.207
G1
7.42
7.82
0.292
0.308
G2
9.96
10.36
0.392
0.408
H
15.9
16.1
0.626
0.634
L1
19.85
20.15
0.781
0.793
L2
19.35
19.65
0.761
0.773
L3
8.9
9.1
0.350
0.358
L4
28
29
1.102
1.141
L5
4.9
5.1
0.193
0.201
L6
15.9
16.1
0.626
0.634
L7
2.1
2.3
0.082
0.090
L8
23
23.4
0.905
0.921
L9
24.8
25.2
0.976
0.992
L10
19.8
20.2
0.779
0.795
L11
17.7
18.3
0.697
0.720
M
7.83
8.33
0.308
0.328
N
2.75
3.25
0.108
0.128
∅
3.5
3.7
0.138
0.145
L4
Dia.
L1
L5
L6
L8
L7
Ø
L9
L10
L11
L2
L3

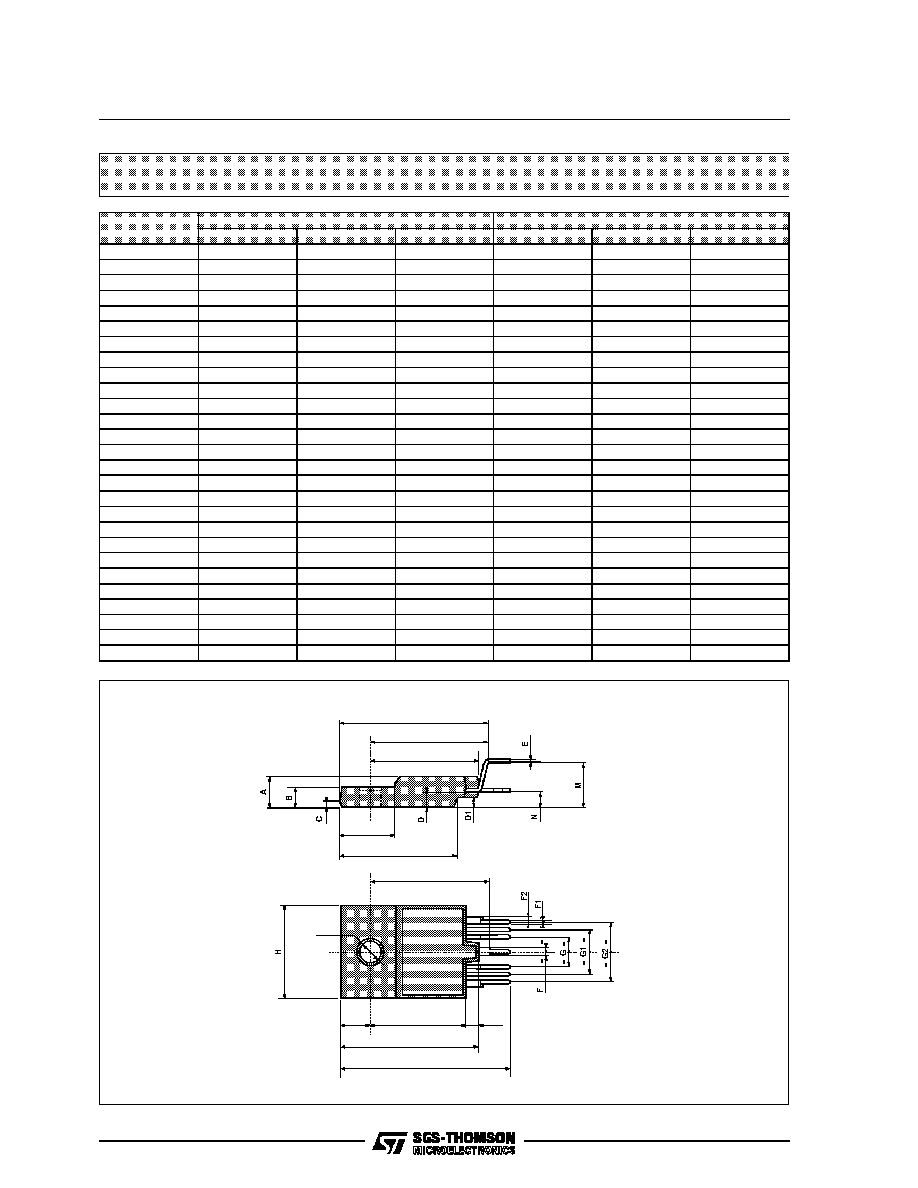

ISOWATT7 MECHANICAL DATA
P033B
VB024
7/8
