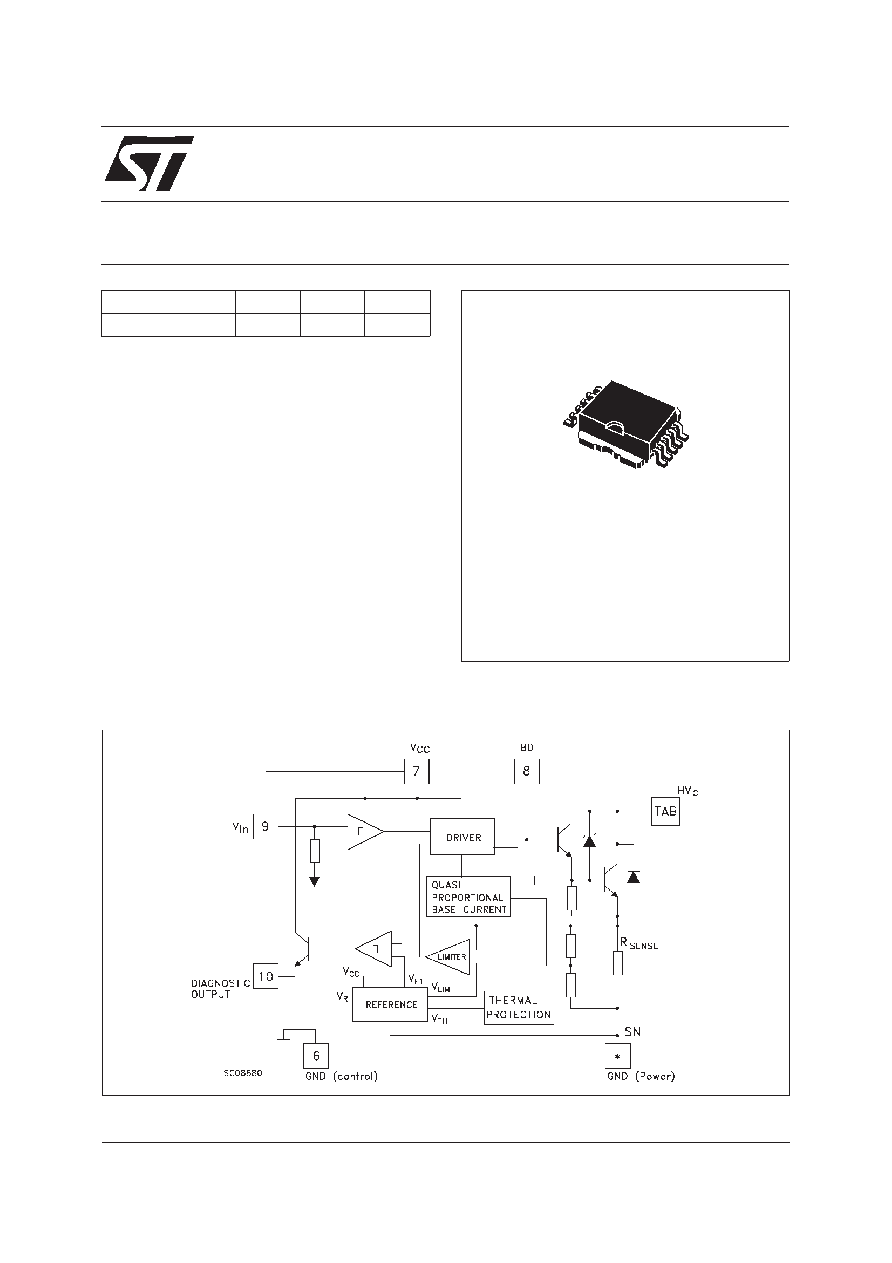

VB025BSP

HIGH VOLTAGE IGNITION COIL DRIVER

POWER IC

s

PRIMARY COIL VOLTAGE INTERNALLY SET

s

COIL CURRENT LIMIT INTERNALLY SET

s

LOGIC LEVEL COMPATIBLE INPUT

s

DRIVING CURRENT QUASI

PROPORTIONAL TO COLLECTOR

CURRENT

s

SINGLE FLAG-ON COIL CURRENT

DESCRIPTION

The VB025BSP is a high voltage power integrated

circuit made using STMicroelectronics VIPower

Technology, with vertical current flow power

darlington and logic level compatible driving circuit.

Built-in protection circuits for coil current limiting

and

collector

voltage

clamping

allows

the

VB025BSP to be used as a smart, high voltage,

high current interface in advanced electronic

ignition systems.

®

March 1999

BLOCK DIAGRAM

TYPE

VB025BSP

380 V

9 A

100 mA

1

10

PowerSO-10

1/7
