TECHNICAL DATA

Rev. 00

Low Power Low Offset Voltage Dual Comparators

The IL393 consists of two independent precision voltage

comparators with an offset voltage specification as low as 2.0

mV max for two comparators which were designed

specifically to operate from a single power supply over a

wide range of voltages.

Application areas include limit comparators, simple analog

to digital converters; pulse, squarewave and time delay

generators;

wide

range

VCO;

MOS

clock

timers;

multivibrators and high voltage digital logic gates.

•

Single or Split Supply Operation

•

Low Input Bias Current

•

Low Input Offset Current

•

Input Common Mode Voltage Range to Gnd

•

Low Output Saturation Voltage

•

TTL and CMOS Compatible

IL393

ORDERING INFORMATION

IL393N Plastic

IL393D SOIC

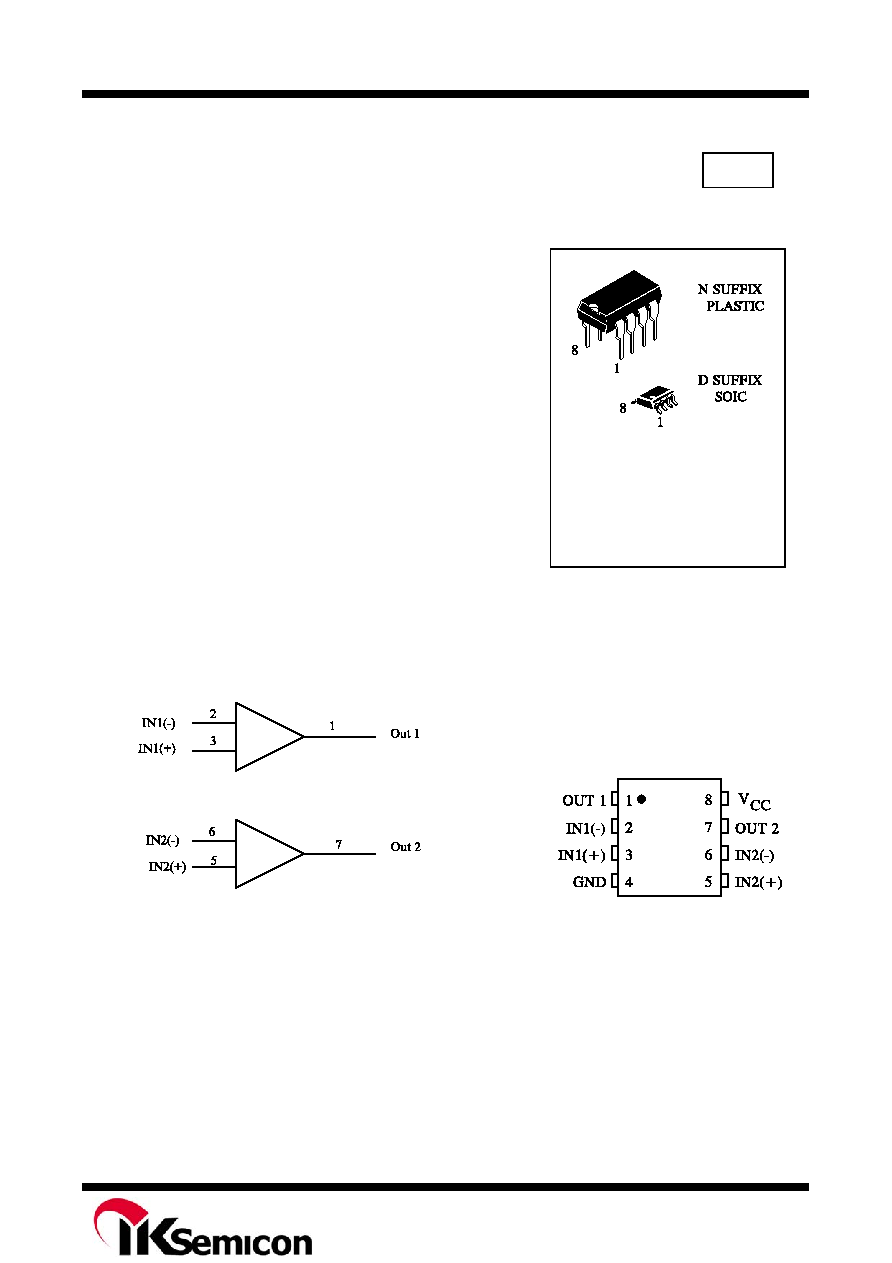

LOGIC DIAGRAM

PIN 4 = GND

PIN ASSIGNMENT
