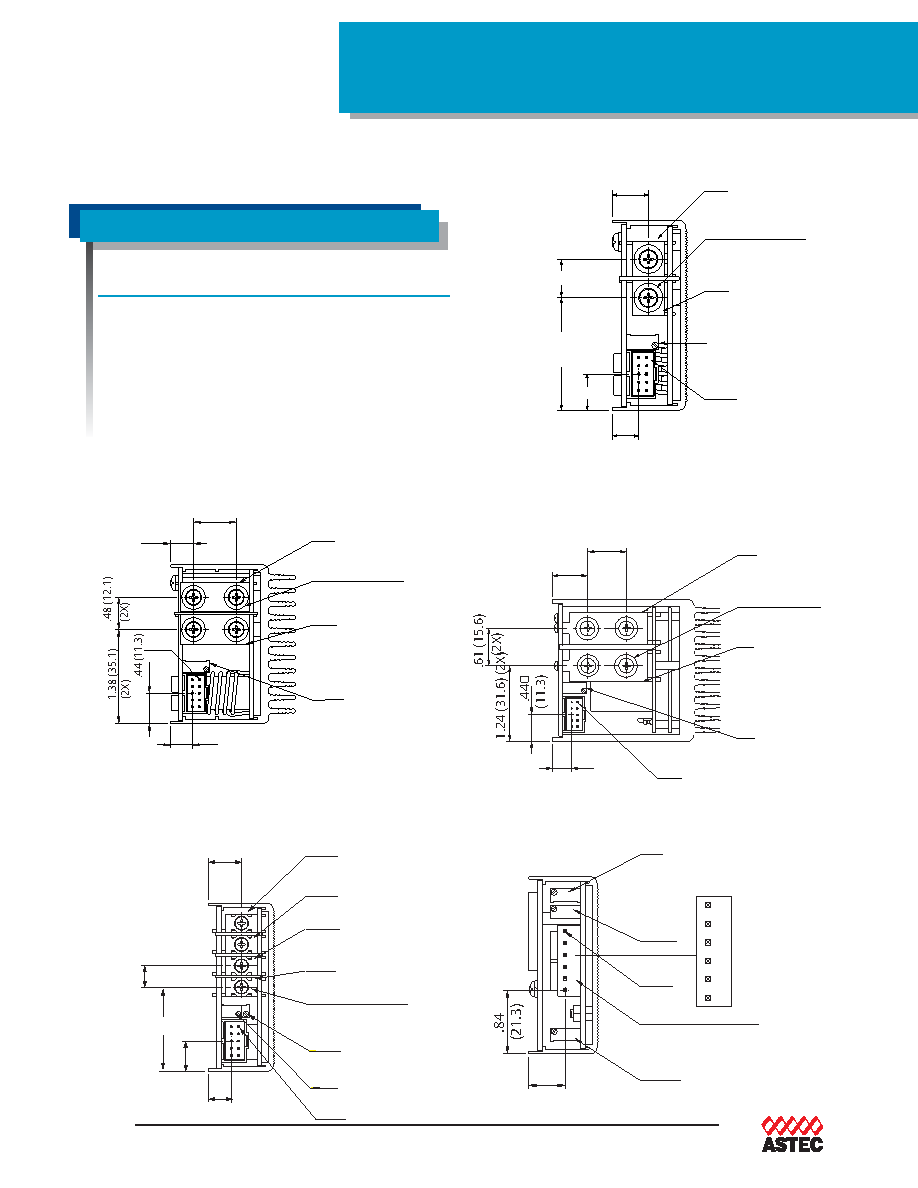

Drawings

DC-DC Converter Output Modules

Control Signal Information, J1 Control Connector

Pin No.

Function

1

+ Remote Sense

single or dual o/p main

2

Remote Margin / V. Program

single o/p

3

Margin High

single o/p

4

- Remote Sense / Margin Low

single or dual o/p main

5

Spare

6

Module, Isolated Inhibit

single or dual o/p

7

Module Inhibit return

single or dual o/p

8

Current Share (SWP)

single or dual o/p main

9

+ Remote Sense V2

dual o/p, single is spare

10

- Remote Sense V2

dual o/p, single is spare

V2 ADJ

V1 ADJ

PIN 1

V3 ADJ

DC OUTPUT CONNECTION

.48

(12.1)

V1

+

V1

-

V2

+

V2

-

V3

+

V3

-

PIN 1

V+

M4X8 SCREWS (4X)

V-

V ADJ

.32 (8.1)

.33 (8.5)

.63 (16.0)

M4X8 SCREWS (4X)

V-

PIN 1

V ADJ

V+

.32

(8.1)

.63

(16.0)

.59

(15.0)

PIN 1

.32

(8.1)

.44 (11.2 )

(2X)

V+

M4X8 SCREWS (2X)

V-

V ADJ

.48 (12.1)

.44 (11.3)

1.38

(35.1)

PIN 1

V2 ADJ

.32

(8.1)

.42 (10.7)

V1 +

V1 -

V2 -

V2 +

M3X8 SCREWS (4X)

.46 (11.7)

(4X)

.30 (7.5)(3X)

V1 ADJ

1.17 (29.7)

Single 210 Watt

Dual 144 Watt

Triple 36 Watt

Single 360 Watt

Single 600 Watt

MP MODULES
