SURFACE MOUNT GALSS PASSIVATED ZENER DIODE

E-mail: sales@cnmic.com

Web Site: www.cnmic.com

Zener Voltage

11 to 200 Volts

MZ1.5PB11V-34.1 THRU MZ1.5PB200V-1.9

Steady state Power

1.5 Watts

FEATURES

•

For surface mounted applications in order to

Optimize board space

•

Low profile package

•

Built-in strain relief

•

Glass passivated junction

•

Low inductance

•

Typical IR less than 1μA above 11V

•

High temperature soldering:

260℃/10 seconds at terminals

•

Plastic package has Underwriters

Laboratory Flammability Classification 94V-O

MECHANICAL DATA

•

Cass: JEDEC DO-214AA,molded plastic over passivated

junction

•

Terminals: Solder plated, solderable per MIL-STD-750,

Method 2026

•

Polarity: Color band denotes positive end (cathode)

•

Standard Packaging: 12mm tape (EIA-481)

•

Weight: 0.003 ounces, 0.93 gram

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

•

Ratings at 25℃ ambient temperature unless otherwise specified

Symbols

Value

Unit

DC Power Dissipation @ TL=75℃, Measure at Zero Lead Length

(Note 1 Fig.1) Derate above 75℃

PD

1.5

15

Watts

mw/℃

Peak forward Surge Current 8.3ms single half sine/square wave

Superimposed on rated load (JEDEC Method) (Notes 1.2)

IFSM

10

Amps

Operating junction and Storage Temperature Range

TJ, TSTG

-55to~+150

℃

Notes :

1. Mounted on 5.0mm

2(.013mm thick) land areas

2. Measured on 8.3ms, single half sine-wave or equivalent square wave, duty cycle=4 pulses per minute maximum.

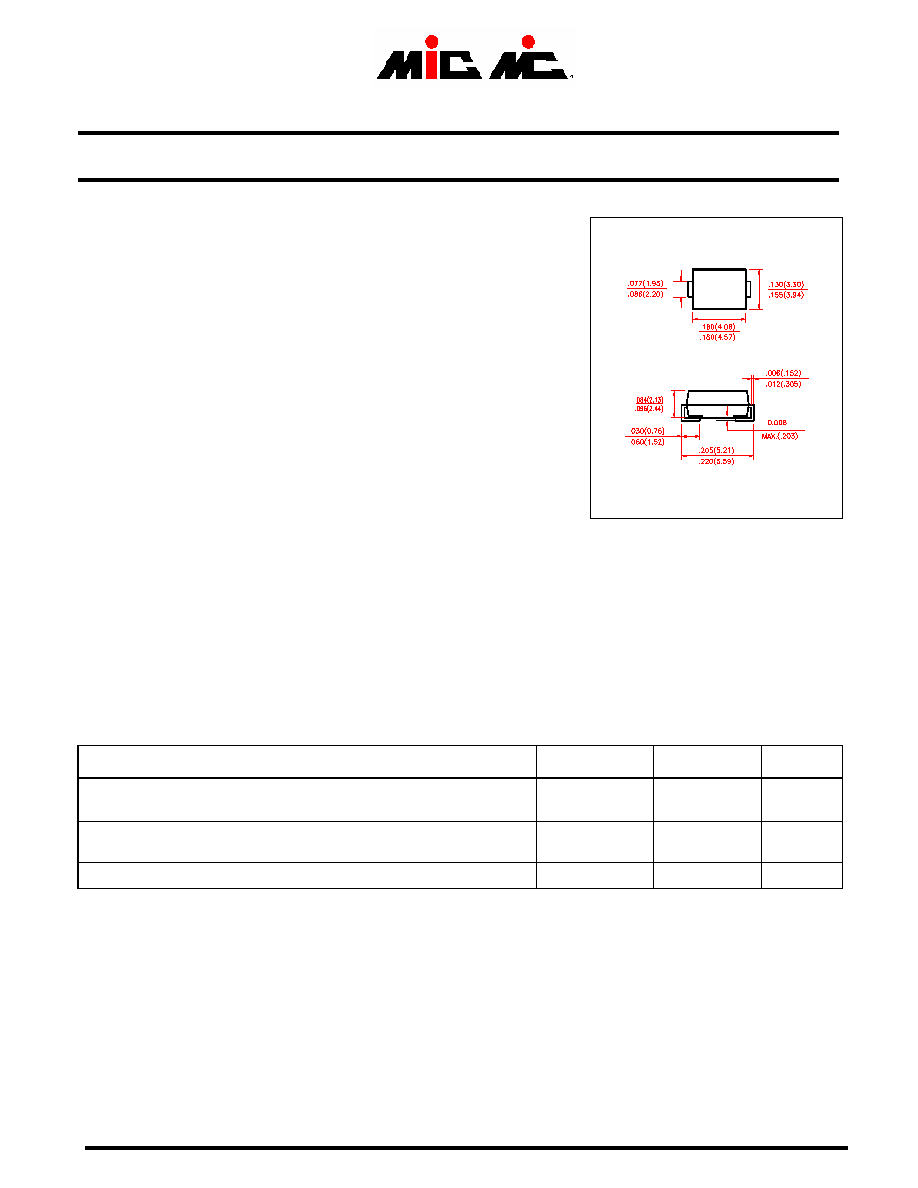

DO-214AA(SMB)

Dimensions in inches and (millimeters)
