SD103CWS 데이터시트(PDF) 2 Page - SeCoS Halbleitertechnologie GmbH

부품명 SD103CWS
상세설명  0.35AMP Surf ace Mount Schottky Barrier Rectifiers
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  SECOS [SeCoS Halbleitertechnologie GmbH]
홈페이지  http://www.secosgmbh.com
Logo SECOS - SeCoS Halbleitertechnologie GmbH

SD103CWS 데이터시트(HTML) 2 Page - SeCoS Halbleitertechnologie GmbH

  SD103CWS Datasheet HTML 1Page - SeCoS Halbleitertechnologie GmbH SD103CWS Datasheet HTML 2Page - SeCoS Halbleitertechnologie GmbH
Zoom Inzoom in Zoom Outzoom out
 2 / 2 page
background image

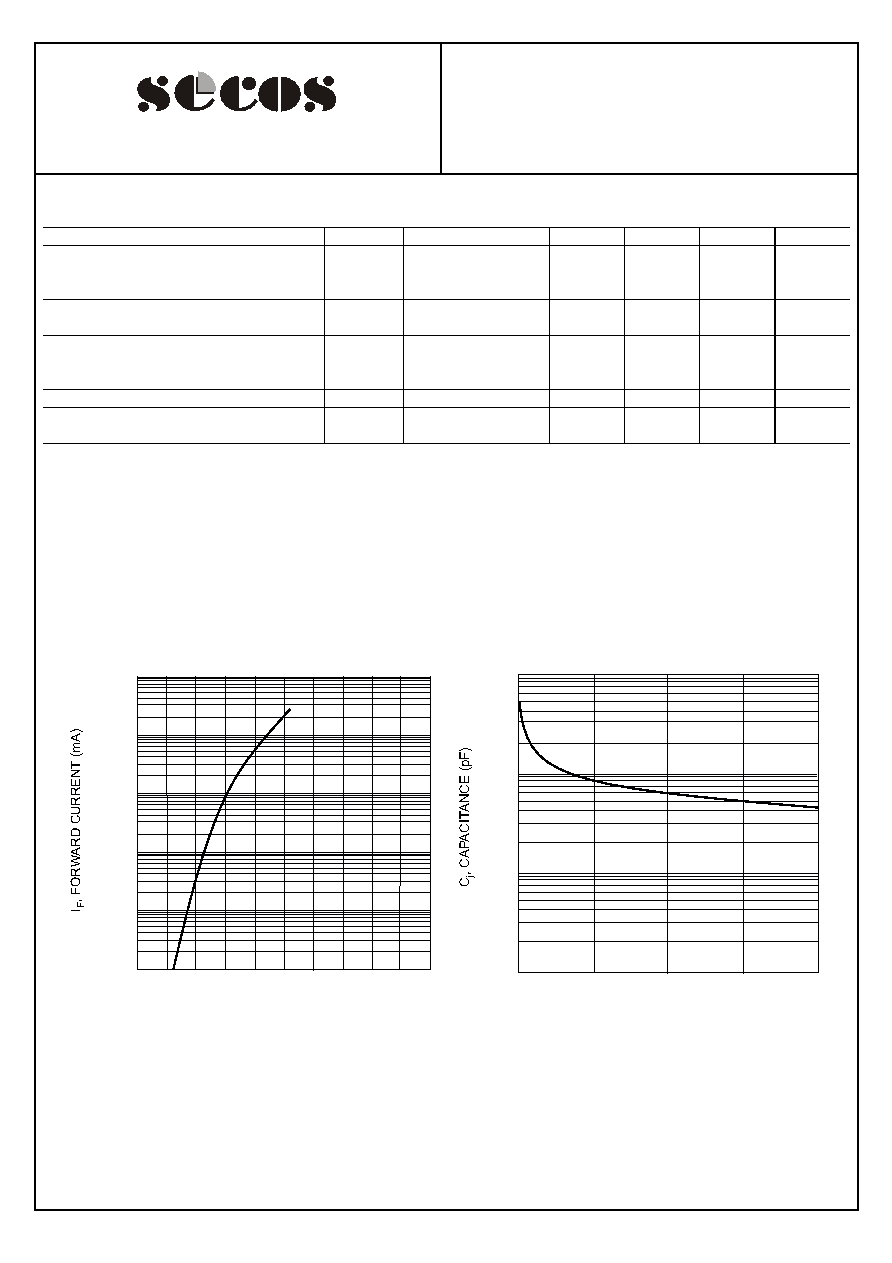

●ELECTRICAL CHARACTERISTICS
TYPE NUMBER
SYMBOL
TEST CONDITION
Min.
Typ.
Max.
UNIT
SD103AWS
40
SD103BWS
30
Reverse Forward Voltage
(Note2)
SD103CWS
V(BR)R
IR=10µA
20
-
-
V
IF=20mA
0.37
Forward Voltage Drop
VFM
IF=200mA
-
-
0.60
V
SD103AWS
VR=30V
SD103BWS
VR=20V
Peak Reverse Current
SD103CWS
IRM
VR=10V
-
-
5.0
µA
Junction Capacitance
Cj
VR=0V, f=1.0MHz
-
50
-
pF
IF=IR=200mA,
Reverse Recovery Time
trr
Irr=0.1xIR, RL=100Ω
-
10
-
ns
Note:
1. Valid provided that leads are kept at ambient temperature.
2. Test period < 3000 s.
RATING AND CHARACTERISTIC CURVES (SD103AWS THRU SD103CWS)
http://www.SeCoSGmbH.com /
Any changing of specification will not be informed individual
1.0
10
100
1000
0.10
0.01
0
0.5
1.0
V , FORWARD VOLTAGE (V)
Fig. 1 Typical Forward Characteristics
F
V , REVERSE VOLTAGE (V)
R
Fig.2 Typ. Junction Capacitance vs Reverse Voltage
100
0.1
1.0
10
010
20
30
40
01-Jun-2002 Rev. A
Page 2 of 2
Elektronische Bauelemente
SD103AWS THRU SD103CWS
VOLTAGE 20V ~ 40V
0.35AMP Surf ace Mount Schottky Barrier Rectifiers
