6mm SMT Tactiles

Series HP03

Distinctive Characteristics

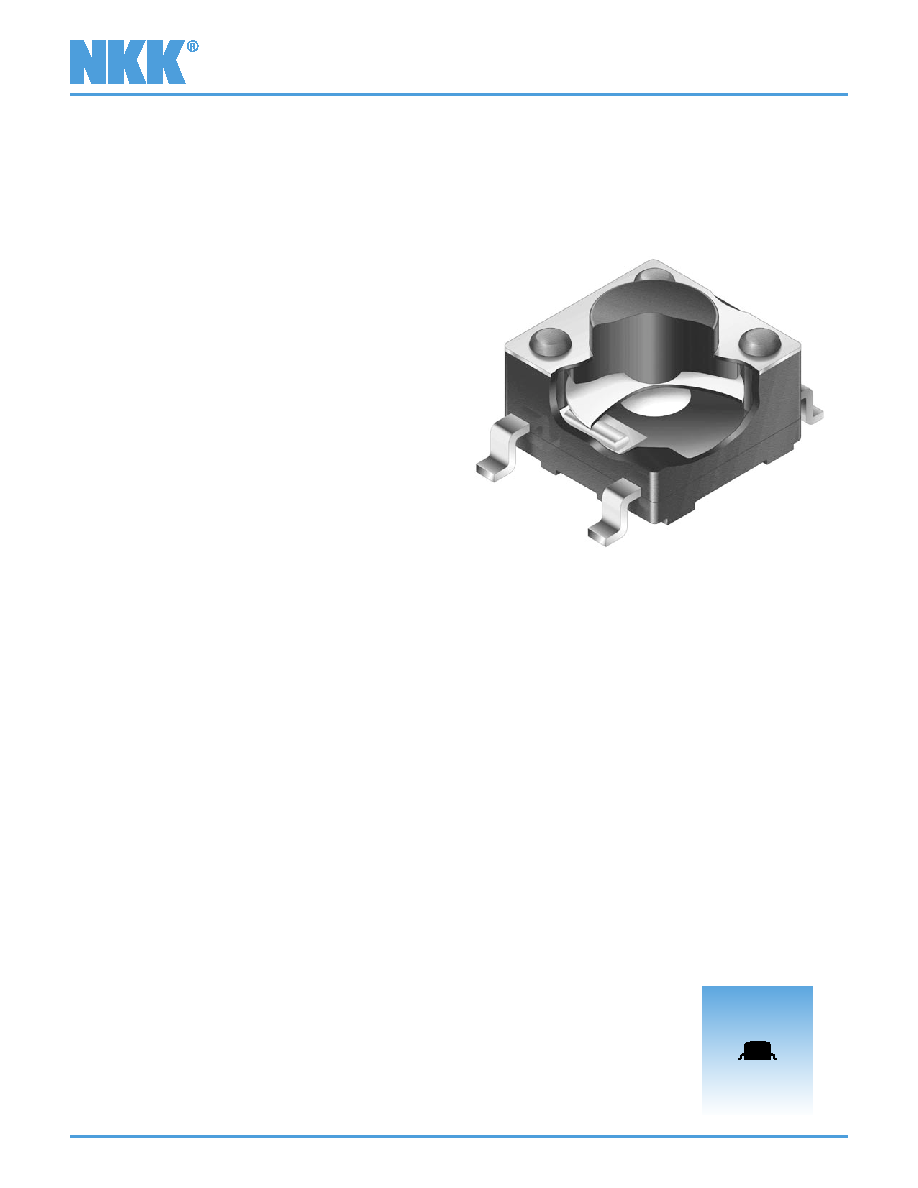

.244” (6.2mm) square body allows compact mounting.

Heat resistant resin body meets lead-free

solder processing requirements and UL

flammability rating of 94V-0.

Stick-tube and tape-reel packaging

allow rapid automated placement

of devices.

Gold plated contacts available for very

low voltage/current applications offer

advantages of little or no oxidization or

sulfurization and stable contact resistance.

Gull-winged terminals ensure mechanical stability during

soldering and simplified solder joint inspection.

Insert molded terminals lock out flux, solvents, and other contaminants

and allow automated soldering.

Tape-reel packaging meets EIA-481-2 Standard.

Coplanarity: all considered surfaces must lie between two parallel planes that are

a maximum distance apart of .0039” (0.10mm). (Additional coplanarity details in

Terms and Acronyms in the Supplement section.)

Actual Size
