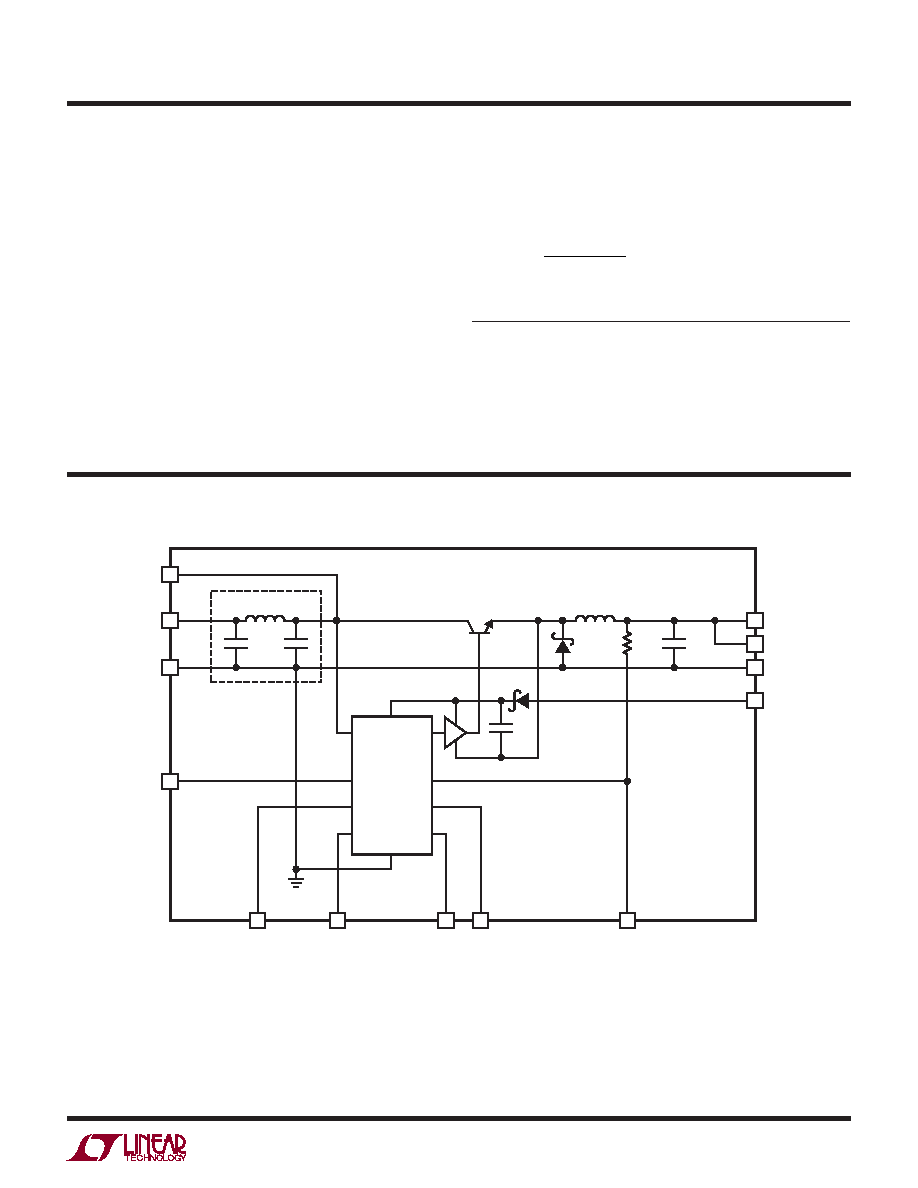

7 / 20 page ![]() LTM8032 7 8032fa PIN FUNCTIONS SYNC (Pin L6): This is the external clock synchronization input. Ground this pin for low ripple Burst Mode ® operation at low output loads. Tie to a stable voltage source greater than 0.7V to disable Burst Mode operation. Do not leave this pin floating. Tie to a clock source for synchronization. Clock edges should have rise and fall times faster than 1μs. See synchronizing section in Applications Information. PGOOD (Pin K7): The PGOOD pin is the open-collector output of an internal comparator. PGOOD remains low until the ADJ pin is within 10% of the final regulation voltage. The PGOOD output is valid when VIN is above 3.6V and RUN/SS is high. If this function is not used, leave this pin floating. ADJ (Pin J7): The LTM8032 regulates its ADJ pin to 0.79V. Connect the adjust resistor from this pin to ground. The value of RADJ is given by the equation: R V ADJ OUT = 196 71 079 . –. where RADJ is in kΩ. BLOCK DIAGRAM CURRENT MODE CONTROLLER 249k 10μF VOUT AUX GND 4.7μH BIAS EMI FILTER FIN VIN GND SHARE SYNC RT PGOOD ADJ 8032 BD RUN/SS Burst Mode is a registered trademark of Linear Technology Corporation. |
|
|
