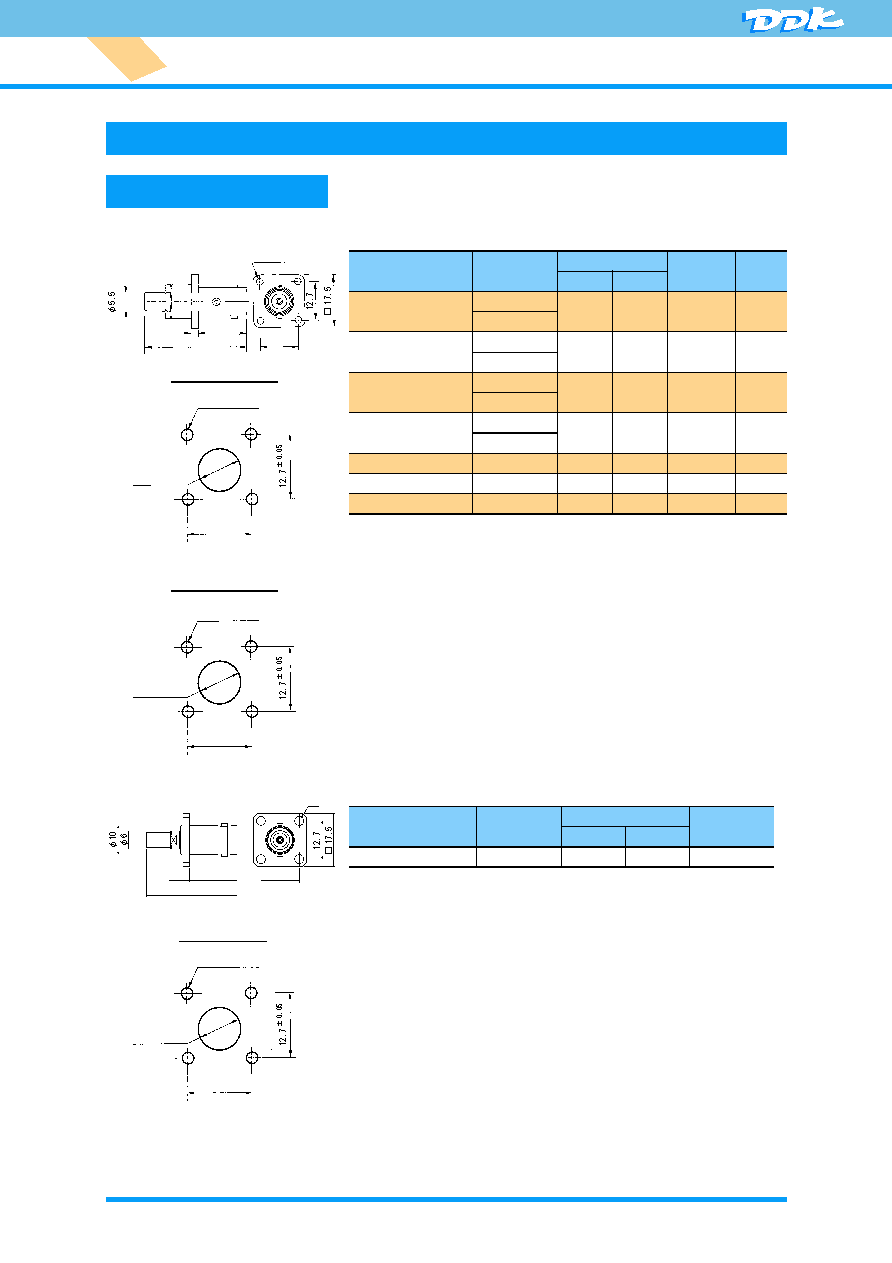

BNC Series
Unit : mm
■ Panel Jack
Crimp Type
P/N
Applicable
Cable
Finish
Hand Crimp
Tool P/N
Mounting
Hole
Shell
Contact
BNC-PJ-1.5V-CR
1.5D-2V
Ag
Ag
CR-H-1100
R
1.5C-2V
BNC-PJ-1.5V-CR-Ni
1.5D-2V
Ni
Ag
CR-H-1100
R
1.5C-2V
BNC-PJ-2.5V-CR
2.5D-2V
Ag
Ag
CR-H-1100
R
2.5C-2V
BNC-PJ-2.5V-CR-Ni
2.5D-2V
Ni
Ag
CR-H-1100
R
2.5C-2V
BNC-PJ-179BU-CR
RG-179B/U
Ag
Ag
CR-H-1100
R
BNC-PJ-1.5W-CR-DI
1.5D-QEW
Ni
Au
CR-H-1100
N
BNC-PJ-1.5W-CR-Ni
1.5D-QEW
Ni
Ag
CR-H-1100
N
P/N
Applicable
Cable
Finish
Hand Crimp
Tool P/N
Shell
Contact
BNC-PJ-1.5DW-CR1
1.5D-QEW
Ni
Au
CR-H-1156
12.7
4-φ3.0
（34.5）
2.3
15.8
4-φ3.0
+0.1
-0
φ11.5
+0.1
-0
12.7 ± 0.05
4-φ3.0
+0.1
-0
φ12.0
+0.1
-0
12.7 ± 0.05
Mounting Hole R
Mounting Hole N
4-φ3.0
+0.1
-0
φ11.5
+0.1
-0
12.7 ± 0.05
Mounting Hole
12.7
4-φ3.0
（30.1）
2.29
15.77
7
