3 / 3 page

Unit：mm

http://www.ddknet.co.jp

Specifications are subject to change without notice for purpose of product modification

CM09 Series

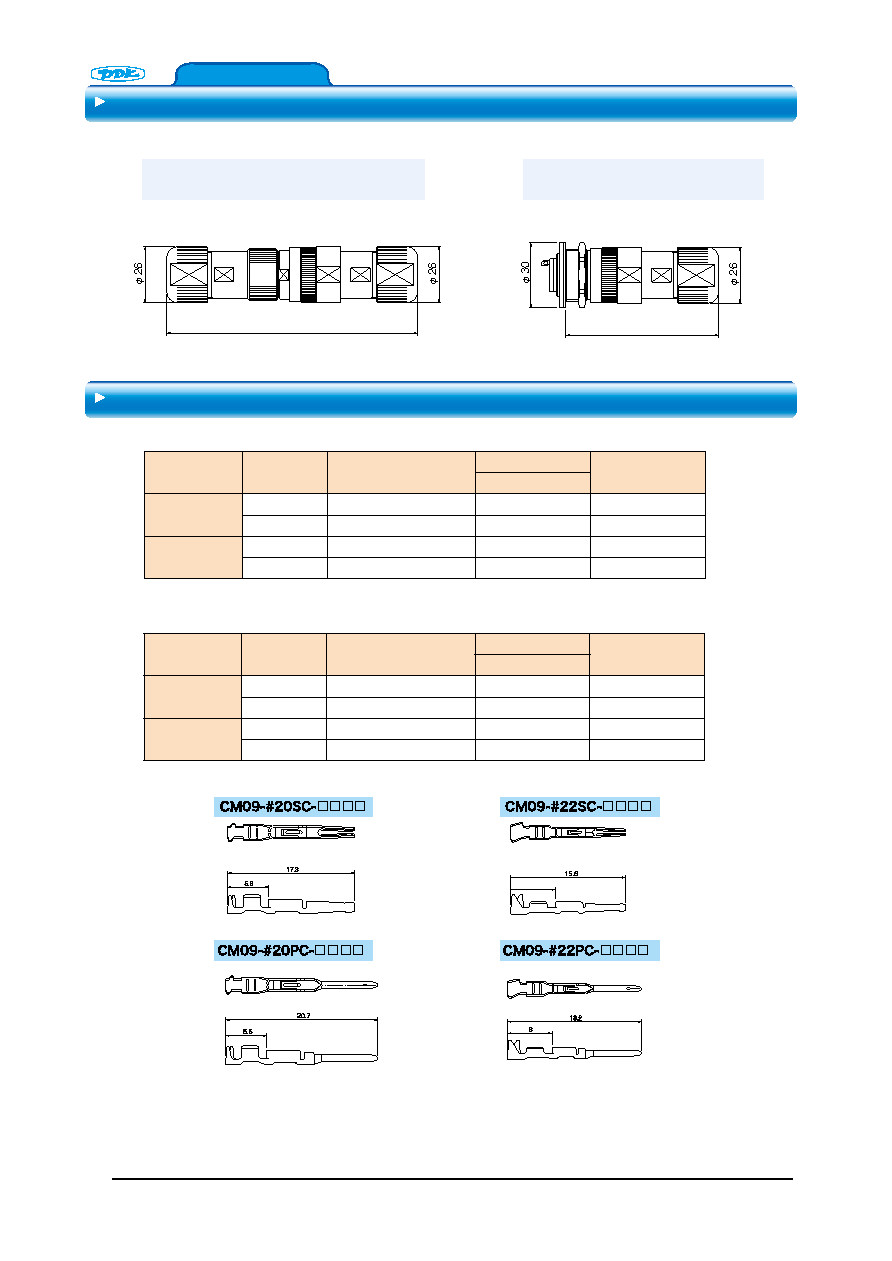

○Mated Dimensions

○Contacts

Cable Receptacle　＋　Plug

CM09-CR25 □

CM09-P25 □

Receptacle　＋　 Plug

CM09-R25 □

CM09-P25 □

(116.5)

(71)

Item

Contact

Position No.

Applicable Contact

P/N (100pcs/1 bag)

Applicable Wire

　Hand Tool

　　 P/N

Conductor Size

Pin Contact

1 , 2

CM09-#20PC-100

20 〜 22AWG

357J-50481T

3〜25

CM09-#22PC-100

24 〜 28AWG

357J-50482T

Socket Contact

1 , 2

CM09-#20SC-100

20 〜 22AWG

357J-50481T

3〜25

CM09-#22SC-100

24 〜 28AWG

357J-50482T

Reel Contacts for Semi-Automatic Tool

Item

Contact

Position No.

Applicable Contact

P/N (10000pcs/1 bag)

Applicable Wire

Semi-Automatic

　Tool P/N

Conductor Size

Pin Contact

1 , 2

CM09-#20PC-10000

20 〜 22AWG

AP-A50457T

3〜25

CM09-#22PC-10000

24 〜 28AWG

AP-A50458T

Socket Contact

1 , 2

CM09-#20SC-10000

20 〜 22AWG

AP-A50457T

3〜25

CM09-#22SC-10000

24 〜 28AWG

AP-A50458T

■ Contact Removal Tool

Ｐ / Ｎ：357J-51374T
