AD8227
Rev. 0 | Page 17 of
24
20mV/DIV
4µs/DIV
20mV/DIV
20µs/DIV

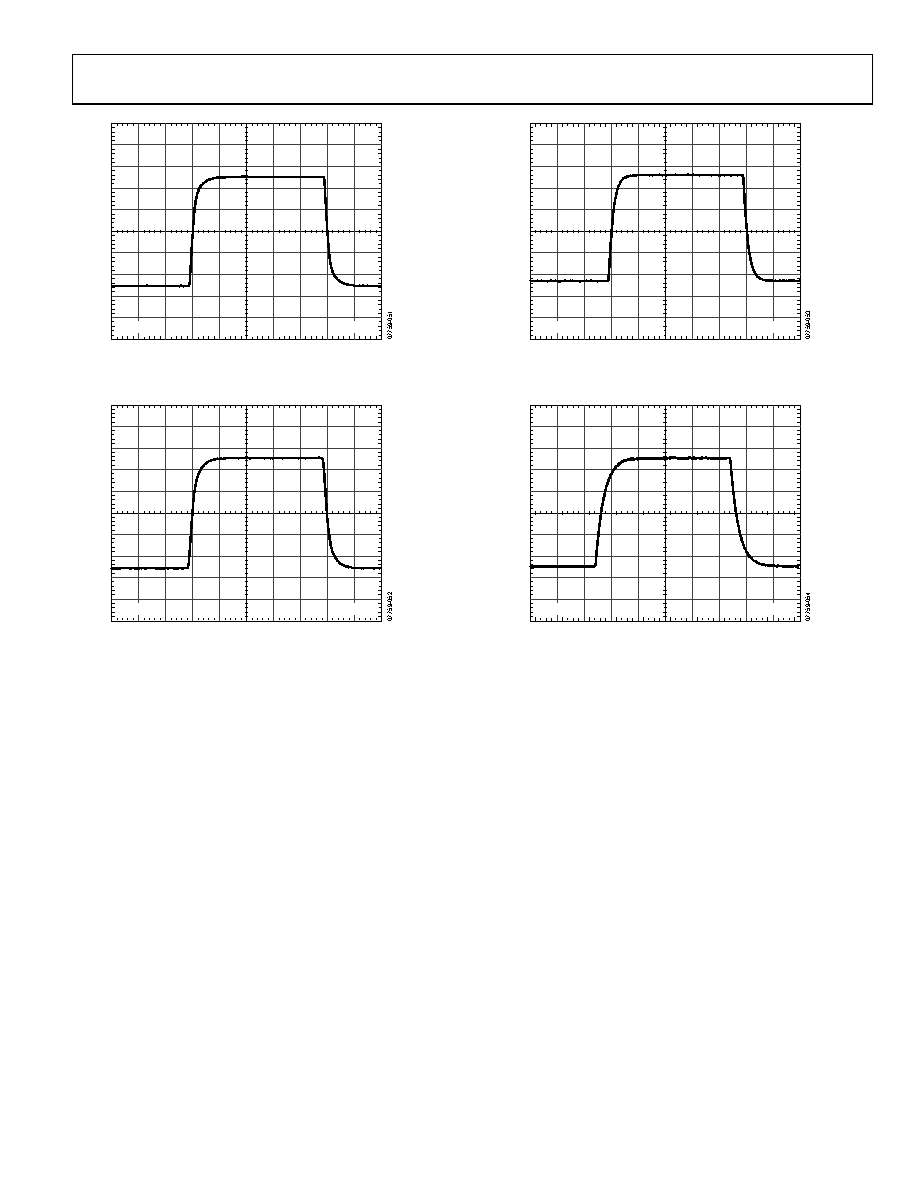

Figure 51. Small-Signal Pulse Response, G = 5, RL = 10 kΩ, CL = 100 pF
20mV/DIV
4µs/DIV
Figure 52. Small-Signal Pulse Response, G = 10, RL = 10 kΩ, CL = 100 pF
Figure 53. Small-Signal Pulse Response, G = 100, RL = 10 kΩ, CL = 100 pF
20mV/DIV
100µs/DIV
Figure 54. Small-Signal Pulse Response, G = 1000, RL = 10 kΩ, CL = 100 pF
