ADL5331

Rev. 0 | Page 7 of 16

TYPICAL PERFORMANCE CHARACTERISTICS

VS = 5 V; TA = 25°C; M/A-COM ETC1-1-13 1:1 balun at input and output for single-ended 50 Ω match.

–5

–10

–15

–20

–1

–2

–3

–4

0.1

0.3

0.5

0.7

0.9

1.1

1.3

VGAIN (V)

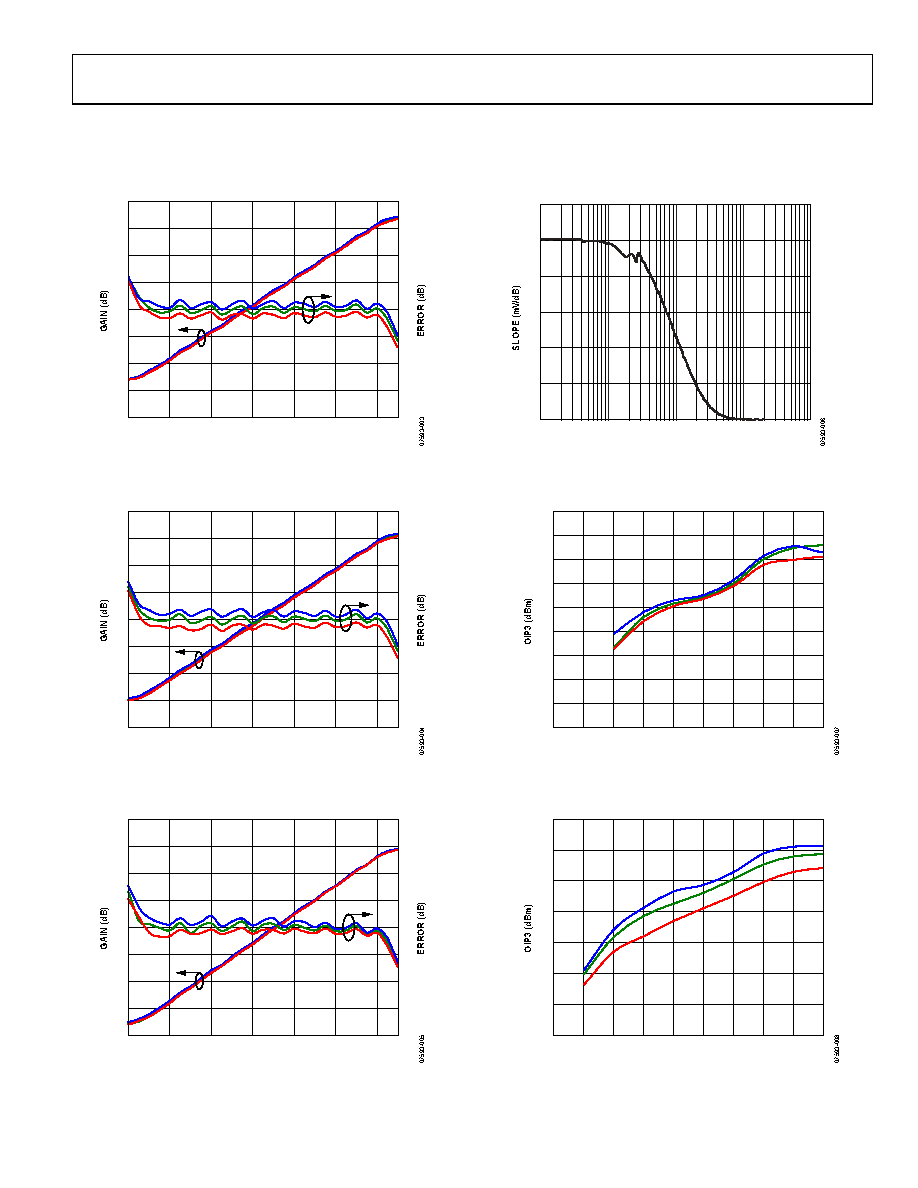

Figure 3. Gain and Gain Law Conformance vs. VGAIN

over Temperature at 100 MHz

–5

–10

–15

–20

–1

–2

–3

–4

0.1

0.3

0.5

0.7

0.9

1.1

1.3

VGAIN (V)

Figure 4. Gain and Gain Law Conformance vs. VGAIN

over Temperature at 400 MHz

–5

–10

–15

–20

–1

–2

–3

–4

0.1

0.3

0.5

0.7

0.9

1.1

1.3

VGAIN (V)

Figure 5. Gain and Gain Law Conformance vs. VGAIN

over Temperature at 900 MHz

FREQUENCY (MHz)

0.1

100

Figure 6. Gain Slope vs. Frequency, RFIN = −20 dBm @ 500 MHz, VGAIN = 1 V

0.5

0.6

0.7

0.8

0.9

1.0

1.1

1.2

1.3

1.4

VGAIN (V)

Figure 7. Output IP3 vs. VGAIN at 100 MHz

0.5

0.6

0.7

0.8

0.9

1.0

1.1

1.2

1.3

1.4

VGAIN (V)

Figure 8. Output IP3 vs. VGAIN at 400 MHz
