EVALUATION BOARD

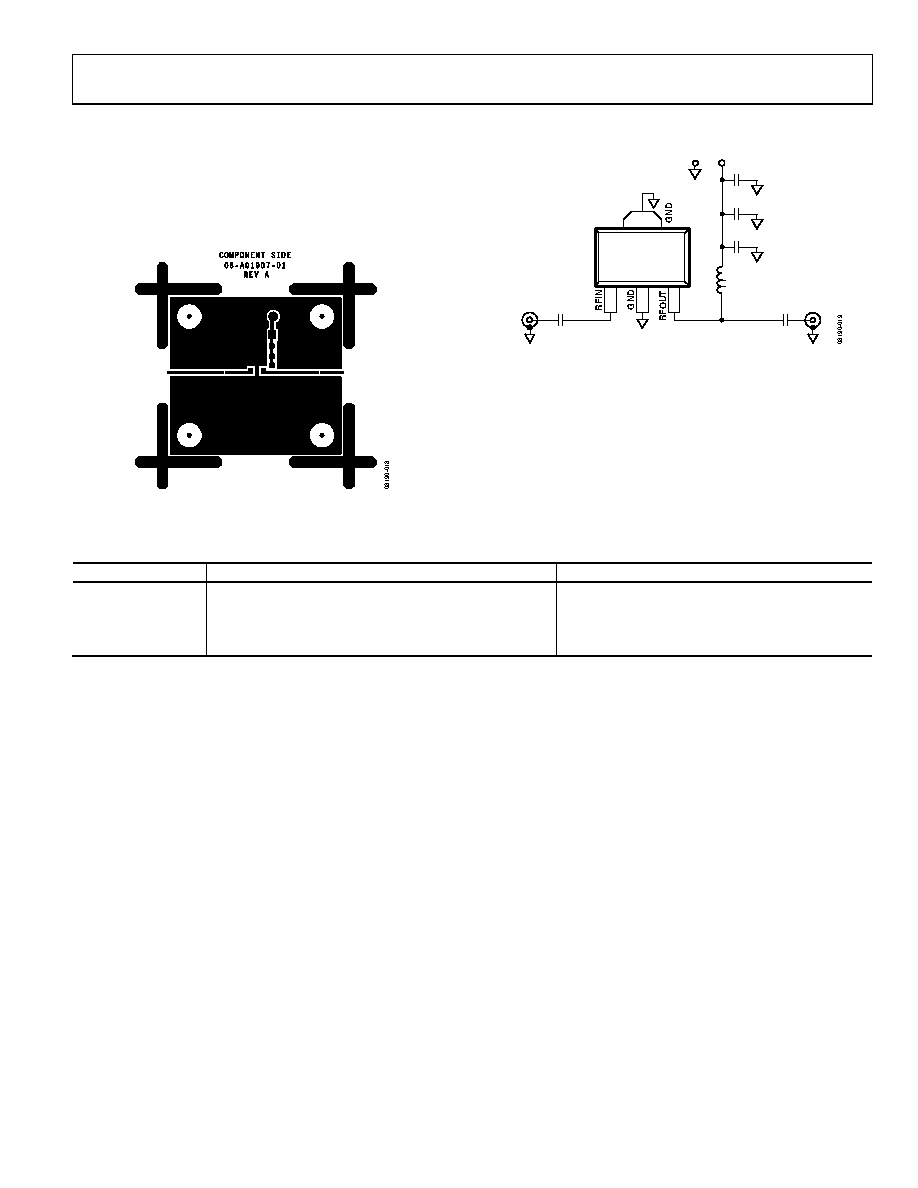

Figure 19 shows the schematic for the ADL5602 evaluation

board. The board is powered by a single 5 V supply.

The components used on the board are listed in Table 6.

Power can be applied to the board through clip-on leads

(VCC and GND).

Figure 18. Evaluation Board Layout (Top)

1

2

3

ADL5602

C6

1µF

L1

470nH

GND

RFIN

RFOUT

(2)

C5

1.2nF

C4

68pF

C2

0.1µF

C1

0.1µF

VCC

Figure 19. Evaluation Board Schematic

Table 6. Evaluation Board Configuration Options

Component

Description

Default Value

C1, C2

AC-coupling capacitors

0.1 μF, 0402

L1

DC bias inductor

470 nH, 0603 (Coilcraft 0603LS-NX or equivalent)

VCC and GND

Clip-on terminals for power supply

C4, C5, C6

Power supply decoupling capacitors

C4 = 68 pF, 0603; C5 = 1.2 nF, 0603; C6 = 1 μF, 1206
