XFP Connector

SPT Series / 10Gbps

XFP

Conforming

Standard

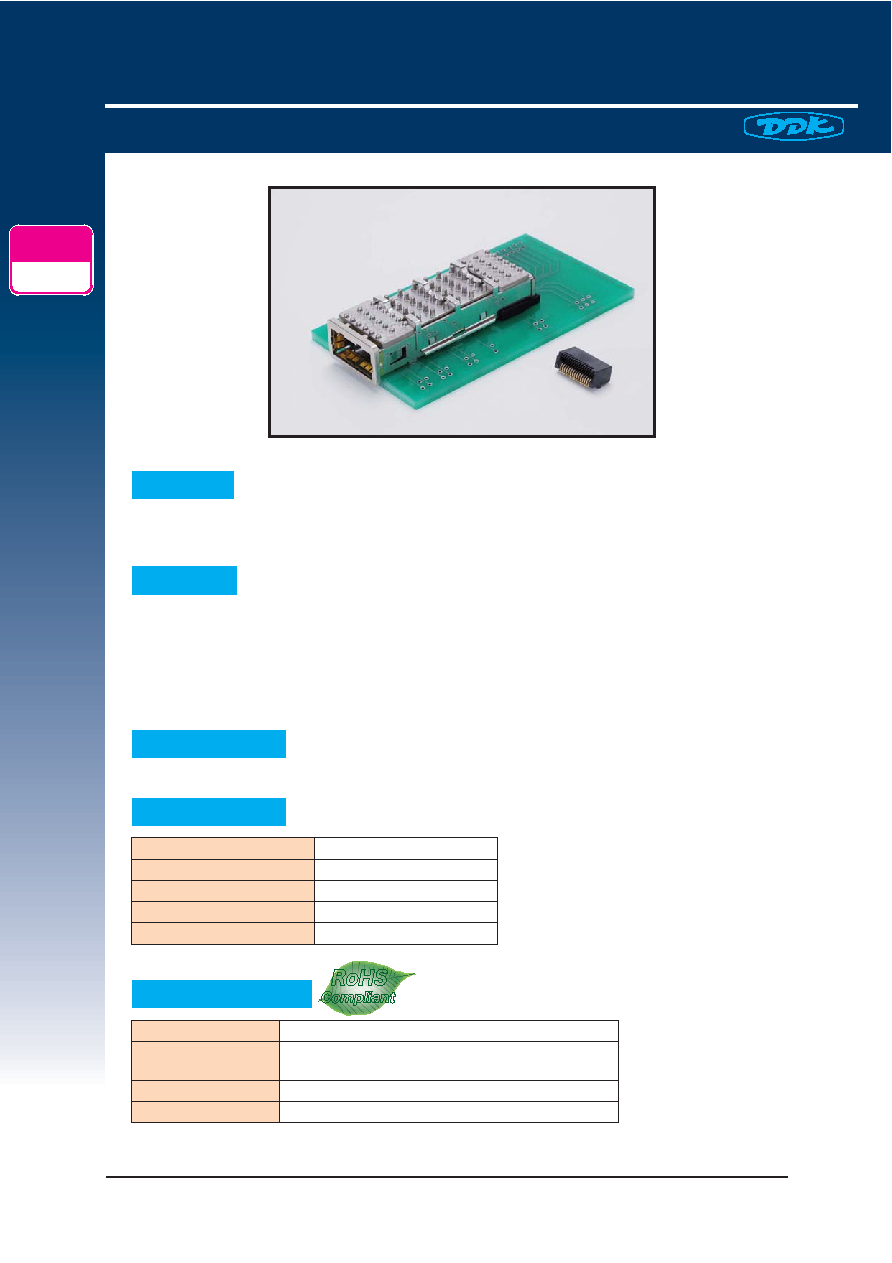

・Right Angle 0.8mm pitch, 30 pins SMT connector

・Excellent EMI shield

・Cage assembly is press-fit mounting and serves as a guide rail for transceivers.

・4.2mm and 6.5mm height heat radiation pins are available.

・RoHS Compliant

10G Fiber Channel, 10G Ethernet, High-end Server

Item

Material/Finish

Contact

Copper Alloy/ Contact Area: Au over Ni Plating

Tail Area: Au(Flash) over Ni Plating

Housing

350V AC(r.m.s.) for 1 minute

Cage, Clip, Heat Sink

30m Ω max.

SPT series is a connector and cage assembly which is compatible to 10Gigabit Small Form-factor

Pluggable(XFP) specification of Multi Source Agreement(MSA) for 10G optical transceiver.

090703

Rated Voltage

120V AC(r.m.s.)

Rated Current

0.5A / Contact

Dielectric Withstanding voltage

350V AC(r.m.s.) for 1 Minute

Insulation Resistance

100M Ω Min. at 250V DC

Contact Resistance

30m Ω Max.

◆ OUTLINE

◆ FEATURE

◆ APPLICATIONS

◆ SPECIFICATION

◆ MATERIAL/FINISH
