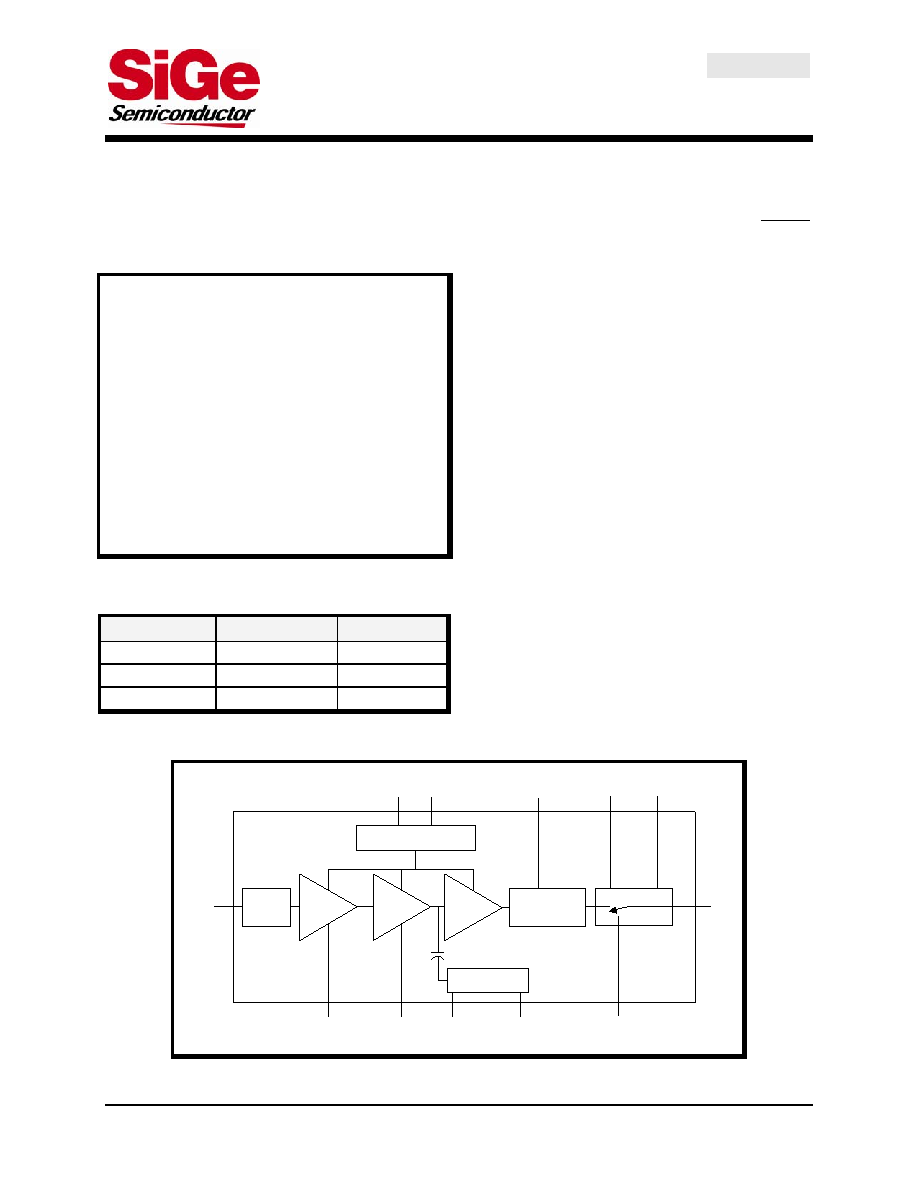

SE2550BL

2.4 GHz Low Power Front End Module

Preliminary

Applications

Portable WLAN – Cell phones, PDA’s

DSSS 2.4 GHz WLAN (IEEE802.11b)

OFDM 2.4 GHz WLAN (IEEE802.11g)

Features

Includes: PA, 50 ohm matching, Power detector,

harmonic filter and SPDT Switch.

802.11g Output Power

+ 17 dBm, EVM = 3.0 %, ICC = 125 mA

802.11b Output Power

+ 19 dBm, ACPR = -40 dBr, ICC = 150 mA

28 dB Gain

Robust, selectable slope, power detector with

~1.5 dB variation over 2:1 mismatch

Integrated power amplifier enable pin (VEN)

Single supply voltage: 2.7 V to 3.6 V

Lead free and RoHs compliant

Small, lead free package, 18 pin 4 mm x 4.5 mm

x 0.6 mm QFN, MSL3

Ordering Information

Type

Package

Remark

SE2550BL

18-QFN

Samples

SE2550BL-R

18-QFN

Tape and Reel

SE2550BL-EK1

Evaluation Kit

Standard

Product Description

The SE2550BL is a 2.4 GHz front end module

designed for use in the 2.4 GHz ISM band for portable

wireless LAN applications.

The device offers high

efficiency at the required output powers to ensure

longer battery life for cellphone, PDA and other

portable applications.

The SE2550BL is highly integrated, allowing for a

smaller footprint and simple design.

The device

includes a power amplifier, digital enable control for

device on/off control, T/R Switch, harmonic filter and

50 ohm matching on all I/O. With the digital enable

control, the device can be directly connected to a

CMOS baseband or transceiver.

The SE2550BL temperature compensated power

detector has two selectable power detectors slopes,

positive and negative.

This allows easy use with

multiple chipsets. The detector is also highly immune

to mismatch at its output with less than 1.5 dB of

variation with a 2:1 mismatch.

Functional Block Diagram

V C C 0

V D E T OUT

ANT

RF I N

V C C 1

V C C 2

Stage 2

Stage 1

Stage 3

Bias Generator

Detector

(with Switch)

V EN

50 Ohm

Match

V C C 3

Filtering

RX OU T

SPDT

C1

C2

Slope SEL

Figure 1: SE2550BL Functional Block Diagram

65-DST-01

Rev 1.3

May-26-2009

1 of 2

QA040506
