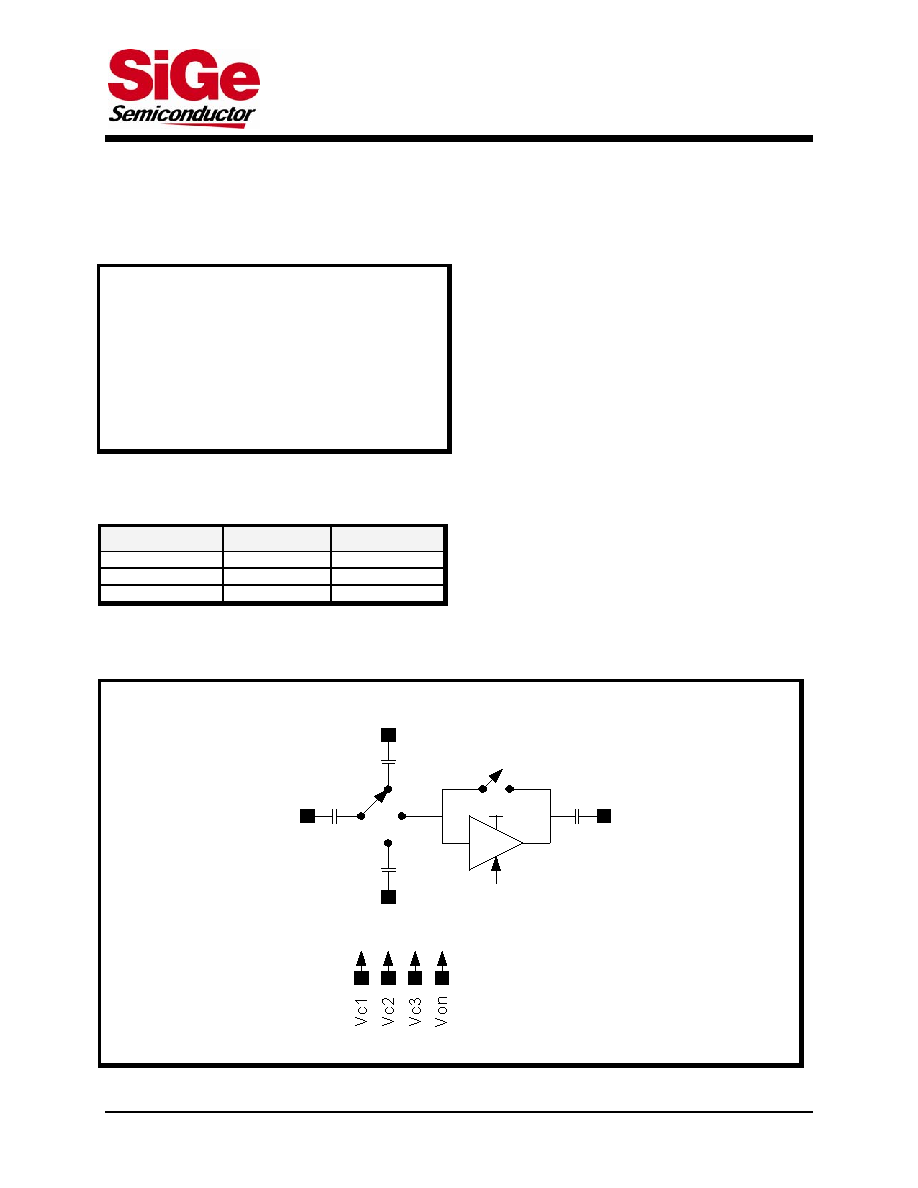

SE2600S
2.4 GHz WLAN Switch/LNA Front End
Preliminary
Applications
IEEE802.11b DSSS WLAN
IEEE802.11g,n OFDM WLAN
Embedded applications
Features
Integrates SP3T Switch and LNA with by-pass
mode
12 dB gain,
1.8 dB NF
0.5 dB Bluetooth path loss
1.07x1.05x 0.38mm, 250 um pitch, SnAg solder
bump
Lead free, Halogen free and RoHS compliant
Ordering Information
Part No.
Package
Remark
SE2600S
11 pin CSP
Samples
SE2600S-R
11 pin CSP
Tape and Reel
SE2600S-EK1
N/A
Evaluation kit
Product Description
The SE2600S is a single chip integrated front-end
module (FEM) with a Bluetooth port to complement
WLAN chipsets with integrated Power Amplifier. The
FEM integrates SP3T Switch and Low Noise Amplifier
with bypass mode in an ultra compact package. It is
capable of switching between WLAN RX, WLAN TX
and Bluetooth™
Functional Block Diagram
RFC
BT
TX
RX
1
2
3
4
123
4
4
Vdd
Figure 1: Functional Block Diagram
DST-00292 Rev 1.4
October-09-2009
1 of 12
