UP1B-100-R 데이터시트(PDF) 4 Page - Cooper Bussmann, Inc.

부품명 UP1B-100-R
상세설명  Miniature surface mount design
PDF  7 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  COOPER [Cooper Bussmann, Inc.]
홈페이지  http://www.cooperbussmann.com
Logo COOPER - Cooper Bussmann, Inc.

UP1B-100-R 데이터시트(HTML) 4 Page - Cooper Bussmann, Inc.

  UP1B-100-R Datasheet HTML 1Page - Cooper Bussmann, Inc. UP1B-100-R Datasheet HTML 2Page - Cooper Bussmann, Inc. UP1B-100-R Datasheet HTML 3Page - Cooper Bussmann, Inc. UP1B-100-R Datasheet HTML 4Page - Cooper Bussmann, Inc. UP1B-100-R Datasheet HTML 5Page - Cooper Bussmann, Inc. UP1B-100-R Datasheet HTML 6Page - Cooper Bussmann, Inc. UP1B-100-R Datasheet HTML 7Page - Cooper Bussmann, Inc.
Zoom Inzoom in Zoom Outzoom out
 4 / 7 page
background image
14.3
10.7
5.1
1.5 Dia.
16.0
6.8
5.4
SECTION A-A
A
A
1.75
24
11.5
2.0
4.0
Direction of feed
Dimensions in millimeters.
1
2
UP2B Series
ACTUAL SIZE
UNI-PAC 2B
13.5
5.8
4.0
2.0
16.0
1.75
14.2
1
2
1.5 Dia.
7.7
SECTION A-A
A
A
28.4
Direction of feed
Dimensions in millimeters.
19.6
5.9
32
UP3B Series
15.3
11.1
4.0
2.0
24.0
1.75
14.2
1.5 Dia.
9.0
SECTION A-A
A
A
28.4
Direction of feed
Dimensions in millimeters.
22.3
7.2
32
1
2
UP4B Series
ACTUAL SIZE
UNI-PAC 3B
ACTUAL SIZE
UNI-PAC 4B

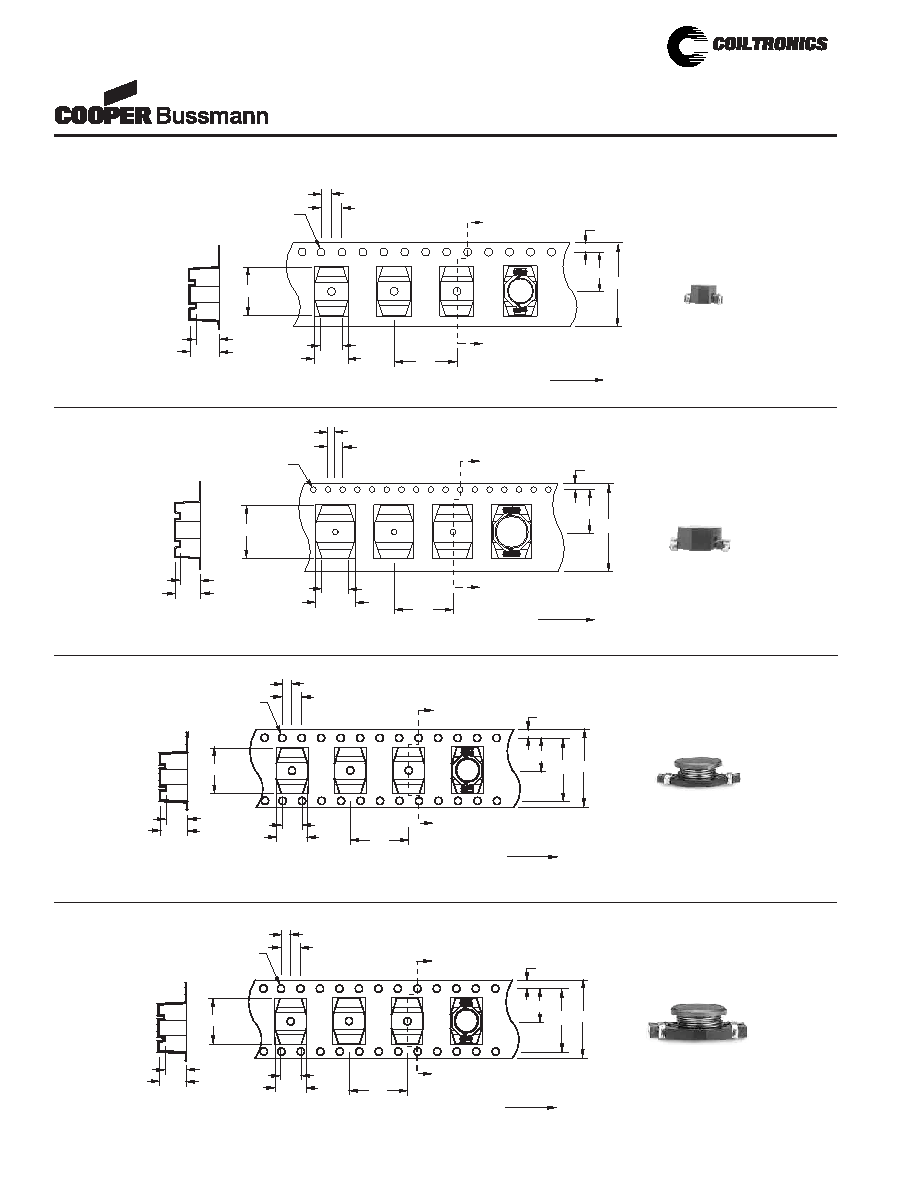

Packaging Information
6.4
2.3
4.0
2.0
12.0
1.75
16
7.5
1.5 Dia.
5.6
4.4
SECTION A-A
9.3
A
A
Direction of feed
Dimensions in millimeters.
1
2
UP1B Series
ACTUAL SIZE
UNI-PAC 1B
®
UNI-PAC™
Power Inductors
(Surface Mount)
Parts packaged on 13" Diameter reel,
900 parts per reel.
Parts packaged on 13" Diameter reel,
550 parts per reel.
Parts packaged on 13" Diameter reel,
450 parts per reel.
Parts packaged on 13" Diameter reel,
275 parts per reel.



Html Pages

1 2 3 4 5 6 7


데이터시트 다운로드

Go To PDF Page


링크 URL
