TPR0441BX–SMS–09/09
ATVaultIC460
3.5

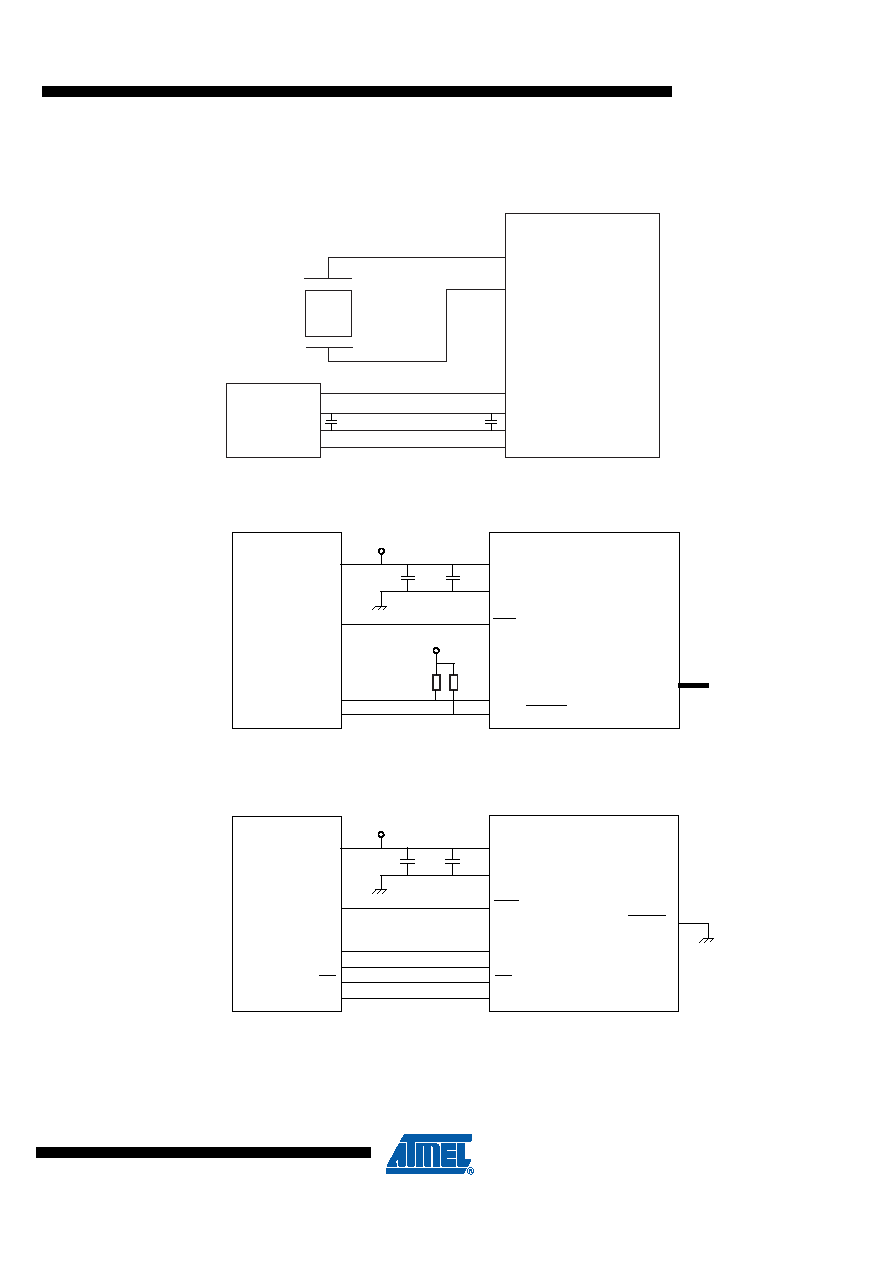

Connexions for Typical Application
Figure 3-3.
ATVaultIC460 connexions for USB typical application
Figure 3-4.
ATVaultIC460 connexions for I2C typical application
Figure 3-5.
ATVaultIC460 connexions for SPI typical application
USB
CONNECTOR
AT90SC6464C-USB
ATVaultIC460
USB_XOUT
USB_XIN
USB_DM
USB_DP
VBUS
GND
48 MHz
RESONATOR
C1
C2
C1
VCC
C2
R1
RST
SCL
SDA / SPI_SEL
SCL
SDA
RESET
VCC
VCC
ATVaultIC460
HOST
GND
R2
VCC
A0..A4
Address Selection
C1
VCC
C2
RST
RESET
VCC
VCC
ATVaultIC460
HOST
GND
SPI_SEL
MISO
MOSI
SCK
MOSI
MISO
SCK
SS
SS
