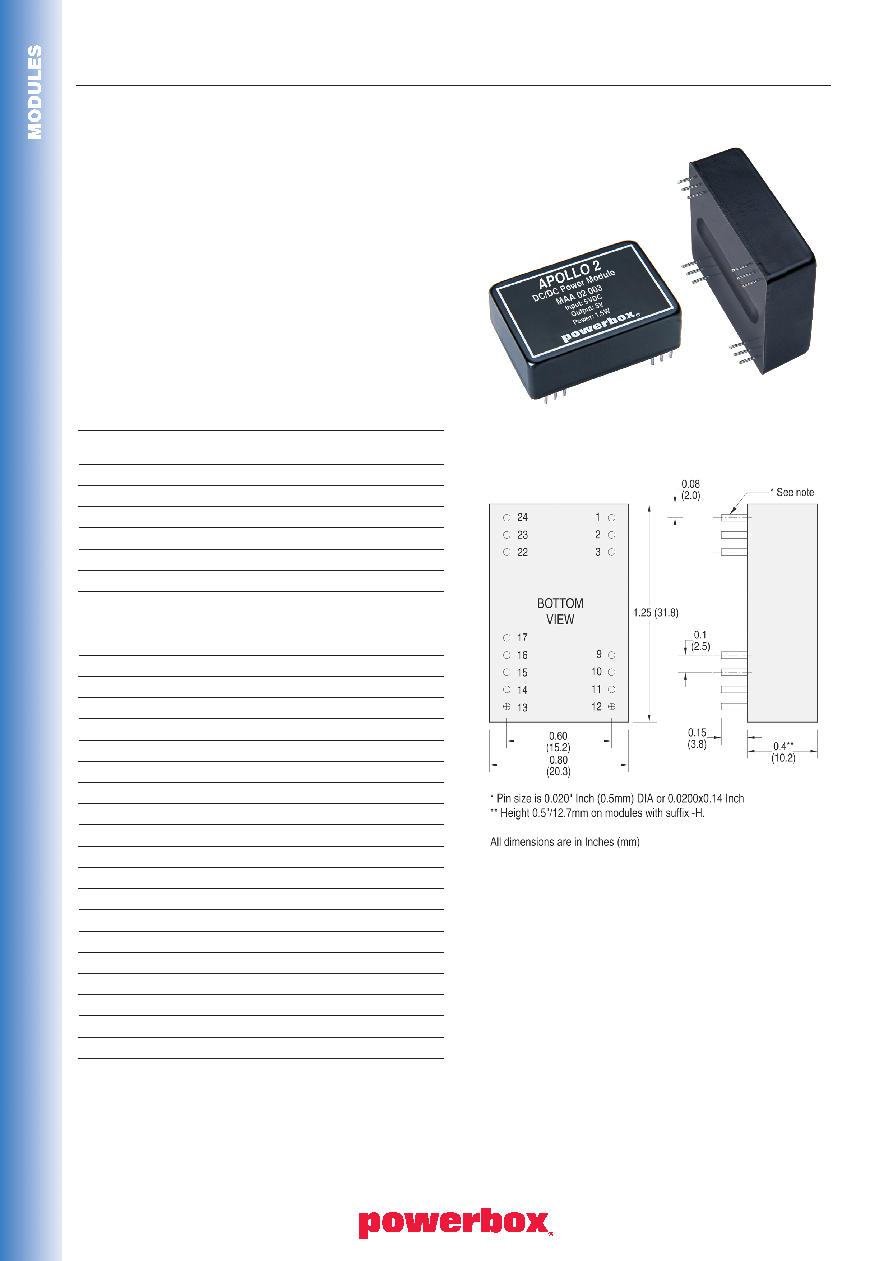

152

MAA 02 Series

1.5

W A TTS

SINGLE

&

DUAL

OUTPUT

DC/DC

INDUSTRIAL

Features

•

Regulated output

•

500 VDC isolation voltage

•

24-pin DIP Package

•

Low ripple and noise

Specifications

INPUT

Nominal voltage

5V, 12V, 24V, 48V ±10 %.

Voltage range

±10 %.

Isolation

500VDC (3kV available).

Filter

PI-type.

OUTPUT

Power

1.5W.

Regulation

Line:±0.3%.

Load:±0.5%

10% min load required to meet specification.

Setting accuracy

±4%.

Ripple and noise

50mV p-p max.

Short circuit protection

Short term.

Temp coefficient

±0.02 %/°C.

Efficiency

50% typ.

ENVIRONMENTAL

Ambient temperature

–25°C to +71°C.

Storage temperature

–40°C to +100°C.

Cooling

Convection.

GENERAL

MTTF

200 000 hours at 25°C ambient.

Switching frequency

Min. 20 kHz.

Equivalent capacitance

30 pF.

Case

Non-conductive black plastic.

Dimensions (H x W x L)

10.2 x 20.3 x 31.8 mm.

Weight

12g max.

STANDARDS

C-Tick

AS/NZS CISPR11 Group 1 Class A

EMI standards

EN55022 Class B
