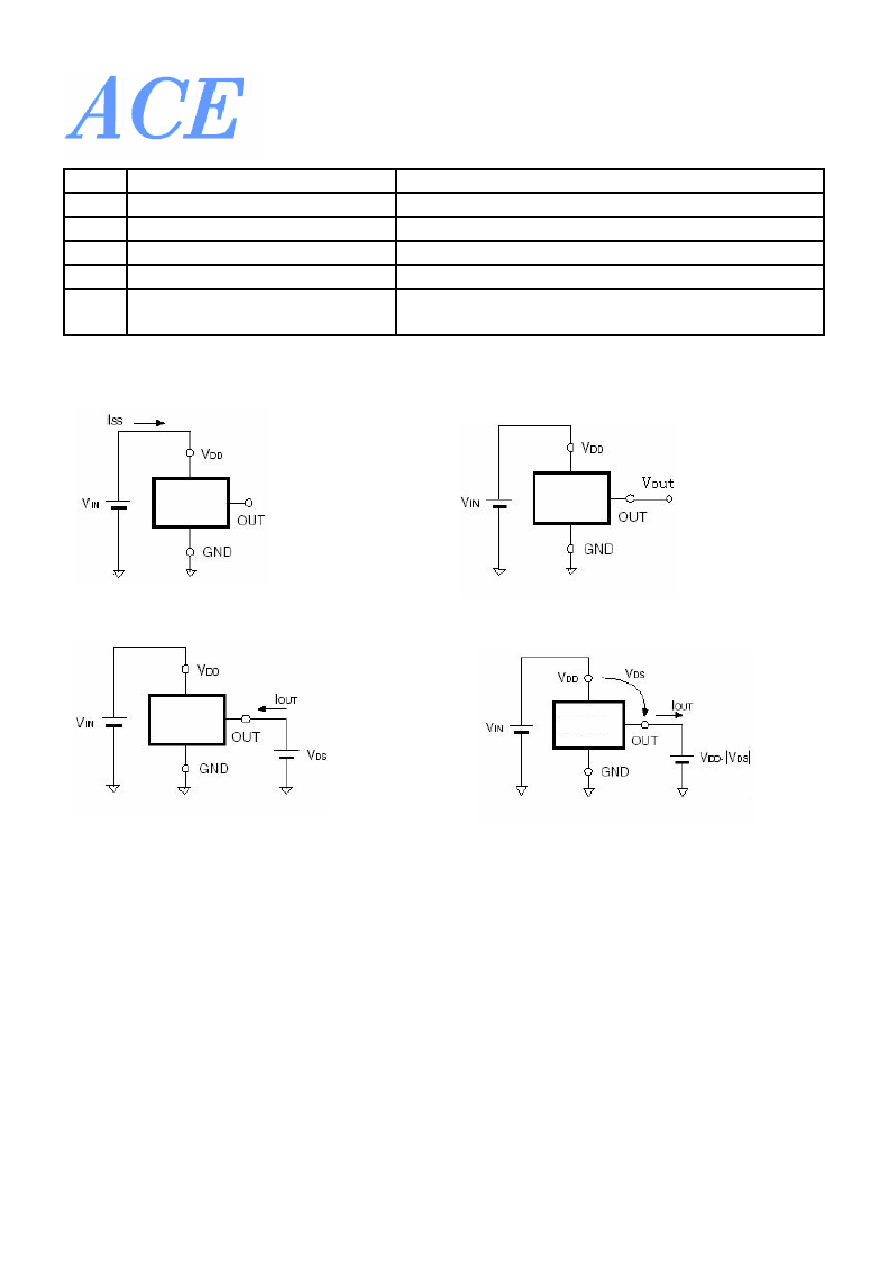

ACE301
                        Technology
High-precision Low Voltage Detector
VER 1.3
9
No.
Operation status
Output status
Ⅰ
VDD>-VDET
Output voltage is equal to the supply voltage
Ⅱ
VDD drops below – VDET
Output voltage equals to GNP level
Ⅲ
VDD drops further below VDDL
Output voltage is undefined
Ⅳ
VDD rises above VDDL
Output voltage equals to GNP level
Ⅴ
VDD rises above + VDET
Output voltage equals to supply voltage,
VHYS=(+VDET)-(-VDET)
Test circuits
(1) Supply current test circuit
(2) Detector threshold test circuit
ACE301
ACE301
(3) NCH Drive Output Current Test Circuit
(4) PCH Drive Output Current Test Circuit
ACE301
ACE301
