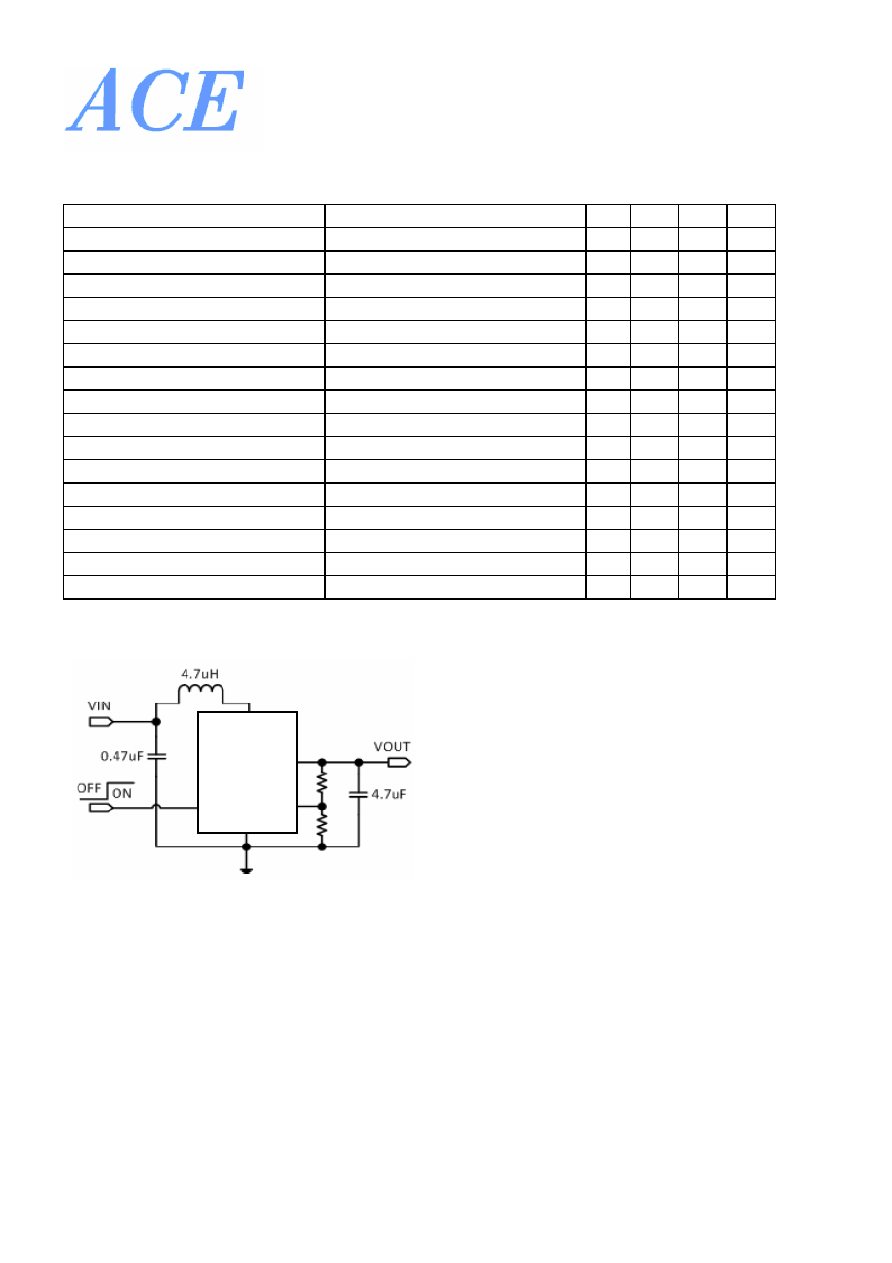

ACE708
                        Technology
300mA Iout, 0.85V startup, 1MHz, Synchronous Boost Converter
VER 1.2
4
Electrical Characteristics
Test condition: Vin=1.8V, Vout=3.3V, TA=25
OC, unless otherwise specified.
Parameter
Test Conditions
Min
Typ
Max
Unit
Minimum Input Voltage
0.7
V
Startup Voltage
0.85
1.1
V
Dropout Voltage, Vout≧2.8V
FB=OUT
3.3
V
FB=G
5
V
FB Feedback Voltage
Vout=2.5 to 5V
0.6
V
FB Input Current
50
nA
Output Voltage Range
External divider
25
5
V
Quiescent Current at OUT
VFB=0.7V
25
uA
Shutdown Supply Current at OUT
EN=G
0.1
1
uA
NMOS Switch On Resistance
Isw=100mA
0.3
Ω
PMOS Switch On Resistance
Isw=100mA
0.7
Ω
NMOS Switch Current Limit
1
A
SW Leakage Current
Vout=5.5V, Vsw=0 or 5.5V, EN=G
1
uA
EN Input Current
1
uA
EN Input Voltage for “Low”
0.3
V
EN Input Voltage for “High”
0.6
V
Typical Application Circuit
SW
ACE708
OUT
EN
GND
