1

Subject to change without notice.

www.cree.com/ledlamps

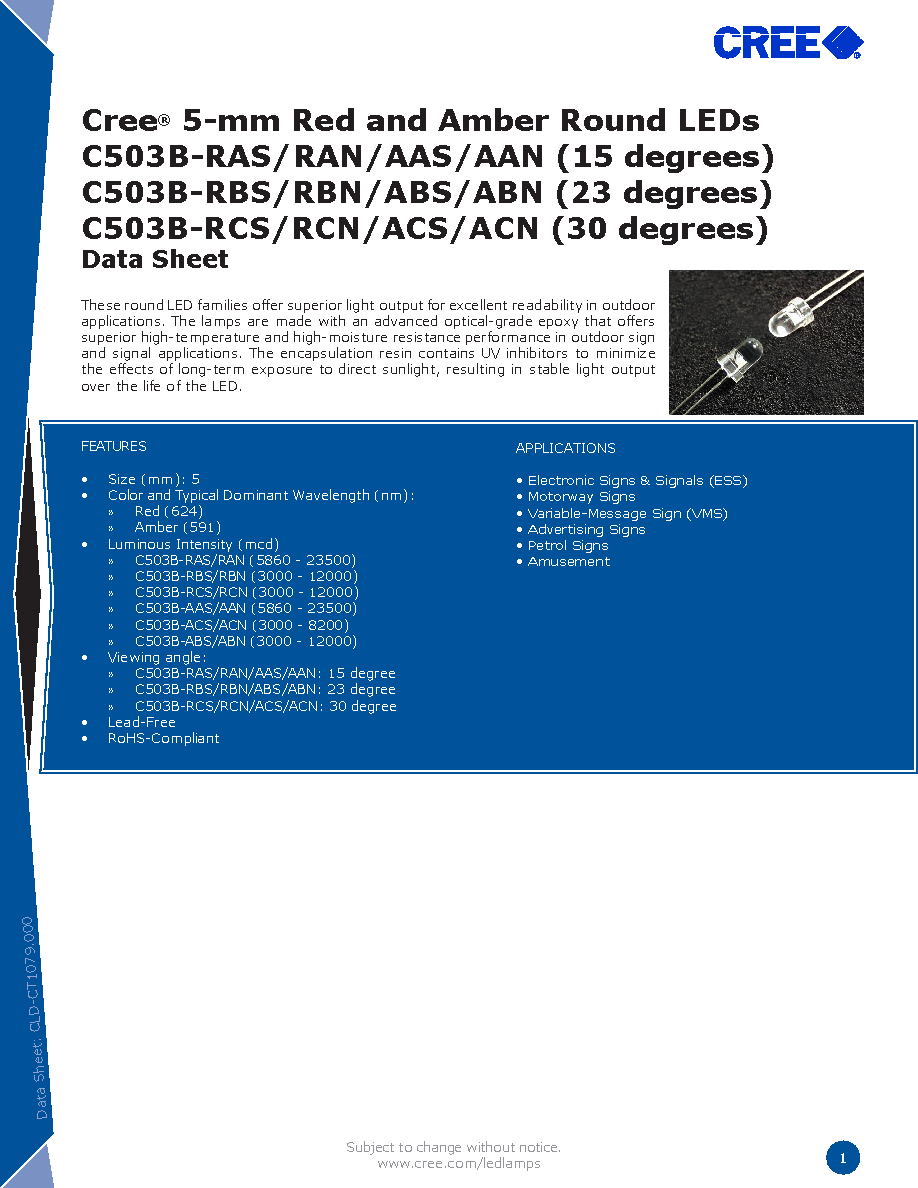

Cree® 5-mm Red and Amber Round LEDs

C503B-RAS/RAN/AAS/AAN (15 degrees)

C503B-RBS/RBN/ABS/ABN (23 degrees)

C503B-RCS/RCN/ACS/ACN (30 degrees)

Data Sheet

FEATURES

• Size (mm): 5

• Color and Typical Dominant Wavelength (nm):

»

Red (624)

»

Amber (591)

• Luminous Intensity (mcd)

»

C503B-RAS/RAN (5860 - 23500)

»

C503B-RBS/RBN (3000 - 12000)

»

C503B-RCS/RCN (3000 - 12000)

»

C503B-AAS/AAN (5860 - 23500)

»

C503B-ACS/ACN (3000 - 8200)

»

C503B-ABS/ABN (3000 - 12000)

• Viewing angle:

»

C503B-RAS/RAN/AAS/AAN: 15 degree

»

C503B-RBS/RBN/ABS/ABN: 23 degree

»

C503B-RCS/RCN/ACS/ACN: 30 degree

• Lead-Free

• RoHS-Compliant

APPLICATIONS

•ElectronicSigns&Signals(ESS)

•MotorwaySigns

•Variable-MessageSign(VMS)

•AdvertisingSigns

•PetrolSigns

•Amusement

These round LED families offer superior light output for excellent readability in outdoor

applications. The lamps are made with an advanced optical-grade epoxy that offers

superior high-temperature and high-moisture resistance performance in outdoor sign

and signal applications. The encapsulation resin contains UV inhibitors to minimize

the effects of long-term exposure to direct sunlight, resulting in stable light output

over the life of the LED.
