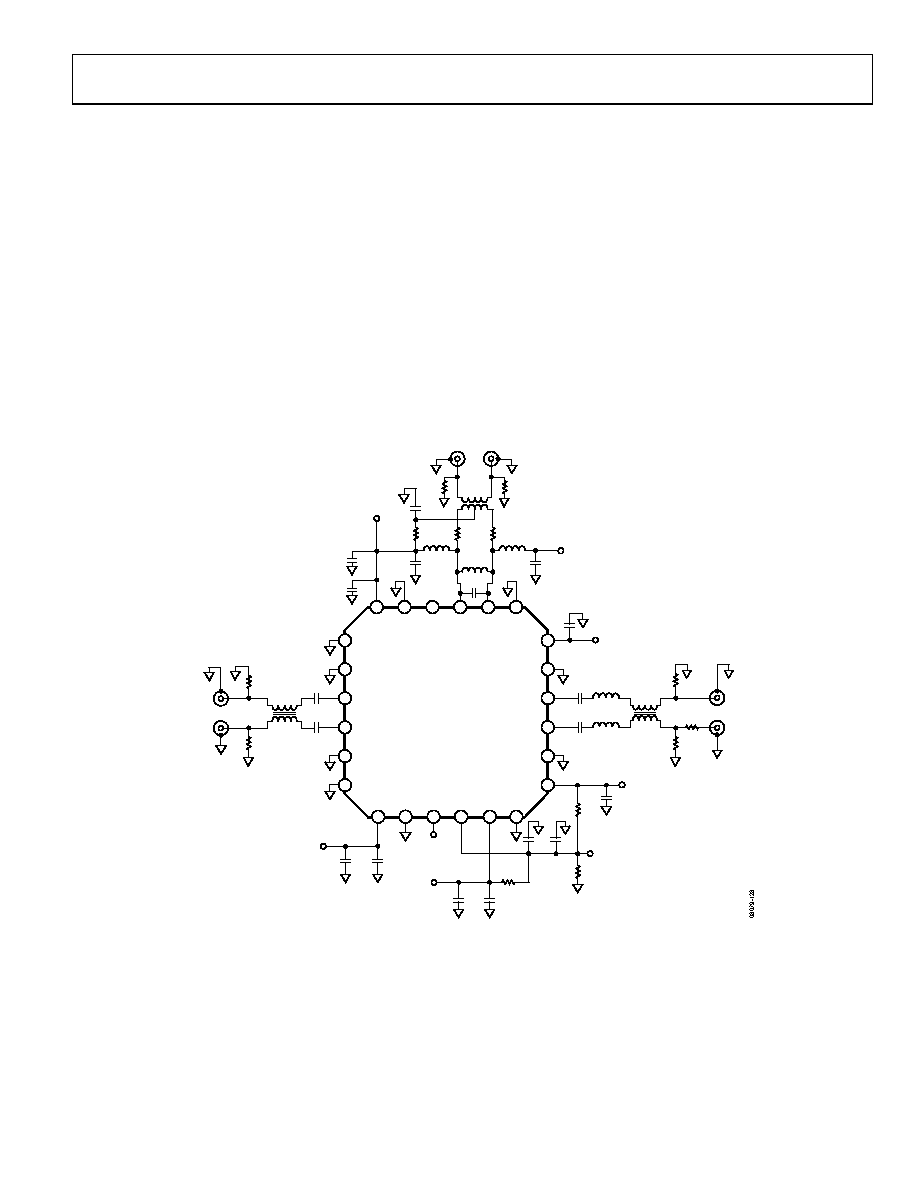

13 / 20 page ![]() ADL5801 Rev. 0 | Page 13 of 20 APPLICATIONS INFORMATION BASIC CONNECTIONS The ADL5801 is designed to translate between radio frequencies (RF) and intermediate frequencies (IF). For both upconversion and downconversion applications, RFIP (Pin 16) and RFIN (Pin 15) must be configured as the input interfaces. IFOP (Pin 20) and IFON (Pin 21) must be configured as the output interfaces. Individual bypass capacitors are needed in close proximity to each supply pin (Pin 7, Pin 13, Pin 18, and Pin 24), the VSET control pin (Pin 10), and the DETO detector output pin (Pin 11). When the on-chip detector is chosen to form a closed loop, automatically controlling the VSET pin, R7 can be populated with a 0 Ω resistor. Alternatively, simply use a jumper between the VSET and DETO test points for evaluation. Figure 28 illustrates the basic connections for ADL5801 operation. RF AND LO PORTS The RF and LO input ports are designed for a differential input impedance of approximately 50 Ω.Figure 29 and Figure 30 illustrate the RF and LO interfaces, respectively. It is recommended that each of the RF and LO differential ports be driven through a balun for optimum performance. It is also necessary to ac couple both RF and LO ports. Using proper value capacitors may help improve the input return loss over desired frequencies. Table 4 lists the recommended components for various RF and LO frequency bands. The characterization data is available in the Typical Performance Characteristics section. GND VPLO ENBL VSET VPDT RFIP NC GND GND VPLO LOIP T2 T4 T7 T3 T6 T9 C4 C5 C50 C6 C1 C12 C18 C8 C10 C9 C2 C3 T1 T5 T8 C17 VPOS VSET R10 R9 R7 VPOS VPOS VPOS IFOP LOIP LOIN C7 VPOS DETO LOIN GND GND ADL5801 GND GND IFON DETO GND VPRF GND GND IFOP RFIN 24 1 2 3 4 5 7 8 9 10 11 12 6 18 17 16 15 14 13 23 22 21 20 19 IFON ENBL R12 R8 RFIP RFIN R4 R16 R14 C20 R50 C19 C13 L3 L1 L4 L5 L2 R3 R13 R11 R2 Figure 28. Basic Connections Schematic |
|
|
