 4 / 8 page
background image
Application information
STPS50U100C
4/8
Doc ID 16603 Rev 1

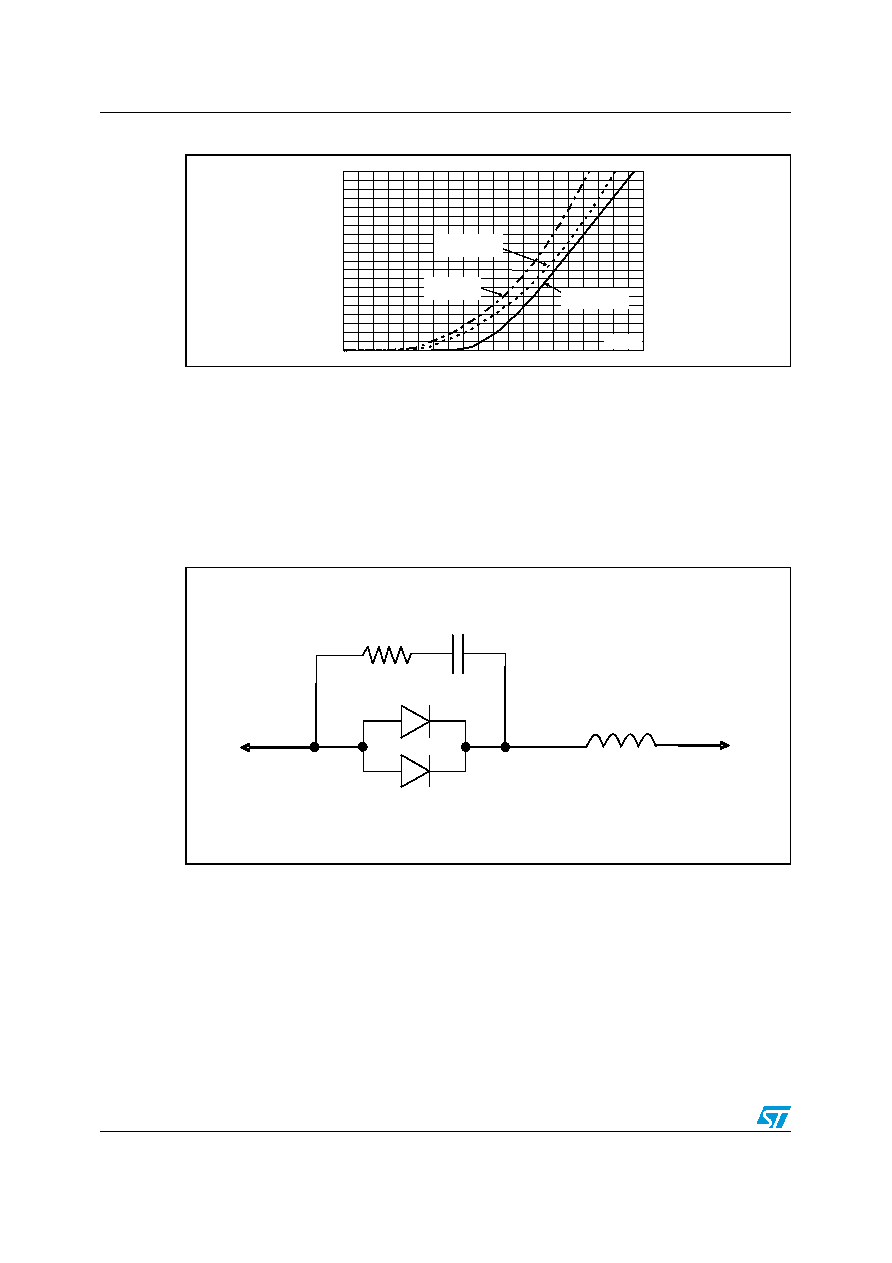

Figure 7.
Forward voltage drop versus forward current (per diode)
2
Application information
It is mandatory to ensure a peak reverse voltage below the VRRM absolute rating. Therefore,
it is recommended to use a RC clamping snubber circuit in parallel with the STPS50U100C
device.
Figure 8.
Application schematic
0
5
10
15
20
25
30
35
40
45
50
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
IFM(A)
VFM(V)
Tj = 25 °C
(Maximum value)
Tj = 125 °C
(Maximum value)
Tj = 125 °C
(Typical value)
STPS50U100C
DC/DC input
DC/DC output
R
C
