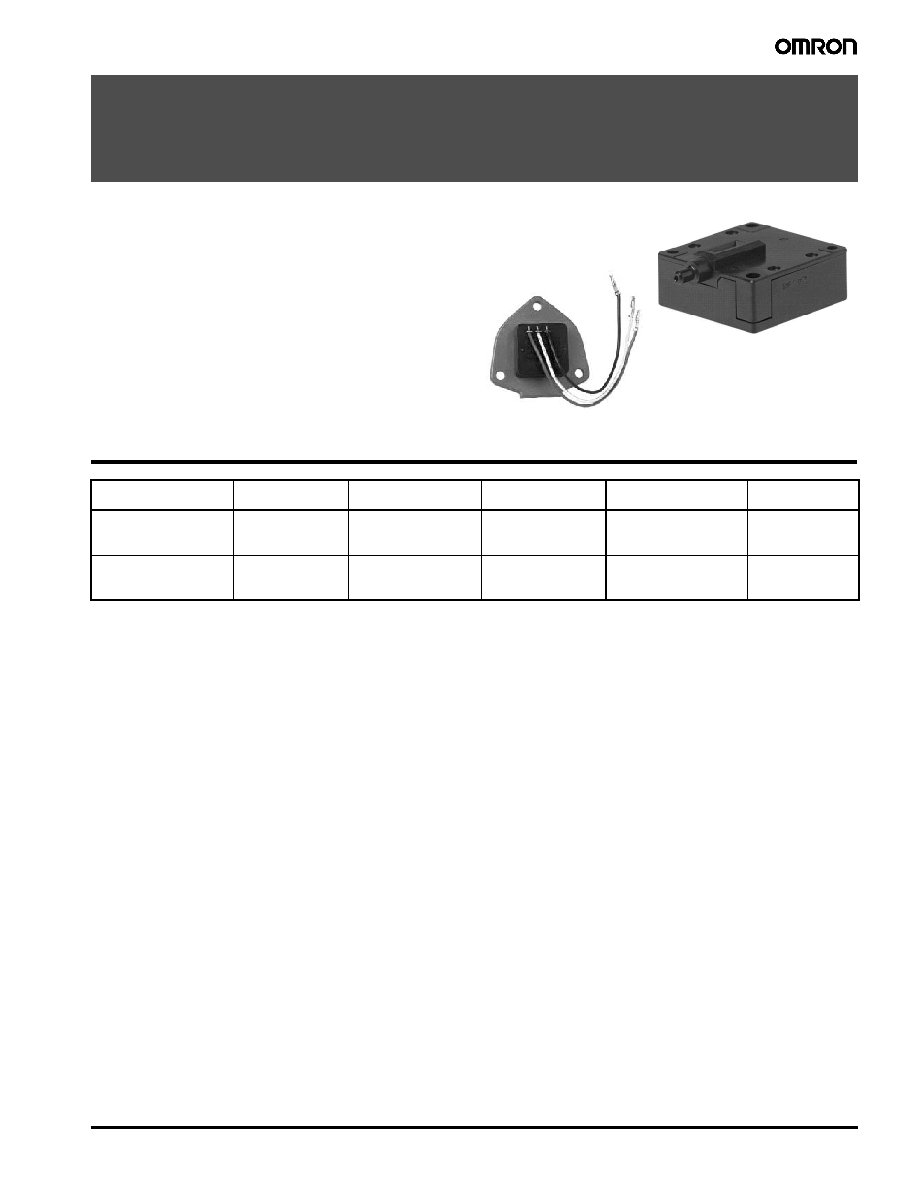

Solid State Pressure Sensors

D8M

1

Solid State Pressure Sensors

D8M

Solid State Pressure Sensors with Pulse or

Frequency Outputs

• Compact housing measures 30L x 30W x 12.4H mm.

• Accept 4 mm OD tubing (D8M-R1); 6 mm OD tubing for

D8M-D82.

• Chemical-resistant plastic (PBT) body.

• Metal shield mounted version (D8M-D82) available.

• IP40 enclosure rating for embedded applications.

Ordering Information

Operating pressure

range

Output signal

Output frequency

Power supply

voltage

Withstand pressure

Model

0 to 4.9 kPa

(0 to 0.71 psi)

Pulse count,

1 pulse/9.81 Pa

(1/0.0014 psi)

—

2.2 to 3.4 VDC with

regulator

19.6 kPa (2.84 psi) for 5

minutes

D8M-D82

0 to 196.13 Pa

(0 to 0.028 psi)

Frequency,

1 kHz/9.81 Pa

(1 kHz/0.0014 psi)

80 to 300 kHz

4.2 to 5.5 VDC with

regulator

3 kPa (0.435 psi) for 10

seconds

D8M-R1
