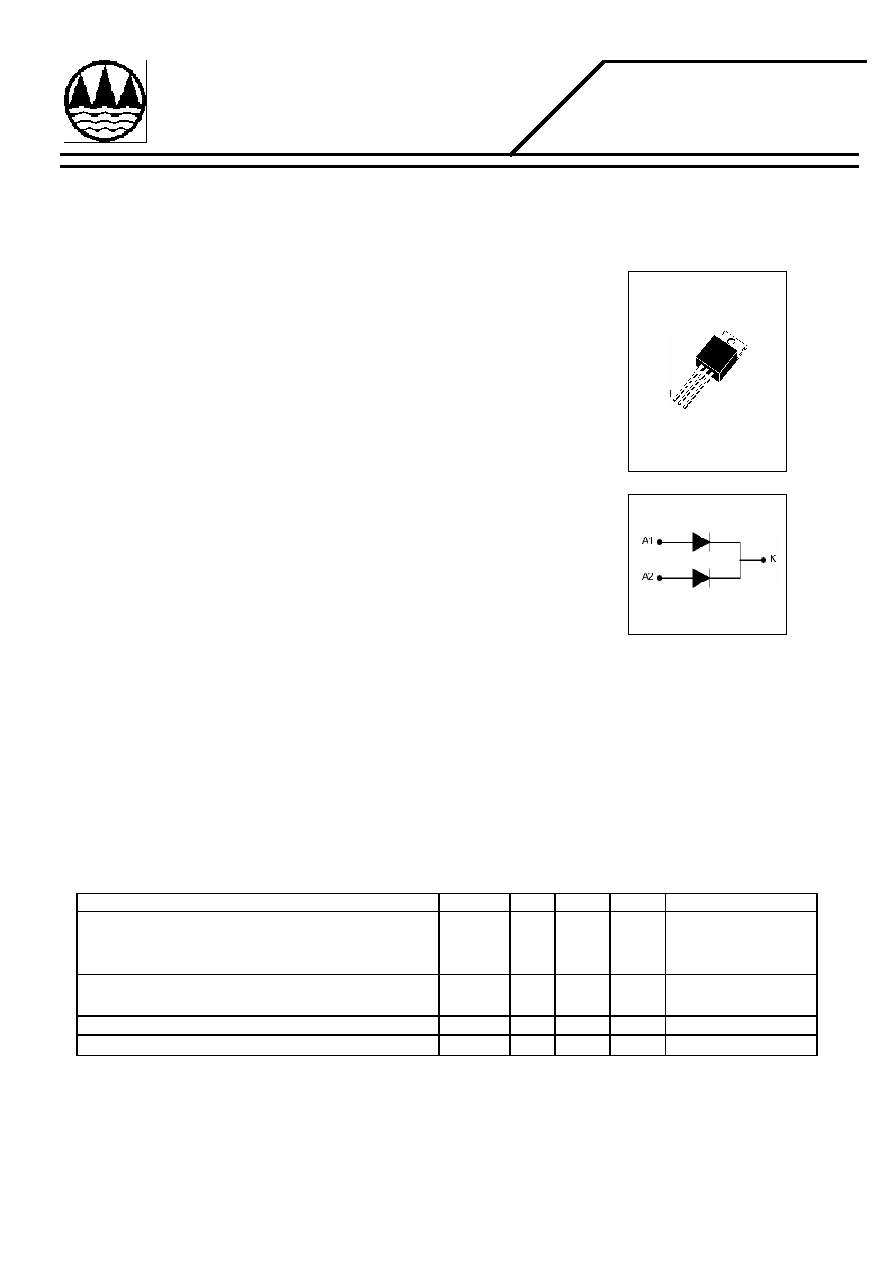

Shantou Huashan Electronic Devices Co.,Ltd.

10A SCHOTTKY BARREIER RECTIFIER

█　Features

█　Package

n

Metal of silicon rectifier,majority carrier conducton

n

Guard ring for transient protection

n

Low power loss, high efficiency

n

High current capability, low VF

n

High surge capacity

n

For use in low voltage,high frequency inverters,free whelling,

and polarity protection applications

█　Maximum Ratings

█ Electrical Characteristics @Ta=25℃ unless otherwise specified

Single phase,half wave,60Hz,resistive or inductive load.

For capacitive load,derate current by 20%.

Characteristic

Symbol

Min

Max

Unit

Condition

Forward Voltage Drop(Note 1)

VFM

0.7

0.84

0.57

V

IF=5A,TC=25℃

IF=10A,TC=25℃

IF=5A,TC=125℃

Peak Reverse Current

at Rated DC Blocking Voltage

IRM

0.1

15

mA

VR = VRRM TC=25℃

TC=125℃

Typical Junction Capacitance(Note 2)

Cj

170

pF

Typical Thermal Resistance Junction to Case(Note 3)

Rth-j

3.0

℃/W

NOTES : 1. 300us Pulse Width, 2% Duty Cycle.

2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.

3. Thermal Resistance Junction to Case. .

HKP1040CT

1―Pin A1

2―Pin K

3―Pin A2

TO-220

n

Tstg——Storage Temperature………………………………… －55~175℃

n

Tj——Operating Temperature…………………………………－55~150℃

n

VRRM——Peak Repetitive Reverse Voltage………………………… 40V

n

VRWM —— Working Peak Reverse Voltage…………………………40V

n

VR——DC Blocking Voltage………………………………………… 40V

n

VR(RMS) ——RMS Reverse Voltage………………………………… 28V

n

IF（AV）——Average Recified Output Current@Tc=105℃……………………Double Dies 10A

(Note 1)

……………………Single Die 5A

n

IFSM——Non-Repetitive Peak Forward Surge Current（60HZ）…………………125A
