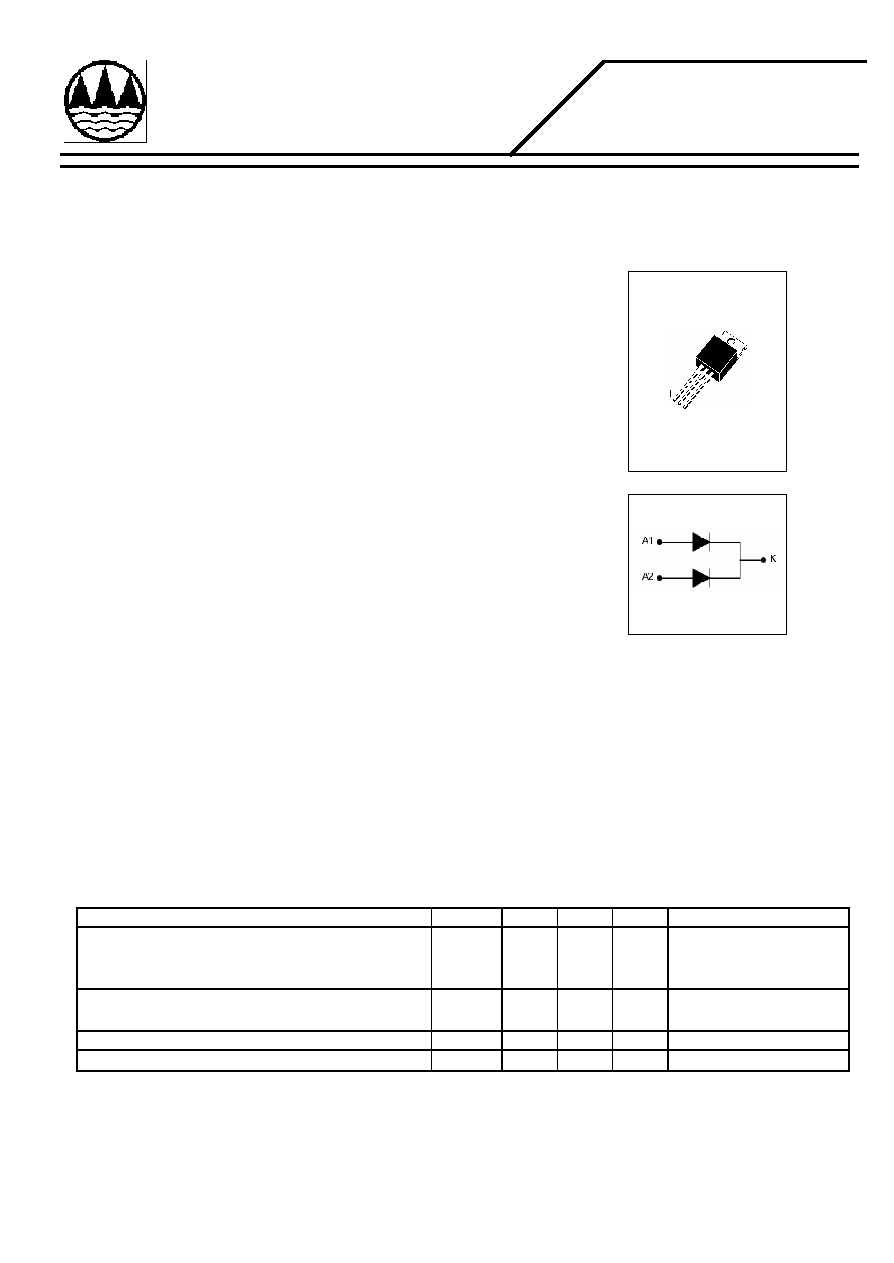

Shantou Huashan Electronic Devices Co.,Ltd.

30A SCHOTTKY BARREIER RECTIFIER

█　Features

█　Package

n

30 Amps Total (15 Amps Per Diode Leg)

n

Guard Ring Die Construction for Transient Protection

n

Low Power Loss,High Efficiency

n

High Surge Capability

n

High Current Capability and Low Forward Voltage Drop

n

For Use in Low Voltage,High Frequency Inverters,Free Wheelings

,and Polarity Protection Applications

█　Maximum Ratings

█　Electrical Chatacteristics @T

a=25℃　 unless otherwise specified

Single phase,half wave,60Hz,resistive or inductive load.

For capacitive load,derate current by 20%.

Characteristic

Symbol

Min

Max

Unit

Condition

Forward Voltage Drop (Note 1)

VFM

0.7

0.84

0.72

V

IF=15A,TC=25℃

IF=30A,TC=25℃

IF=30A,TC=125℃

Peak Reverse Current

at Rated DC Blocking Voltage

IRM

0.2

60

mA

VR = VRRM

TC=25℃

TC=125℃

Typical Junction Capacitance(Note 2)

Cj

1000

pF

Typical Thermal Resistance Junction to Case(Note 3)

Rth-j

2.0

℃/W

Notes: 1. Pulse Test: Pulse Width = 300 ms, Duty Cycle 2.0%.

2. Measured at 1.0 MHz and Applied Reverse Voltage of 4.0V DC

.

3. Thermal resistance junction to case mounted on heatsink.

.

HKP3040CT

1―Pin A1

2―Pin K

3―Pin A2

TO-220

n

Tstg——Storage Temperature…………………………………… －55~150℃

n

Tj——Operating Temperature………………………………… －55~150℃

n

VRRM——Peak Repetitive Reverse Voltage……………………………40V

n

VRWM ——Working Peak Reverse Voltage……………………………40V

n

VR——DC Blocking Voltage……………………………………………40V

n

VR(RMS) ——RMS Reverse Voltage……………………………………28V

n

IF（AV）——Average Recified Output Current@Tc=95℃………………………Double Dies 30A

(Note 1)

………………………Single Die 15A

n

IFSM——Non-Repetitive Peak Forward Surge Current

（60HZ）……………………………200A
