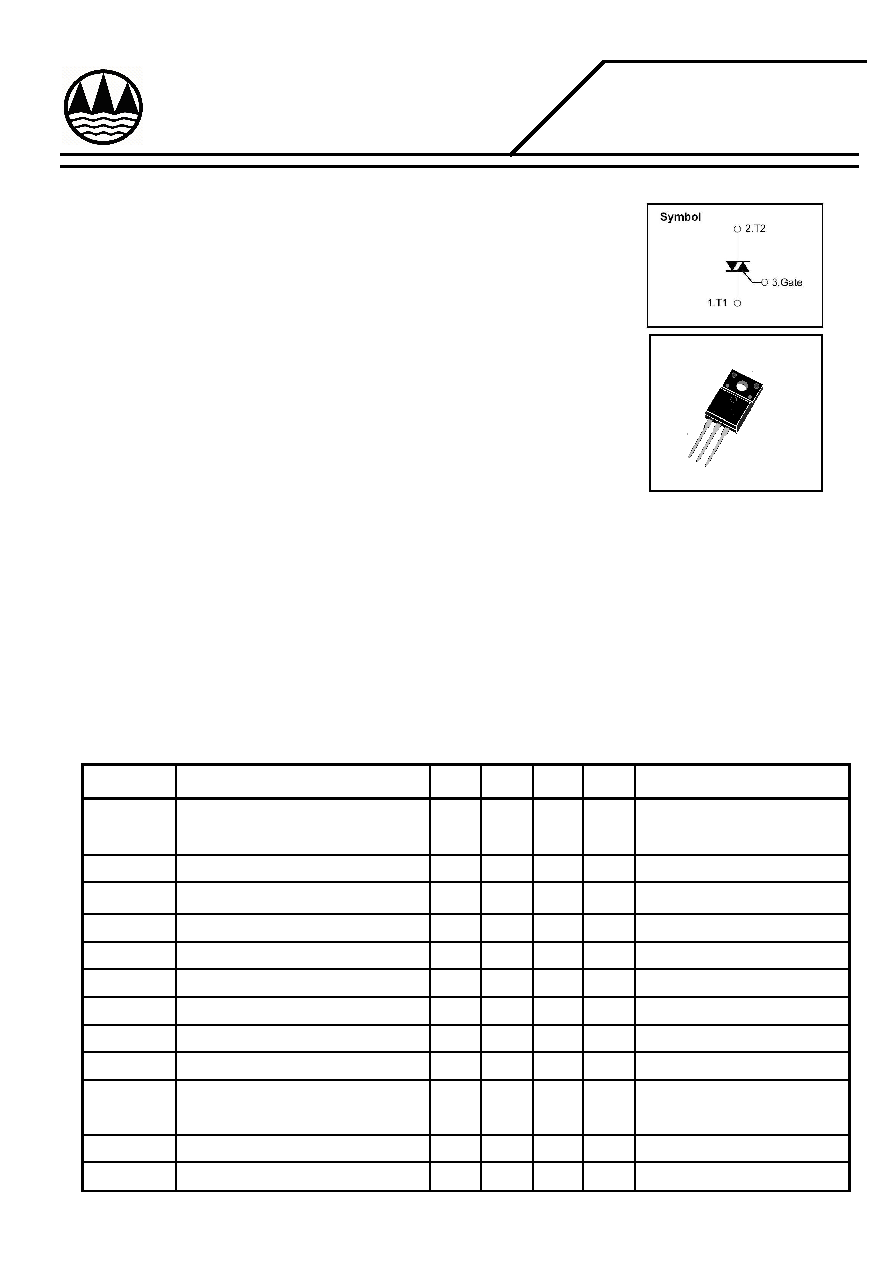

Shantou Huashan Electronic Devices Co.,Ltd.

ＮＯＮ　ＩＮＳＵＬＡＴＥＤ　ＴＹＰＥ　ＴＲＩＡＣ　（ＴＯ－２２０Ｆ　ＰＡＣＫＡＧＥ）　

█　Features

* Repetitive Peak Off-State Voltage: 800V

* R.M.S On-state Current(IT(RMS)=8A)

* High Commutation dv/dt 　

█　General Description

The Triac HTP8A80 is suitable for AC switching application, phase

control application such as heater control, motor control, lighting control,

and static switching relay.

█ Absolute Maximum Ratings（T

a=25℃）　　　　　　　　　　　　　　　　　

█ Electrical Characteristics（T

a=25℃）

Symbol

Items

Min.

Typ.

Max.

Unit

Conditions

IDRM

Repetitive Peak Off-State Current

2.0

mA

VD=VDRM, Single Phase,Half

Wave, TJ=125℃

VTM

Peak On-State Voltage

1.4

V

IT=12A, Inst. Measurement

I+GT1

Gate Trigger Current（Ⅰ）

30

mA

VD=6V, RL=10 ohm

I- GT1

Gate Trigger Current（Ⅱ）

30

mA

VD=6V, RL=10 ohm

I-GT3

Gate Trigger Current（Ⅲ）

30

mA

VD=6V, RL=10 ohm

V+ GT1

Gate Trigger Voltage（Ⅰ）

1.5

V

VD=6V, RL=10 ohm

V- GT1

Gate Trigger Voltage（Ⅱ）

1.5

V

VD=6V, RL=10 ohm

V- GT3

Gate Trigger Voltage（Ⅲ）

1.5

V

VD=6V, RL=10 ohm

VGD

Non-Trigger Gate Voltage

0.2

V

TJ=125℃,VD=1/2VDRM

(dv/dt)c

Critical Rate of Rise of Off-State

Voltage at Commutation

10

V/µS

TJ=125℃,VD=400V

(di/dt)c=-4A/ms

IH

Holding Current

15

mA

Rth(j-c)

Thermal Resistance

3.7

℃/W Junction to case

Tstg——Storage Temperature……………………………………………………………… －40~125℃

Tj ——Operating Junction Temperature …………………………………………………… －40~125℃　

PGM——Peak Gate Power Dissipation………………………………………………………………… 5W

VDRM——Repetitive Peak Off-State Voltage………………………………………………………… 800V

IT（RMS）——R.M.S On-State Current（Ta=105℃）………………………………………………… 8A

VGM——Peak Gate Voltage ………………………………………………………………… 10V

I GM—— Peak Gate Current …………………………………………………………… 2.0A

ITSM——Surge On-State Current (One Cycle, 50/60Hz,Peak,Non-Repetitive)………… 80/88A

HTF8A80

1 2

3

TO-220F
