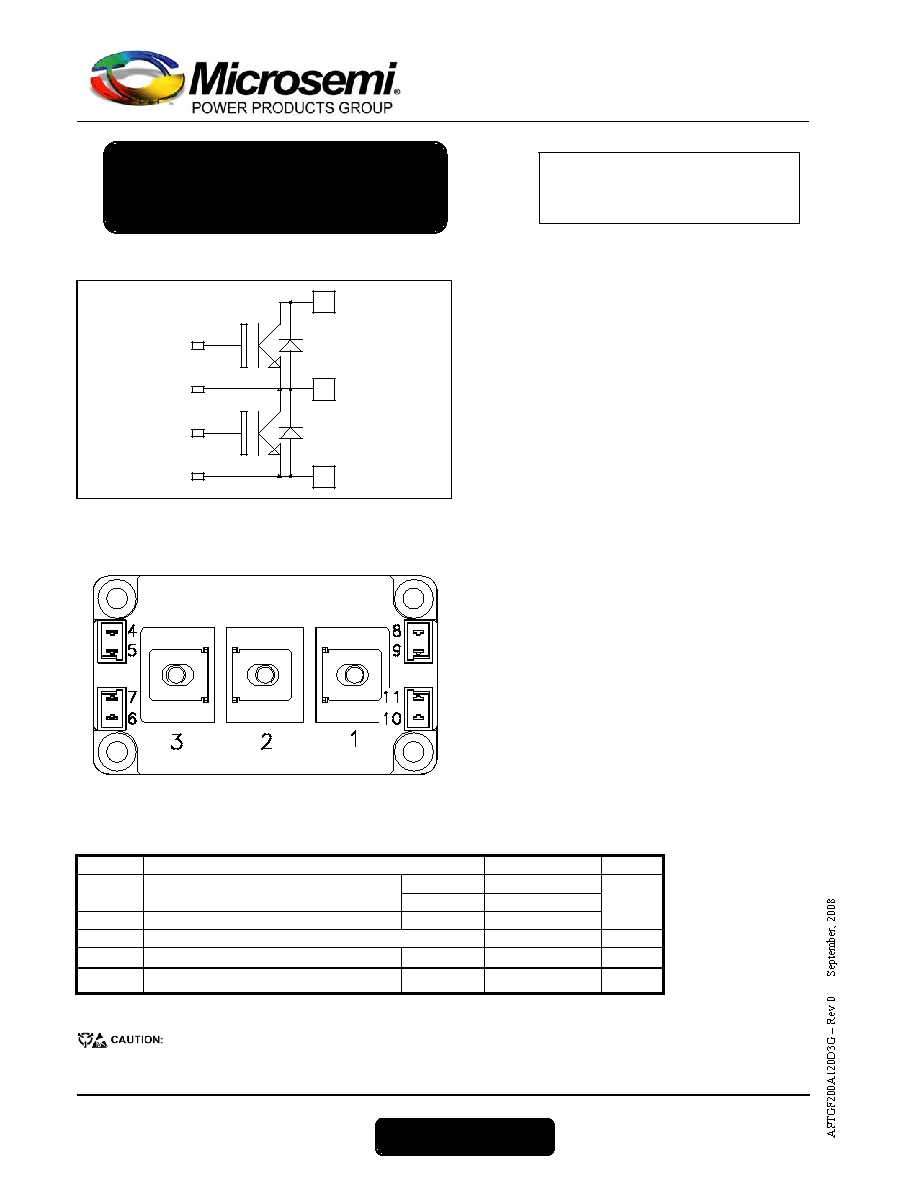

1 / 5 page  APTGF200A120D3G www.microsemi.com 1- 5 Absolute maximum ratings Symbol Parameter Max ratings Unit VCES Collector - Emitter Breakdown Voltage 1200 V TC = 25°C 300 IC Continuous Collector Current TC = 80°C 200 ICM Pulsed Collector Current TC = 25°C 400 A VGE Gate – Emitter Voltage ±20 V PD Maximum Power Dissipation TC = 25°C 1400 W RBSOA Reverse Bias Safe Operating Area Tj = 125°C 400A@1150V These Devices are sensitive to Electrostatic Discharge. Proper Handling Procedures Should Be Followed. See application note APT0502 on www.microsemi.com 2 1 3 5 Q2 7 6 Q1 4 VCES = 1200V IC = 200A @ Tc = 80°C Application • Welding converters • Switched Mode Power Supplies • Uninterruptible Power Supplies • Motor control Features • Non Punch Through (NPT) FAST IGBT - Low voltage drop - Low tail current - Switching frequency up to 50 kHz - Soft recovery parallel diodes - Low diode VF - Low leakage current - RBSOA and SCSOA rated • Kelvin emitter for easy drive • High level of integration • M6 power connectors Benefits • Stable temperature behavior • Very rugged • Direct mounting to heatsink (isolated package) • Low junction to case thermal resistance • Easy paralleling due to positive TC of VCEsat • RoHS Compliant Phase leg NPT IGBT Power Module |
