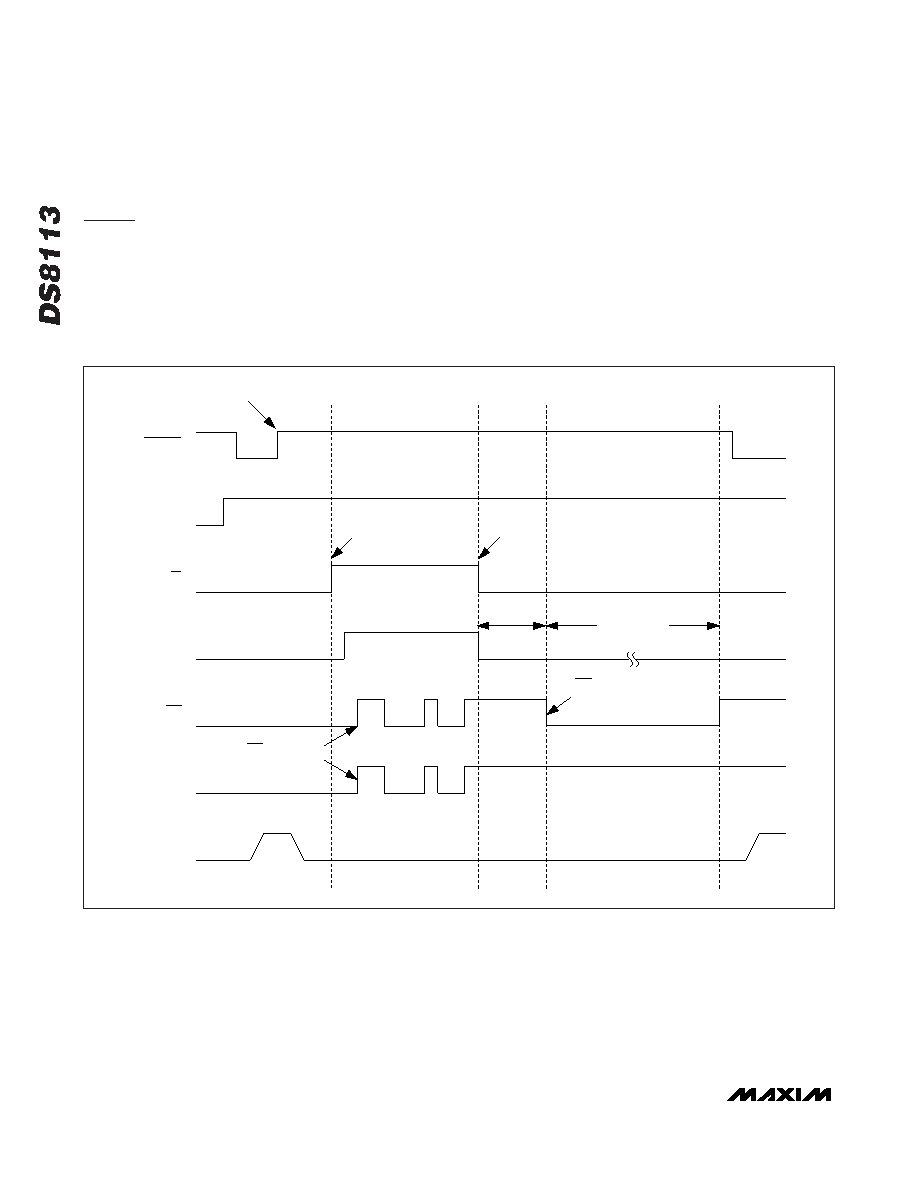

14 / 17 page ![]() Stop Mode (Low-Power Mode) A low-power state, stop mode, can be entered by forc- ing the CMDVCC, 5V/3V, and 1_8V input pins to a logic-high state. Stop mode can only be entered when the smart card interface is inactive. In stop mode all internal analog circuits are disabled. The OFF pin fol- lows the status of the PRES pin. To exit stop mode, change the state of one or more of the three control pins to a logic-low. An internal 220µs (typ) power-up delay and the 8ms PRES debounce delay are in effect and OFF is asserted to allow the internal circuitry to sta- bilize. This prevents smart card access from occurring after leaving the stop mode. Figure 8 shows the control sequence for entering and exiting stop mode. Note that an in-progress deactivation sequence always finishes before the DS8113 enters low-power stop mode. Smart Card Interface 14 ______________________________________________________________________________________ CMDVCC 1_8V 5V/3V STOP MODE OFF PRES VCC DEACTIVATE INTERFACE ACTIVATE STOP MODE DEACTIVATE STOP MODE 220 μs DELAY OFF FOLLOWS PRES IN STOP MODE OFF ASSERTED TO WAIT FOR DELAY 8ms DEBOUNCE Figure 8. Stop-Mode Sequence |
|
|
