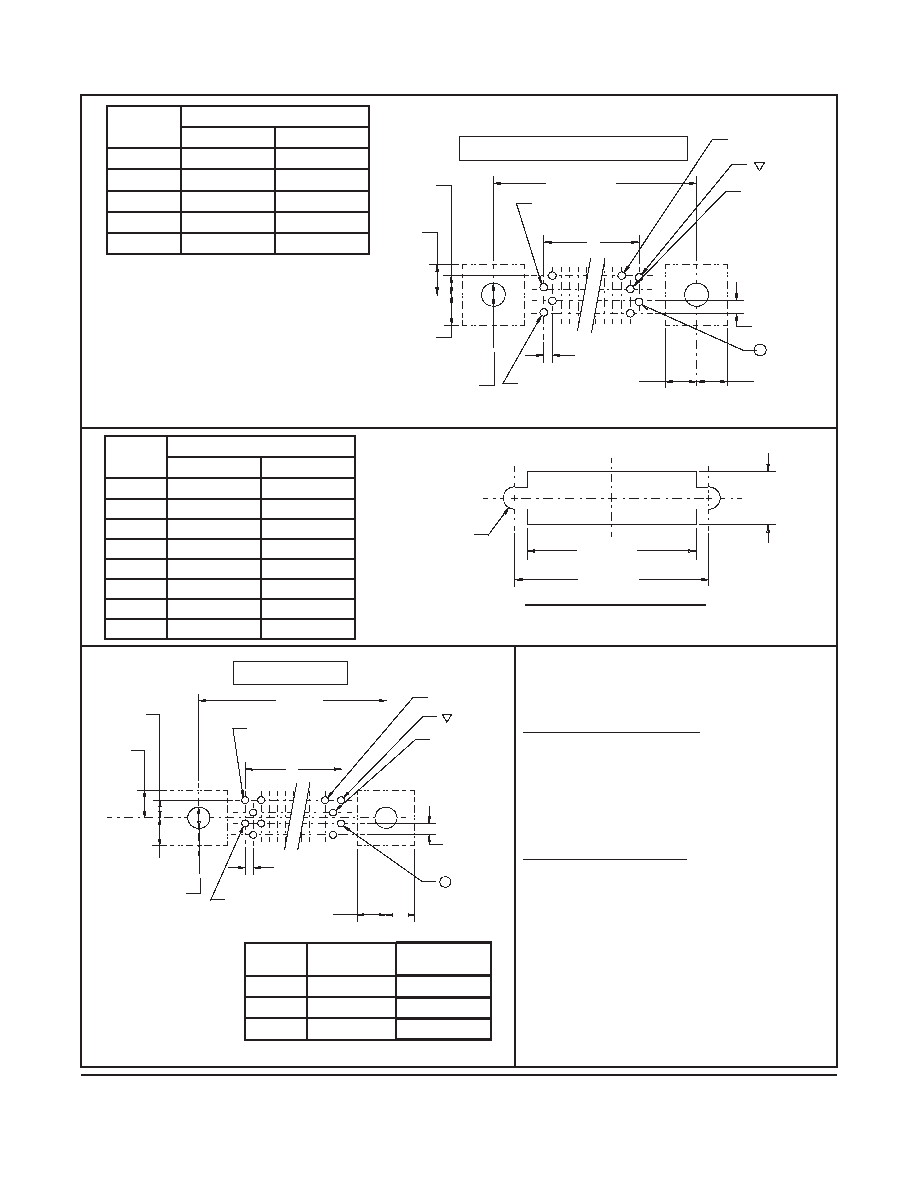

3 / 6 page ![]() 3 Electronic Solutions Division Interconnect Solutions http://www.3M.com/interconnects/ 3M is a trademark of 3M Company. For technical, sales or ordering information call 800-225-5373 3M™ Mini D Ribbon (MDR) Connectors .050” Boardmount Compliant Pin Vertical Receptacle - Shielded 102 Series TS-0961-C Sheet 3 of 3 Contact Quantity Dimension A B 20 .450 [ 11.43 ] .931 [ 23.64 ] 36 .850 [ 21.59 ] 1.481 [ 37.61 ] 40 .950 [ 24.13 ] 1.581 [ 40.15 ] 68 1.650 [ 41.91 ] 2.281 [ 57.93 ] 80 1.950 [ 49.53 ] 2.581 [ 65.55 ] A Hole size: See note Position 3 Position 1 Position 2 2x0.112 [ 2.86 ] .2 [ 5.0 ] 2x0.20 [ 5.0 ] Last Position .050 Typ [ 1.27 ] 2x0.20 [ 5.0 ] 2x0.16 [ 4.0 ] .075 Typ [ 1.90 ] 20, 36, 40, 68 and 80 position 2X ∅ .118 ± .003 [ 3.0 ] (See Note*) Position B ± .004 *Note: Plated-through mounting holes C ± .004 D ± .004 Note: Panel thickness .079 [ 2.00 ] Max. R .060 [ 1.52 ] .340 ± .004 [ 8.64 ] Recommended Panel Cut-Out A .20 [ 5.00 ] B ± .004 Hole size: See Notes .050 Typ [ 1.27 ] 2x0.20 [ 5.0 ] 2x0.16 [ 4.0 ] Last Position 2X ∅ .118 ± .003 [ 3.0 ] (See Note*) Position 3 Position 1 Position 2 2x0.112 [ 2.86 ] .075 Typ [ 1.90 ] 2x0.20 [ 5.0 ] Position 14, 26, 50 pos only Recommended Board Layout Viewed from Connector Side Contact Quantity Dimension C D 14 .78 [ 20.0 ] .93 [ 23.64 ] 20 .94 [ 23.9 ] 1.08 [ 27.45 ] 26 1.09 [ 27.6 ] 1.23 [ 31.26 ] 36 1.33 [ 33.9 ] 1.48 [ 37.61 ] 40 1.44 [ 36.5 ] 1.58 [ 40.15 ] 50 1.69 [ 42.8 ] 1.83 [ 46.50 ] 68 2.13 [ 54.2 ] 2.28 [ 57.93 ] 80 2.44 [ 61.9 ] 2.58 [ 65.55 ] Contact Quantity A B 14 .300 [ 7.62 ] .931 [ 23.64 ] 26 .600 [ 15.24 ] 1.231 [ 31.26 ] 50 1.200 [ 30.48 ] 1.831 [ 46.50 ] Notes: 1. Listed below are the PCB hole sizes and tolerances recommended for use with the 3M MDR Compliant Pin Vertical Receptacle. The insertion force is designed not to exceed 147N (33lbs) per pin Recommended Hole Size in Millimeters: For Copper plus Pre-Flux Coated PBC Holes Option 1 a. Drilled Dia. 0.85 +0/-0.020 mm b. Finished Dia. 0.68 to 0.79 mm c. Cu Plating 0.025 mm minimum Option 2 a. Drilled Dia 0.80 +0.025/-0.020 mm b. Finished Dia 0.68 to 0.78 mm c. Cu Plating 0.025 mm minimum For Copper and Solder Plated PCB Holes Option 1 a. Drilled Dia. 0.85 +0.03/-0.03 mm b. Finished Dia. 0.65 to 0.81 mm c. Tin Lead Plating 0.015 mm maximum Option 2 a. Drilled Dia0.80 +0.02/-0.02mm b. Finished Dia0.68 to 0.81mm c. Cu Plating0.015mm minimum 2. Board thickness: .095 ± .010 to .125 ± .010 3. Assembly Tooling: (See Ordering Information) *Note: Plated-through mounting holes |
|
|
